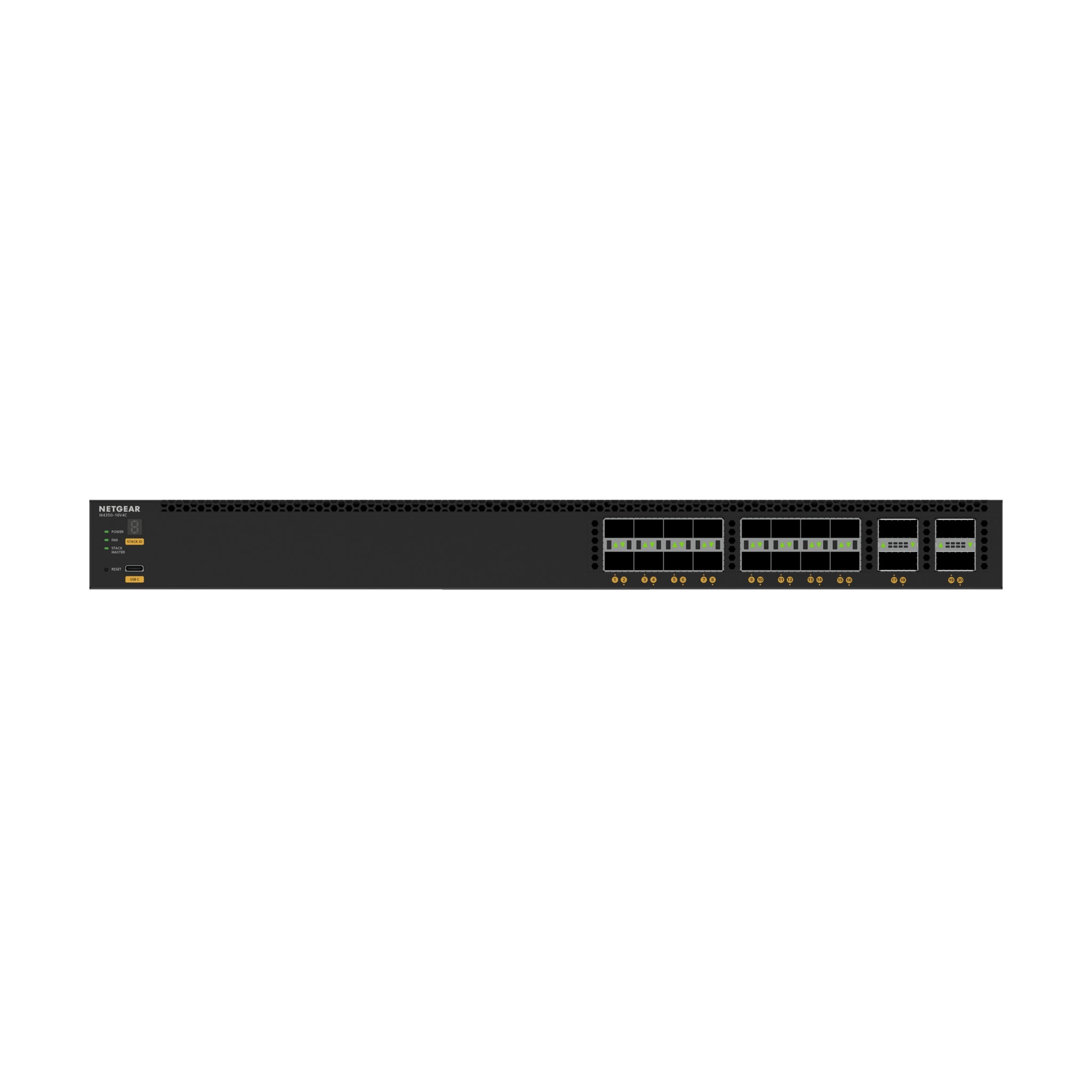

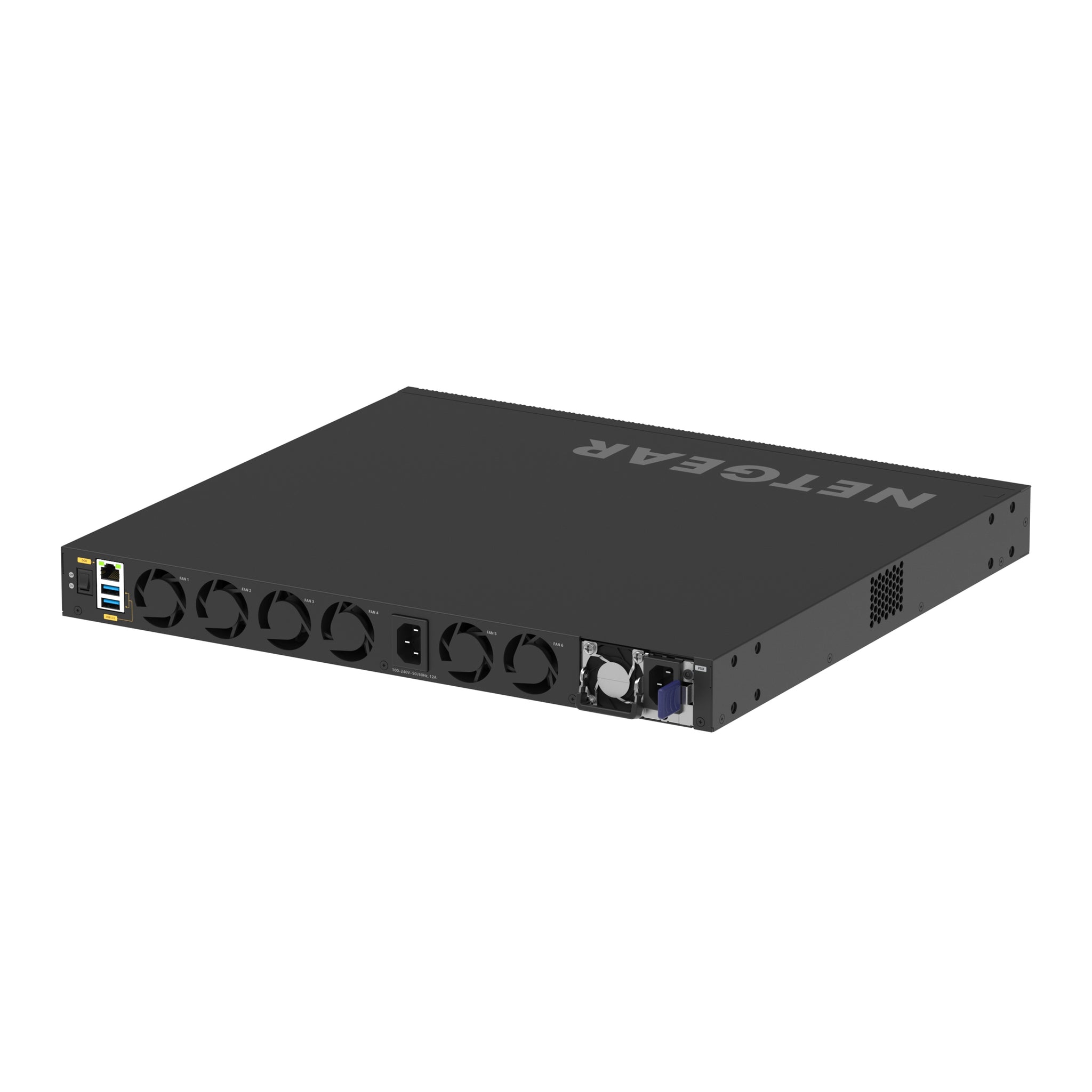

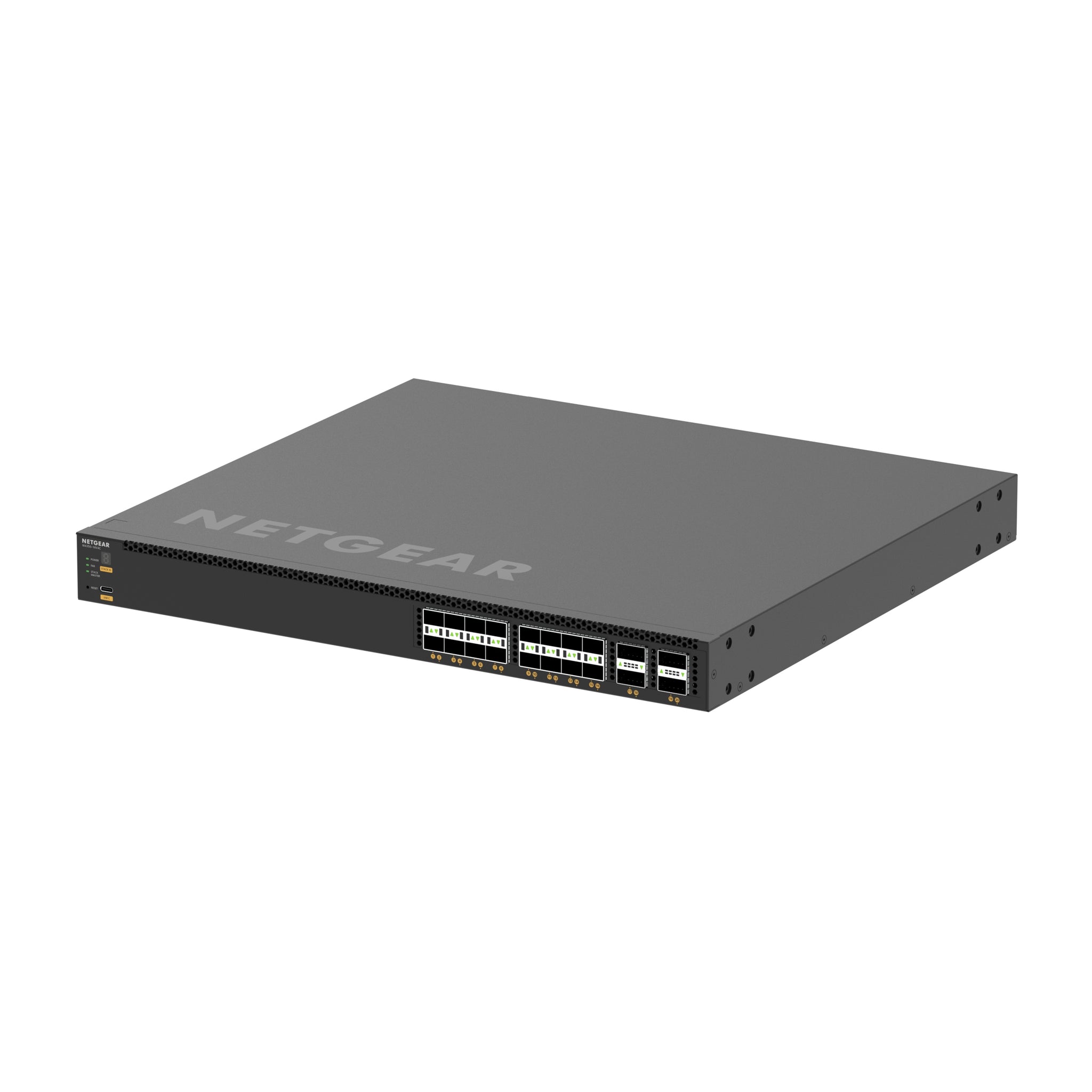

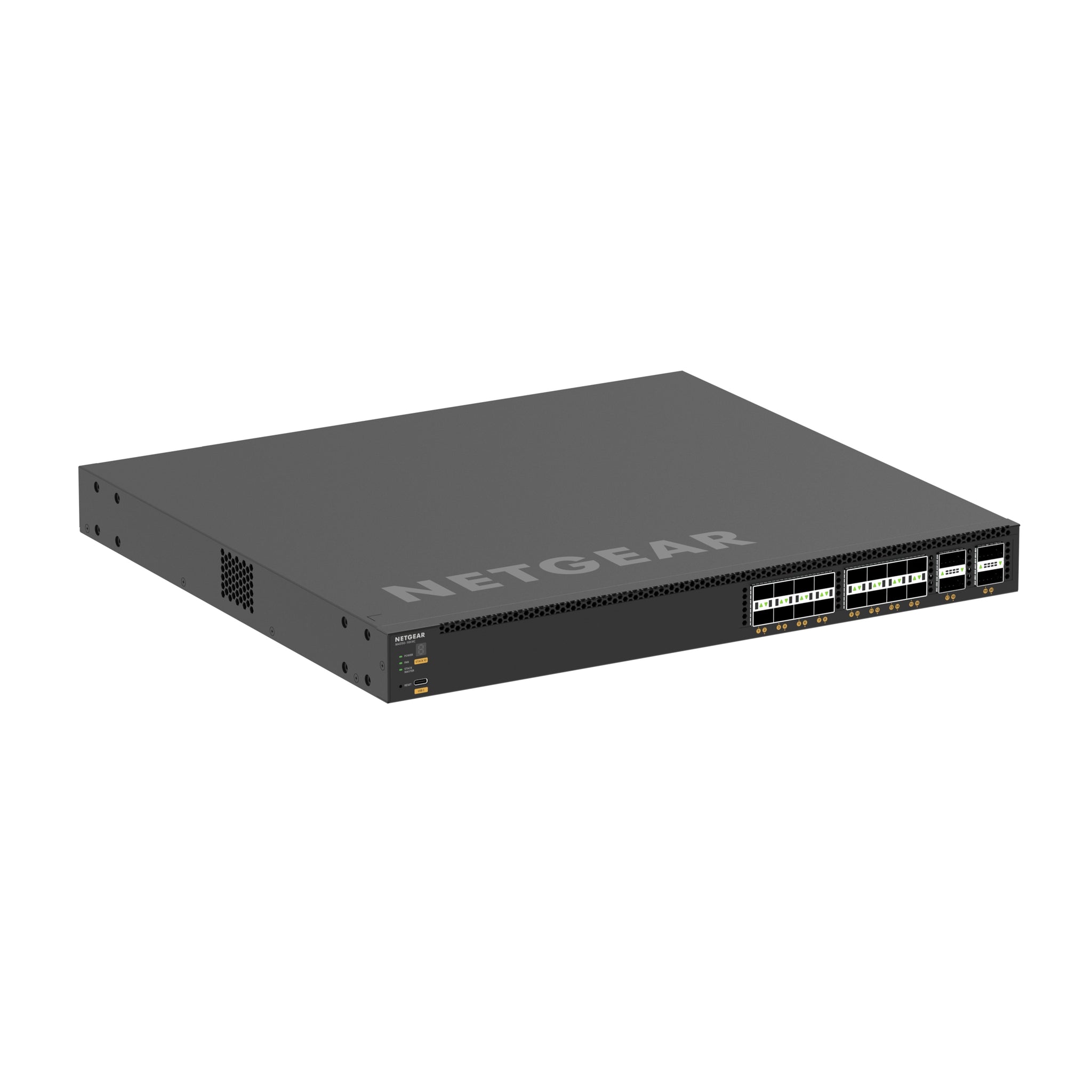

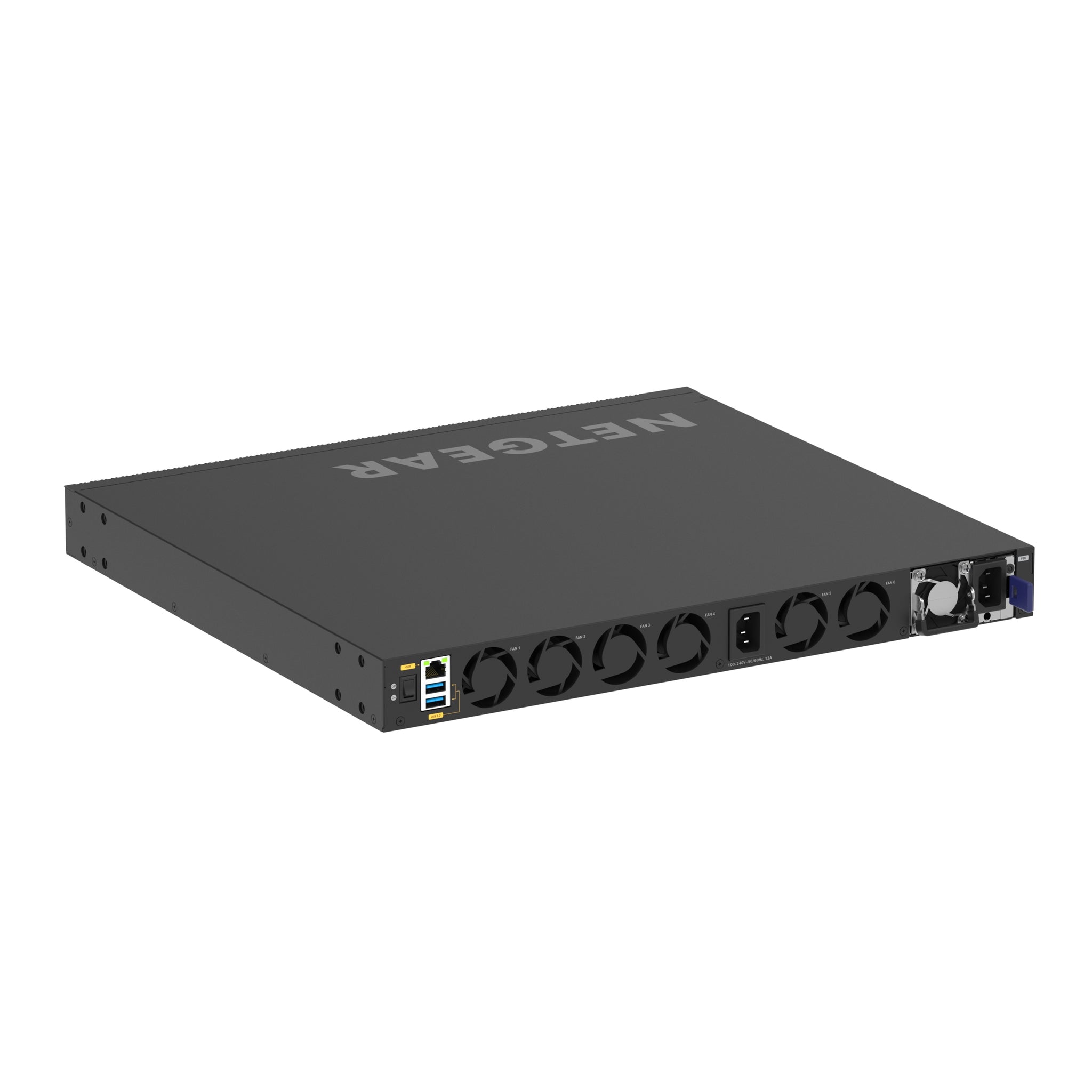

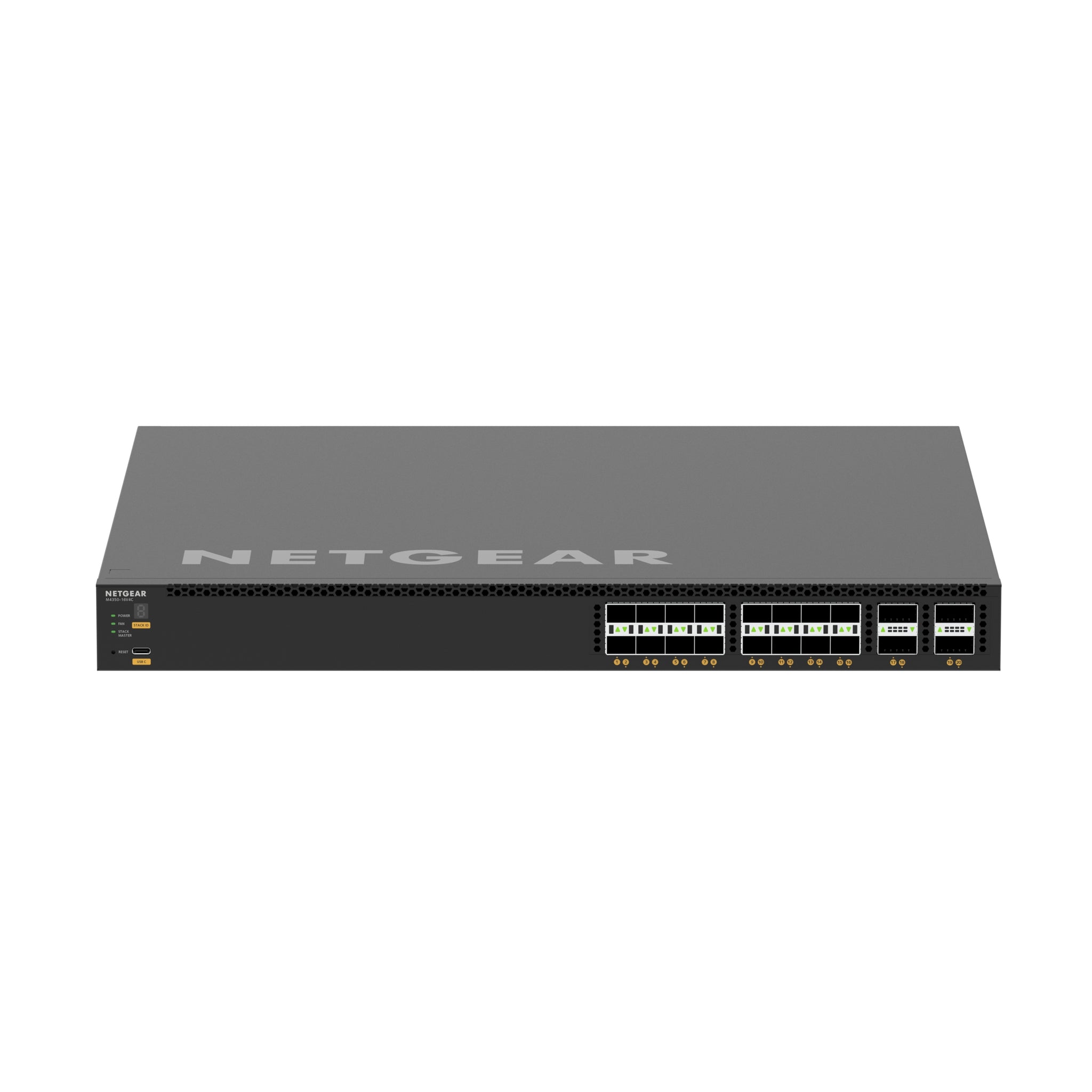

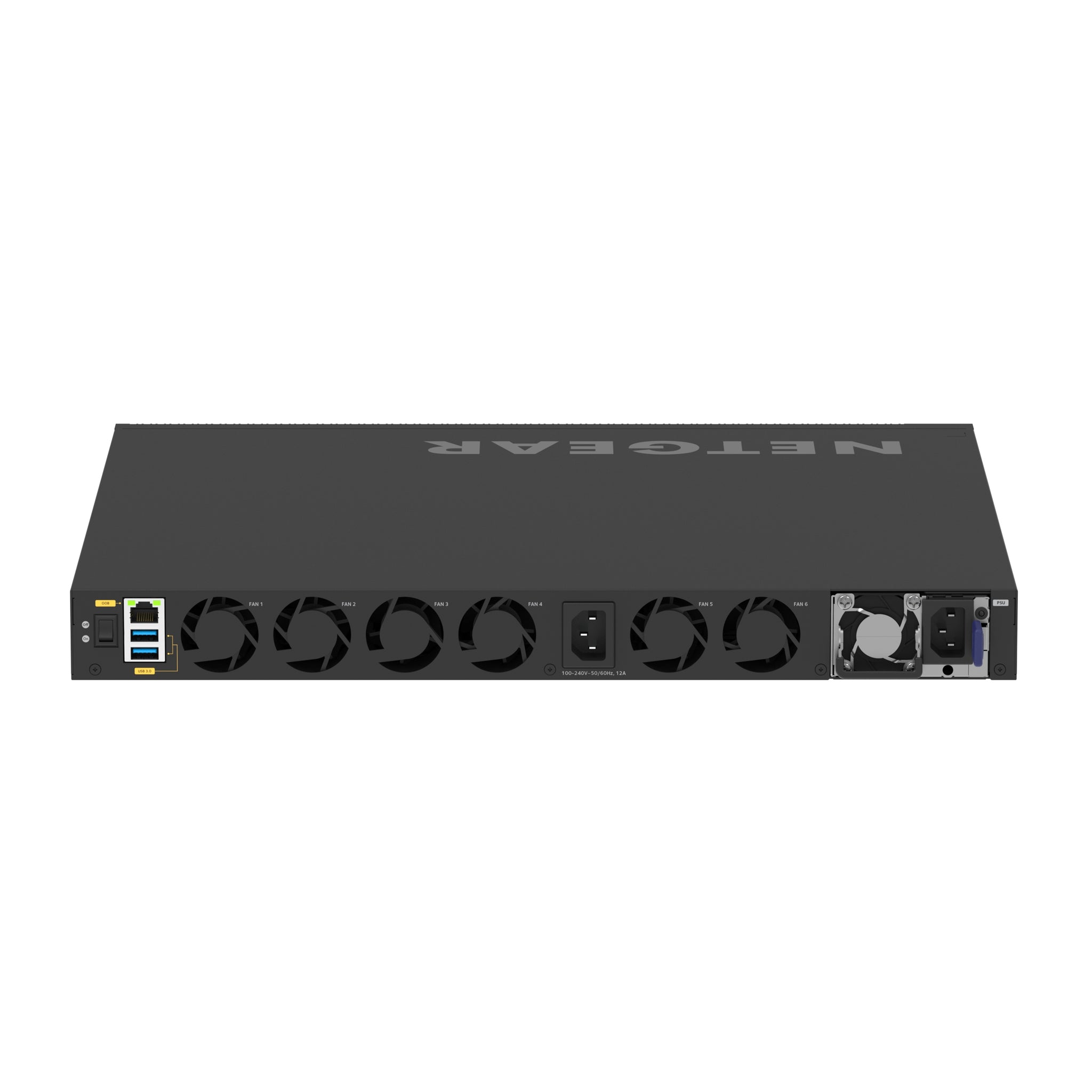

NETGEAR VSM4320C Managed L3 Black (VSM4320C100NES)
Product overview
POWER AND THROUGHPUT \nEdge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.\n\n Groundbreaking AV GUI \nA simplified user interface makes it easy to assign configuration profiles to each port.\n\n Multicast in an Instant \nNETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.\n\n Sleek, Quiet Design \nLess fan noise, and mounting ears included for rack mounting.\n\n Automatic Configuration \nAuto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.\n\n FAST, EASY CONFIGURATION FOR AV PROS \nA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.\n\n FOCUS ON THE EVENT NOT FAN NOISE \nMost models have quiet mode which greatly reduces fan noise.\n\n DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX \nWith built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Features
- 16 25GBASE-X SFP28 ports with 4 100GBASE-X QSFP28 uplinks
- 420W internal power supply
- 1 slot for modular power supply (1+1 redundancy)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | VSM4320C-100NES |
| D&H SKU | VSM4320C100NES |
| UPC / GTIN | 606449165074 |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
| MAC address table | 16000 entries |
| Switching capacity | 1600 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 256 MB |
| Latency (10 Gbps) | 2.71 µs |
| Throughput | 1190.4 Mpps |
| Product color | Black |
| Rack mounting | Yes |
| Stackable | Yes |
| Airflow direction | Front-to-back airflow |
| Built-in processor | Yes |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Internal memory | 4096 MB |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| Web-based management | Yes |
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| 6to4 tunnel | Yes |
| Policy-based routing | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Cables included | AC, USB Type-C |
| Quick start guide | Yes |
| Included power plug types | EU, UK, NA |
| Rack mount kit | Yes |
| Password protection | Yes |
| LED indicators | Yes |
| Memory type | DDR4-SDRAM |
| sFlow | Yes |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP28 ports quantity | 16 |
| QSFP28 ports quantity | 4 |
| Power consumption (typical) | 143.4 W |
| Power supply | 420 W |
| Power connector | AC-in jack |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 1800 MHz |
| Management protocols | SNMP V1, V2, V3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Loop protection | Yes |
| Access Control List (ACL) ingress | 511 |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Access Control List (ACL) egress | 1023 |
| IGMP proxy | Yes |
| Static port security | Yes |
| Root protection | Yes |
| DoS attack prevention | Yes |
| Flash memory | 512 MB |
| Width | 17.3" (440 mm) |
| Depth | 15.7" (400 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 15.8 lbs (7.15 kg) |
| Sustainability compliance | Yes |
