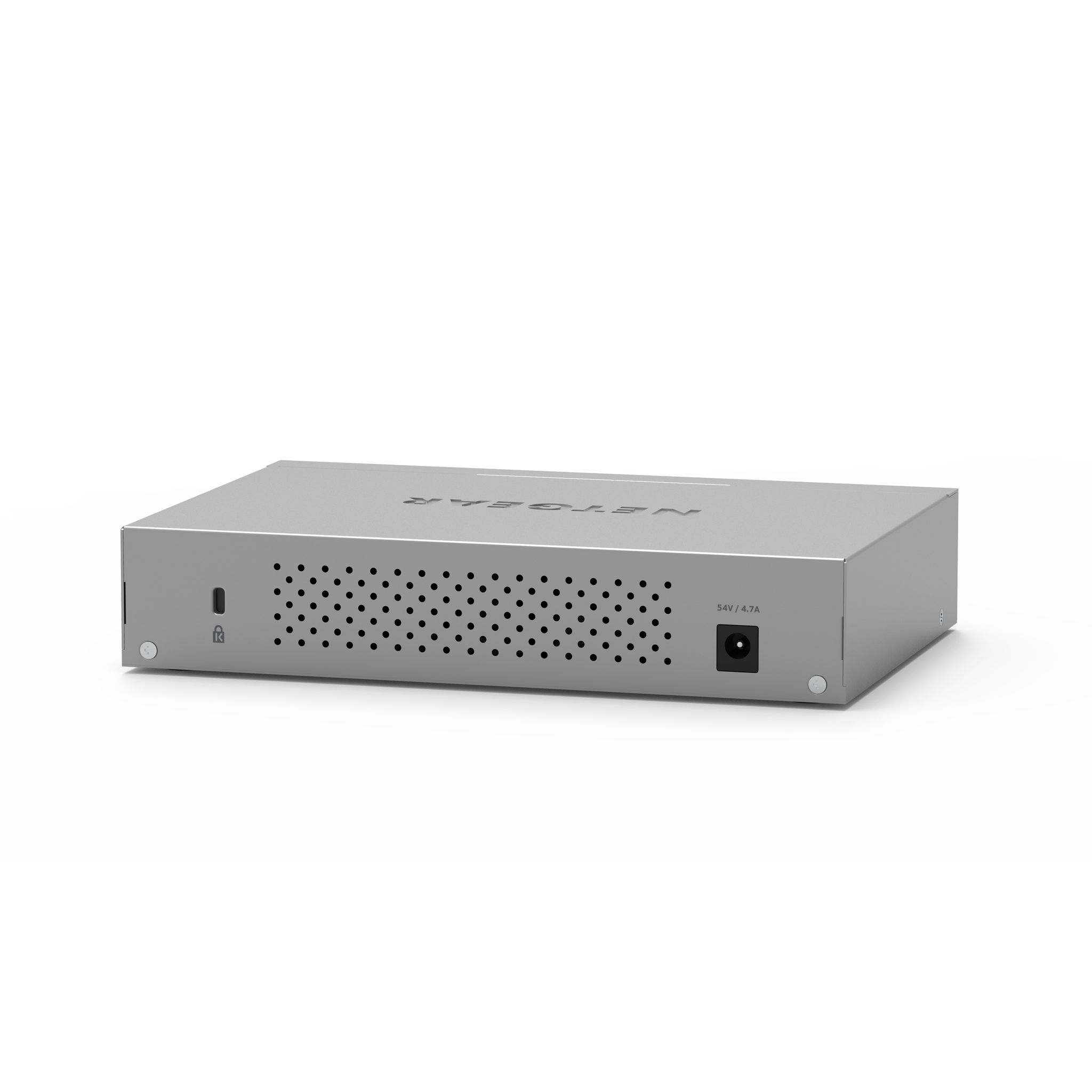

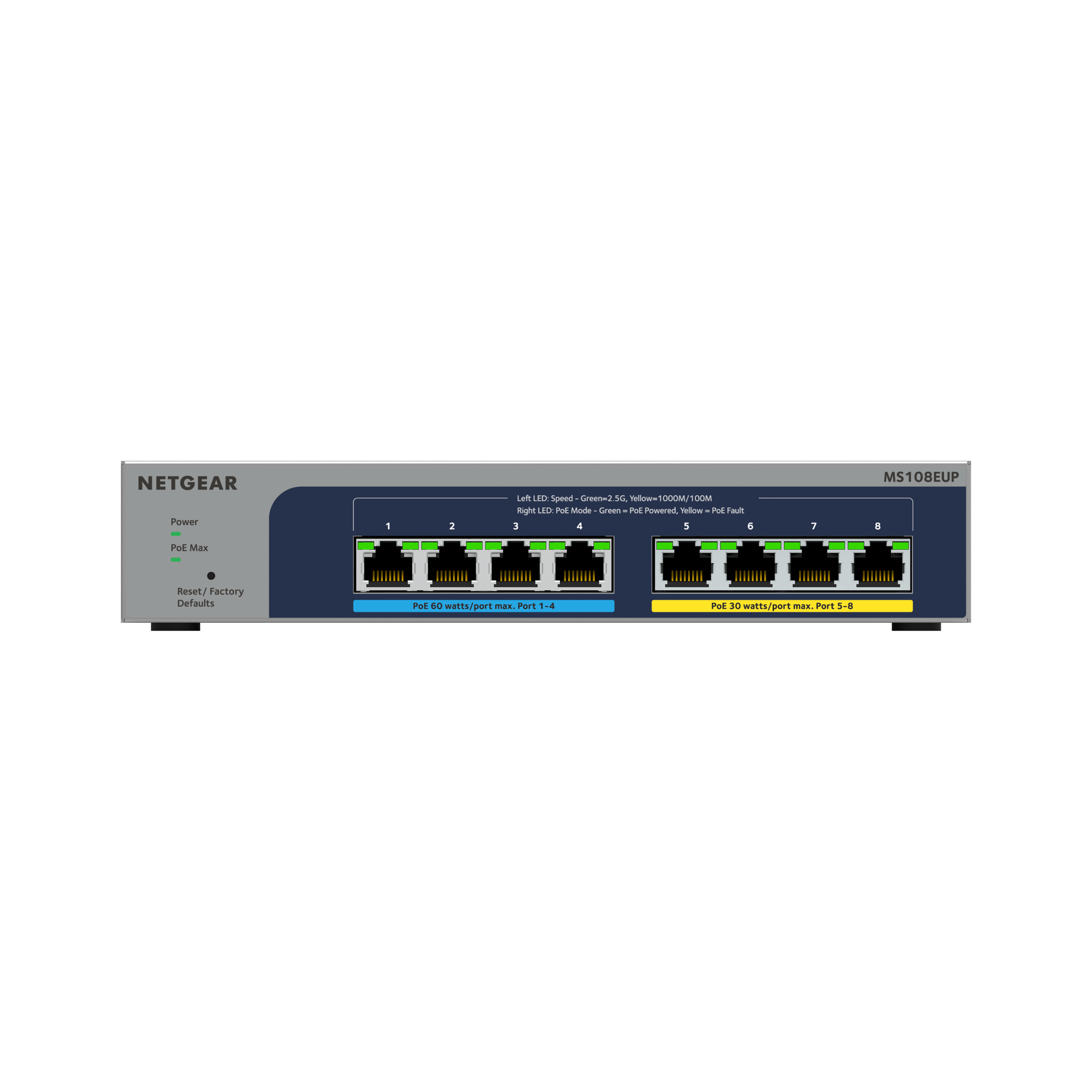

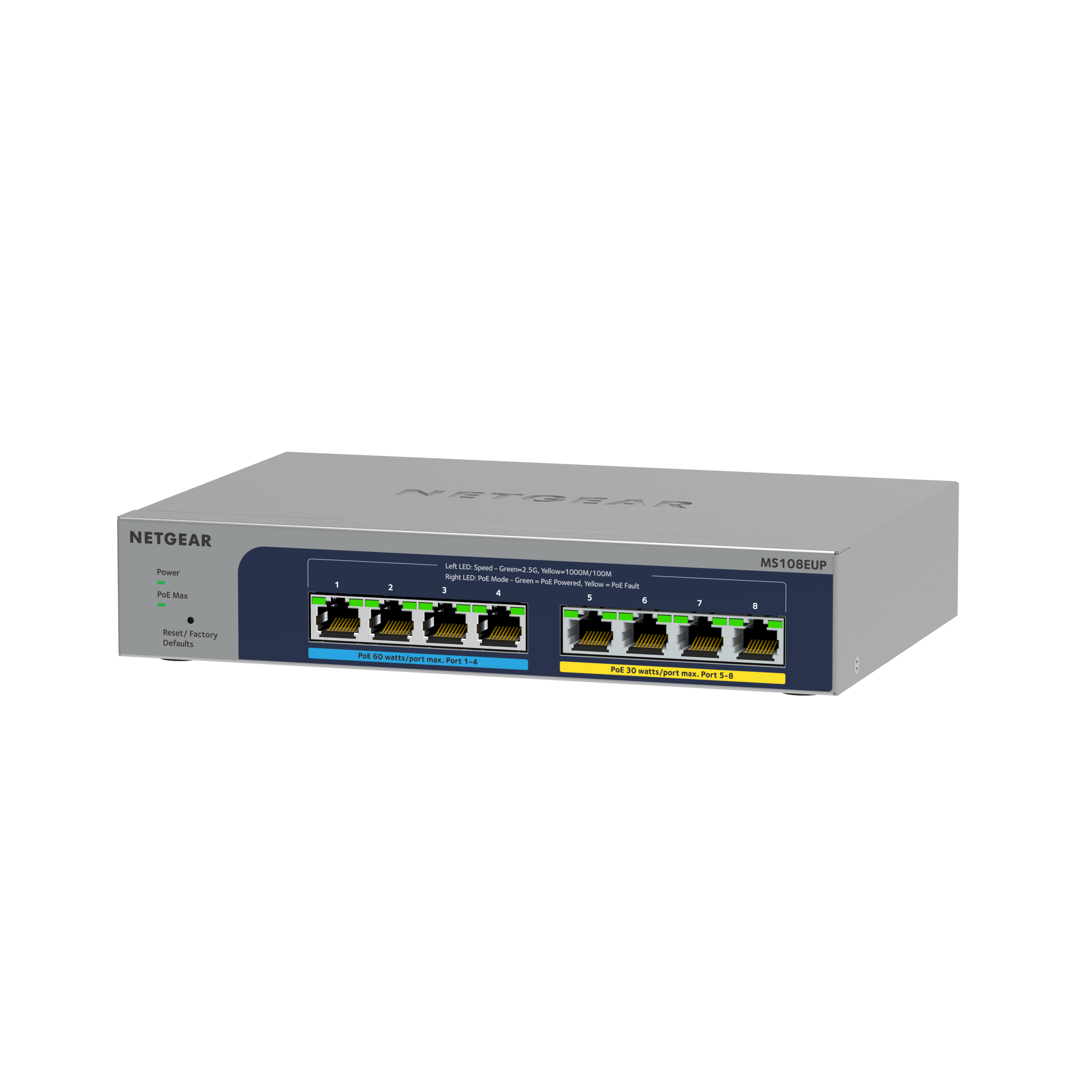

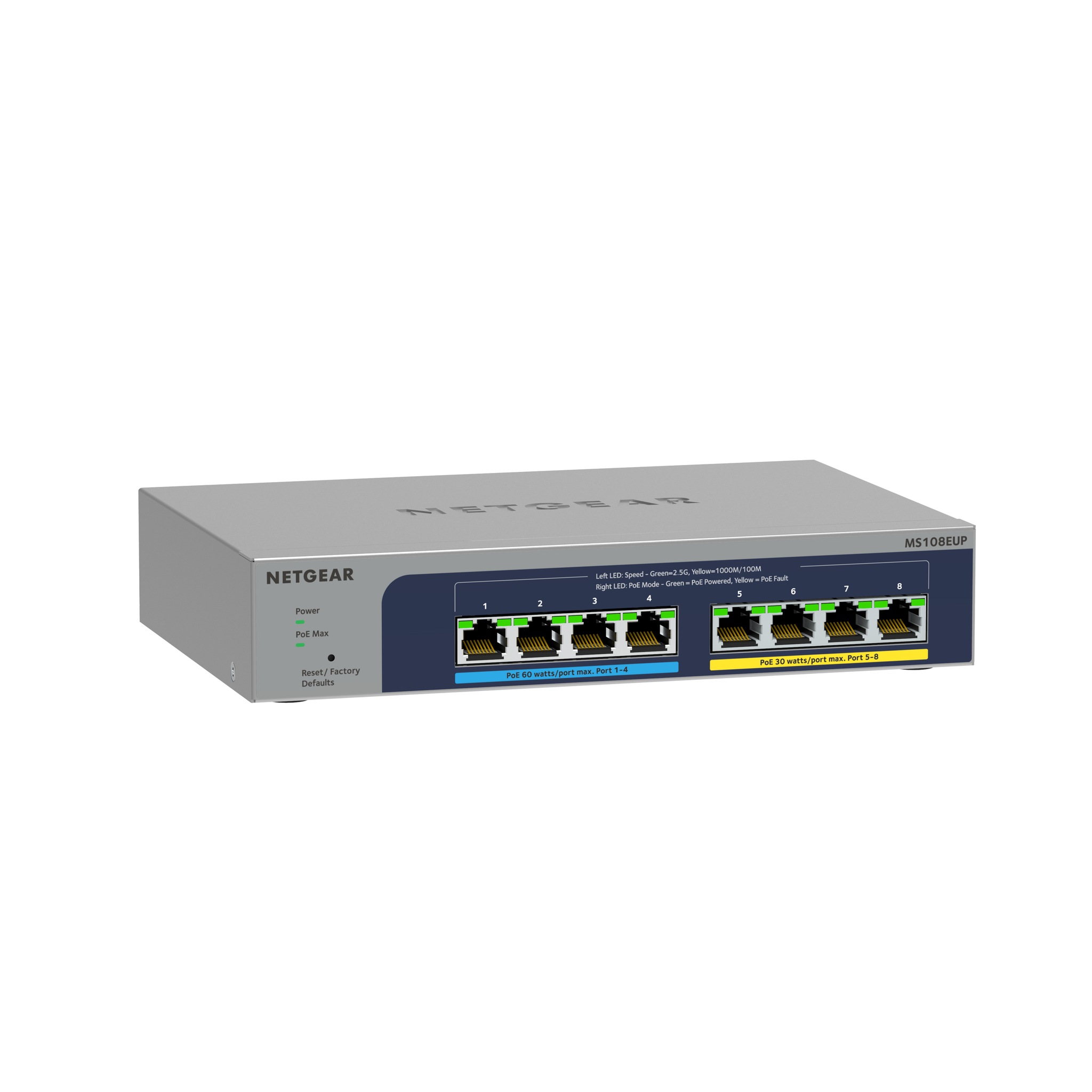

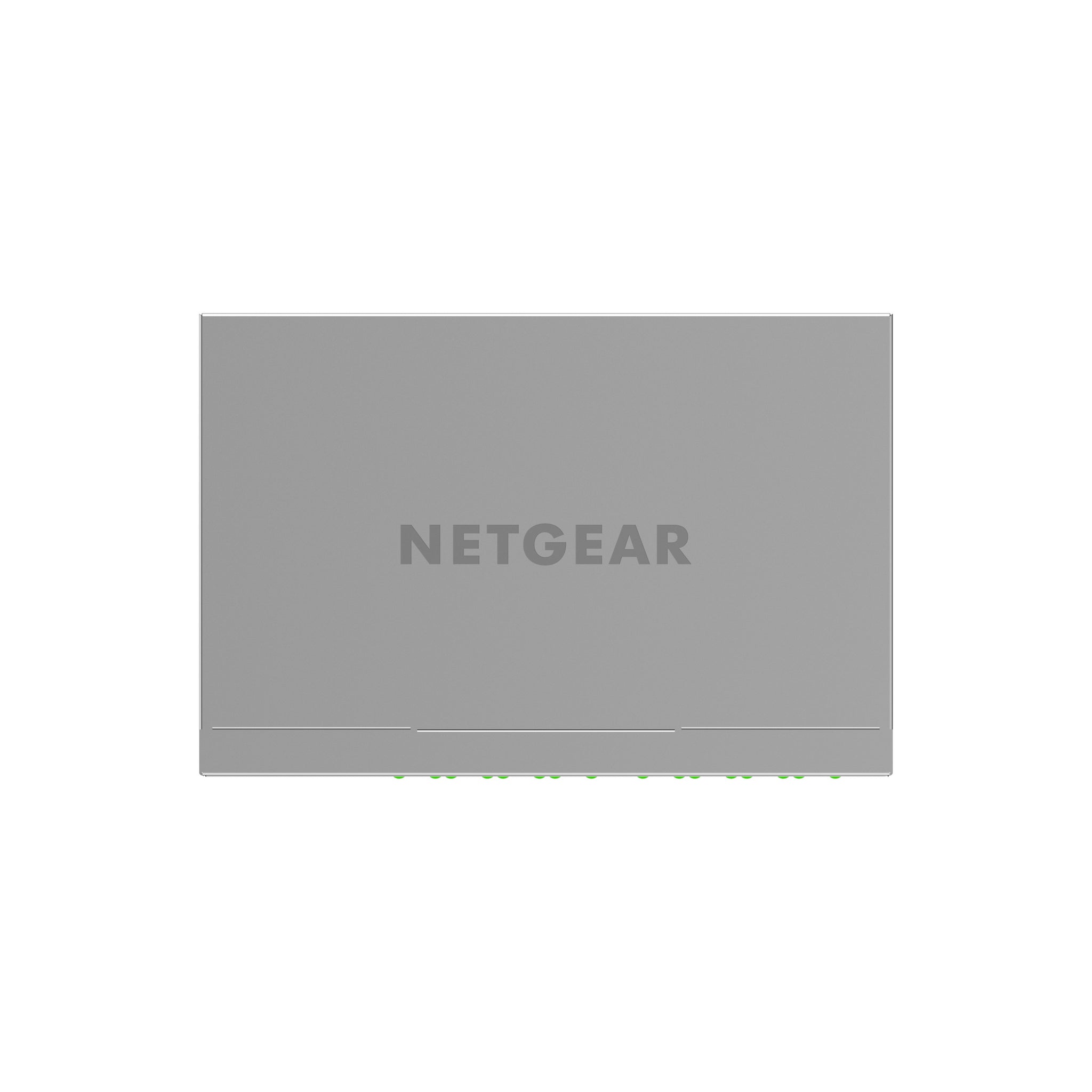

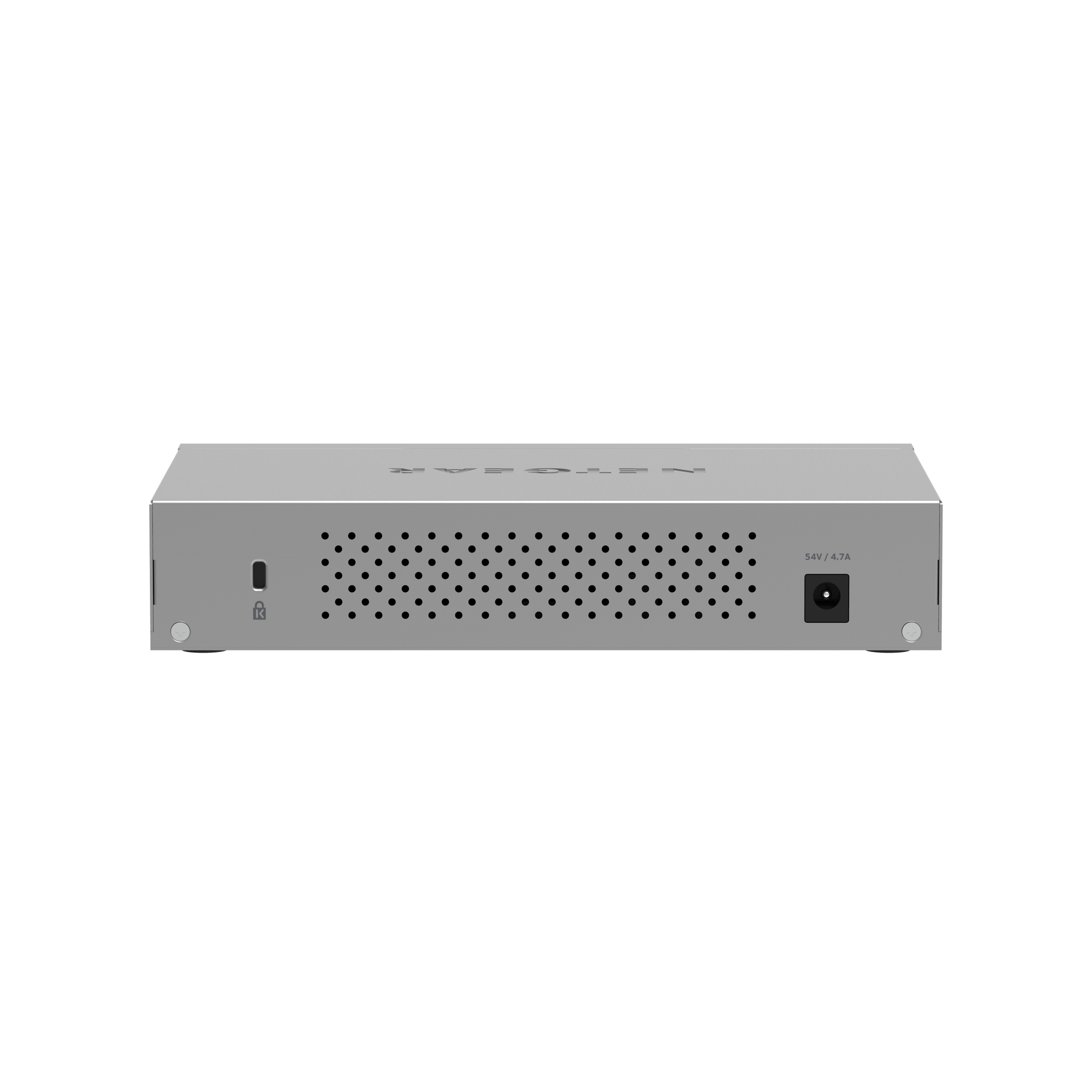

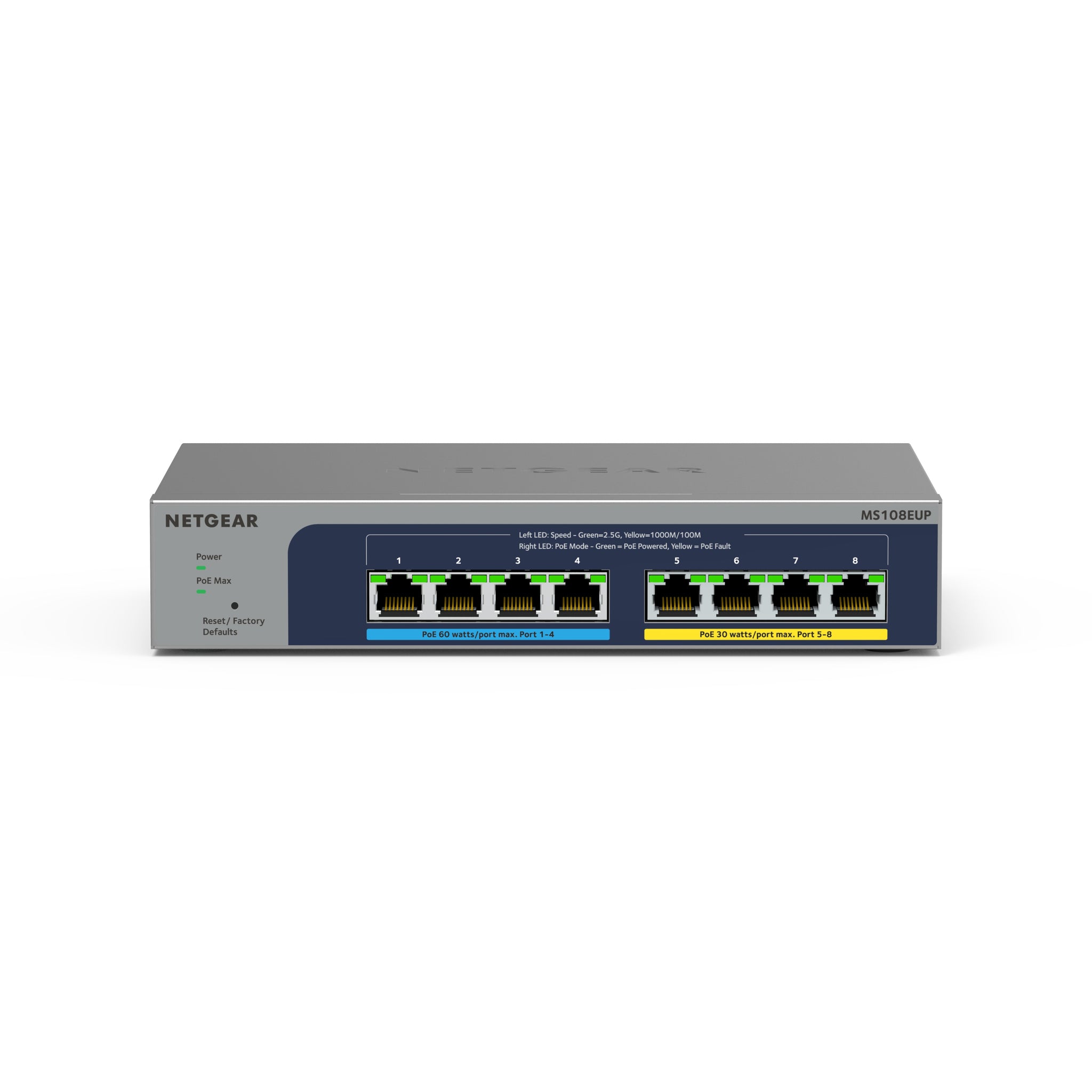

NETGEAR 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Gray (MS108EUP100NAS)
Product overview
Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.\n\nMulti-Gigabit Ethernet\n8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.\n\nPoE Support\n4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.\n\nAdvanced PoE Controls\nManage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.\n\nNon-Blocking Switching\n40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.\n\nFanless Design\nSilent operation makes this switch perfect for noise-sensitive environments.\n\nVersatile Mounting Options\nInstall your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.
Features
- 8 Multi-Gigabit 2.5G Ethernet ports
- Easy Smart management
- 4 PoE++ and 4 PoE+ ports sharing a 230W budget
- Per-port PoE controls
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | MS108EUP-100NAS |
| D&H SKU | MS108EUP100NAS |
| UPC / GTIN | 606449156942 |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
| Product color | Gray |
| Housing material | Metal |
| Rack mounting | No |
| Stackable | No |
| Mean time between failures (MTBF) | 373644 h |
| Harmonized System (HS) code | 85176990 |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 128 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Web-based management | Yes |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 64 |
| Rate limiting | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Certification | CE \nFCC 15 B\nCE/EN55032/24\nCSA\nVCCI\nACMA\nKC\nCCC\nBSMI |
| Password protection | Yes |
| LED indicators | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power source | PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Width | 8.27" (210 mm) |
| Depth | 5.51" (140 mm) |
| Height | 1.57" (40 mm) |
| Weight | 31.7 oz (900 g) |
