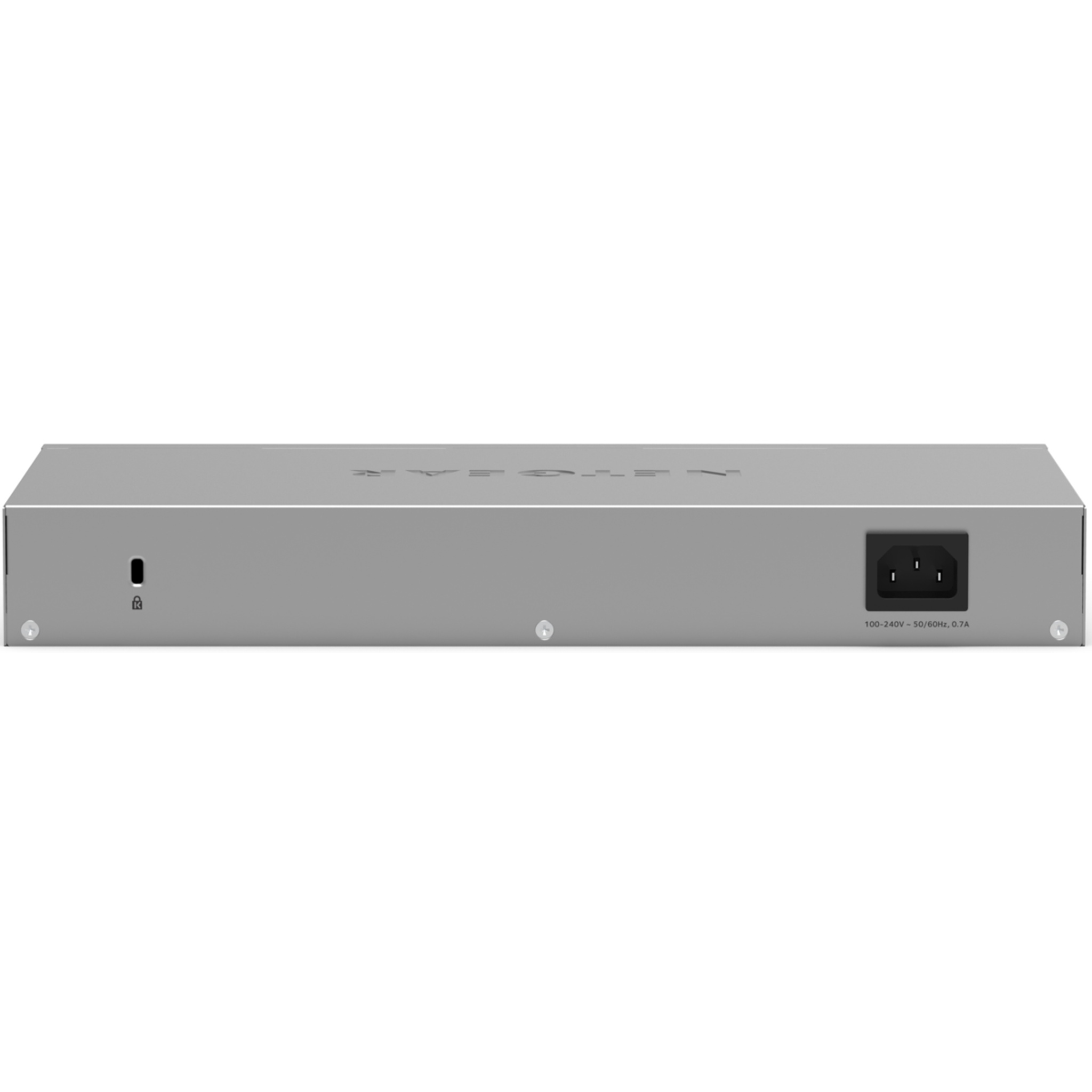

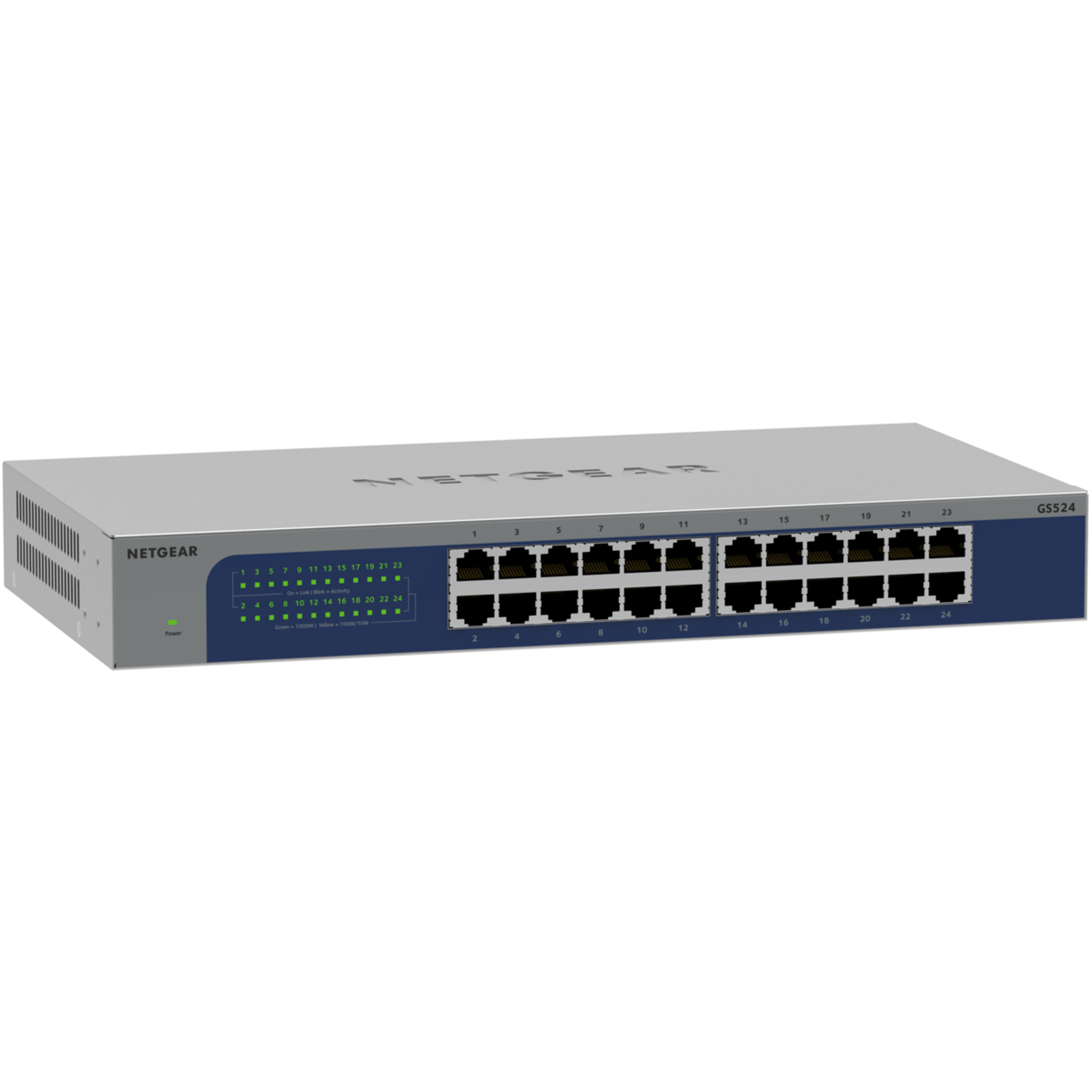

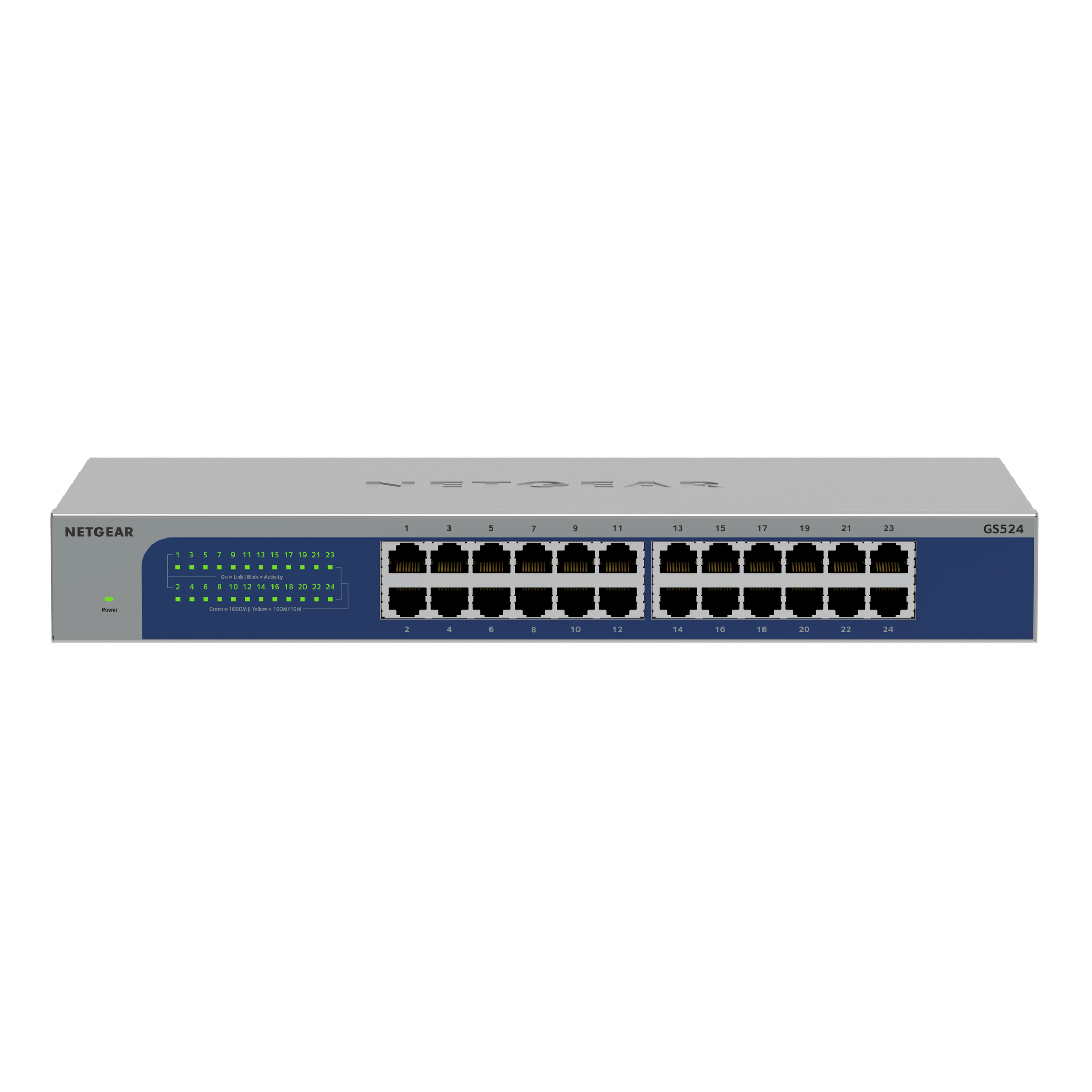

NETGEAR 24PT GIGABIT SWITCH Unmanaged Gigabit Ethernet (10/100/1000) Gray (GS524300NAS)
Product overview
Take Gigabit to the Desktop
Features
- 16 or 24 ports deliver up to 2000Mbps of dedicated, non-blocking bandwidth per port
- Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X
- Easily combine new or existing 10- 100- and 1000Mbps devices within your network
- 802.1p QoS support for prioritizing voice and video in the network
- Jumbo Frame Support up to 9KB
- Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection
- 16 or 24 switched ports provide bandwidth for PCs, servers or switches
- Auto Uplink™ automatically adjusts for straight-through or crossover cables
- Plug and play—begins working as soon as it is powered on
- Compact size for desktop, wall mount or rack mount in a standard 19-inch rack
- Secure, durable metal housing includes a Kensington locking slot for theft prevention
- Backed by a NETGEAR Limited Lifetime Warranty
- Honors TOS/802.1p prioritization
- Up to 50% lower power consumption
- Auto power-down mode saves energy when port is unused
- Auto green mode detects cable length and adjusts power usage to save energy
- Packaging manufactured with at least 80% recycled materials
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS524-300NAS |
| D&H SKU | GS524300NAS |
| UPC / GTIN | 606449164763 |
| Compliance certificates | CE, Federal Communications Commission (FCC), ISED, UKCA, VCCI |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Latency (1 Gbps) | 15 µs |
| Latency (10-100 Mbps) | 35 µs |
| Product color | Gray |
| Mean time between failures (MTBF) | 1016877 h |
| Switch type | Unmanaged |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption (max) | 12 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Switching protocols | Ethernet |
| Width | 12.9" (328 mm) |
| Depth | 6.65" (169 mm) |
| Height | 1.69" (43 mm) |
| Weight | 3.24 lbs (1.47 kg) |
