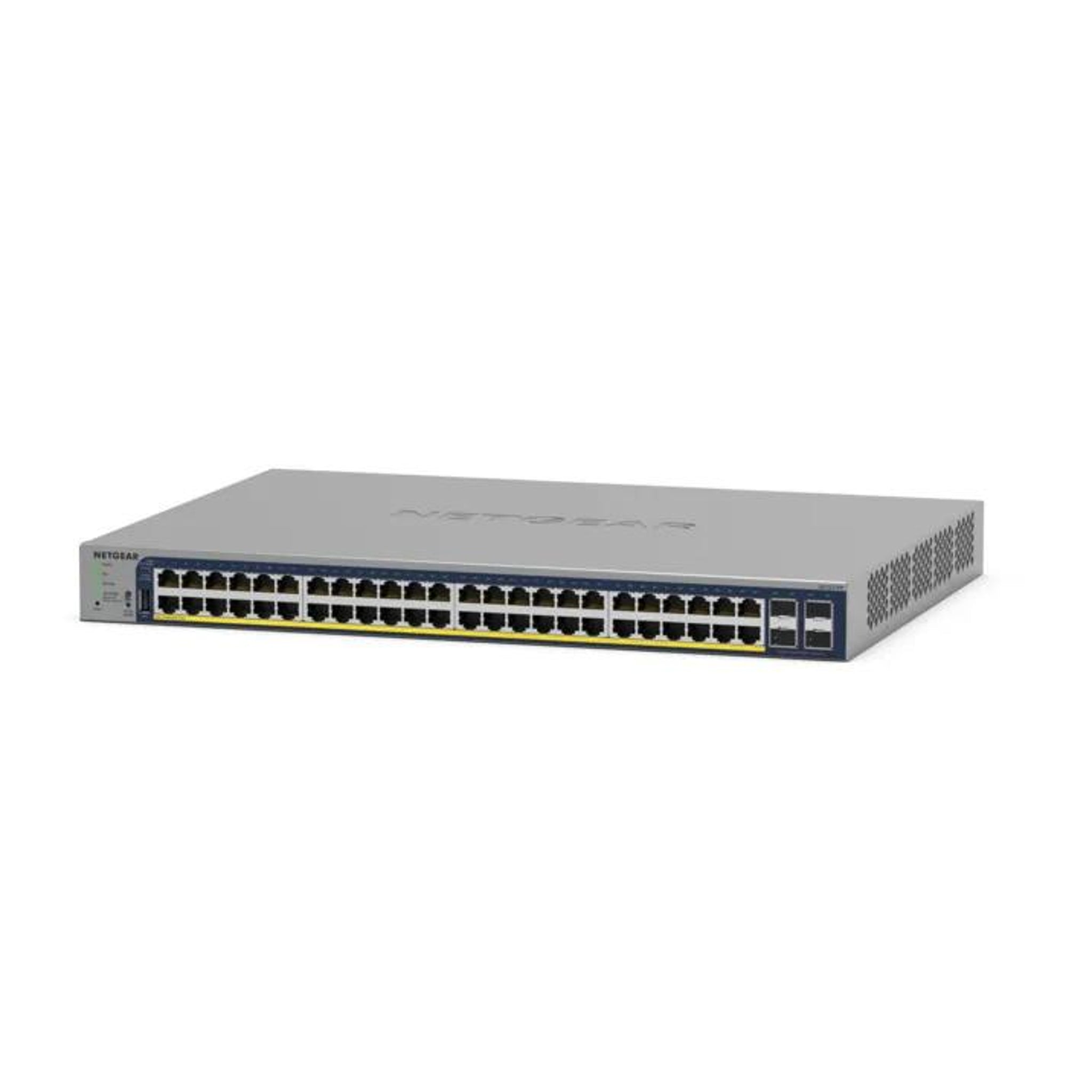

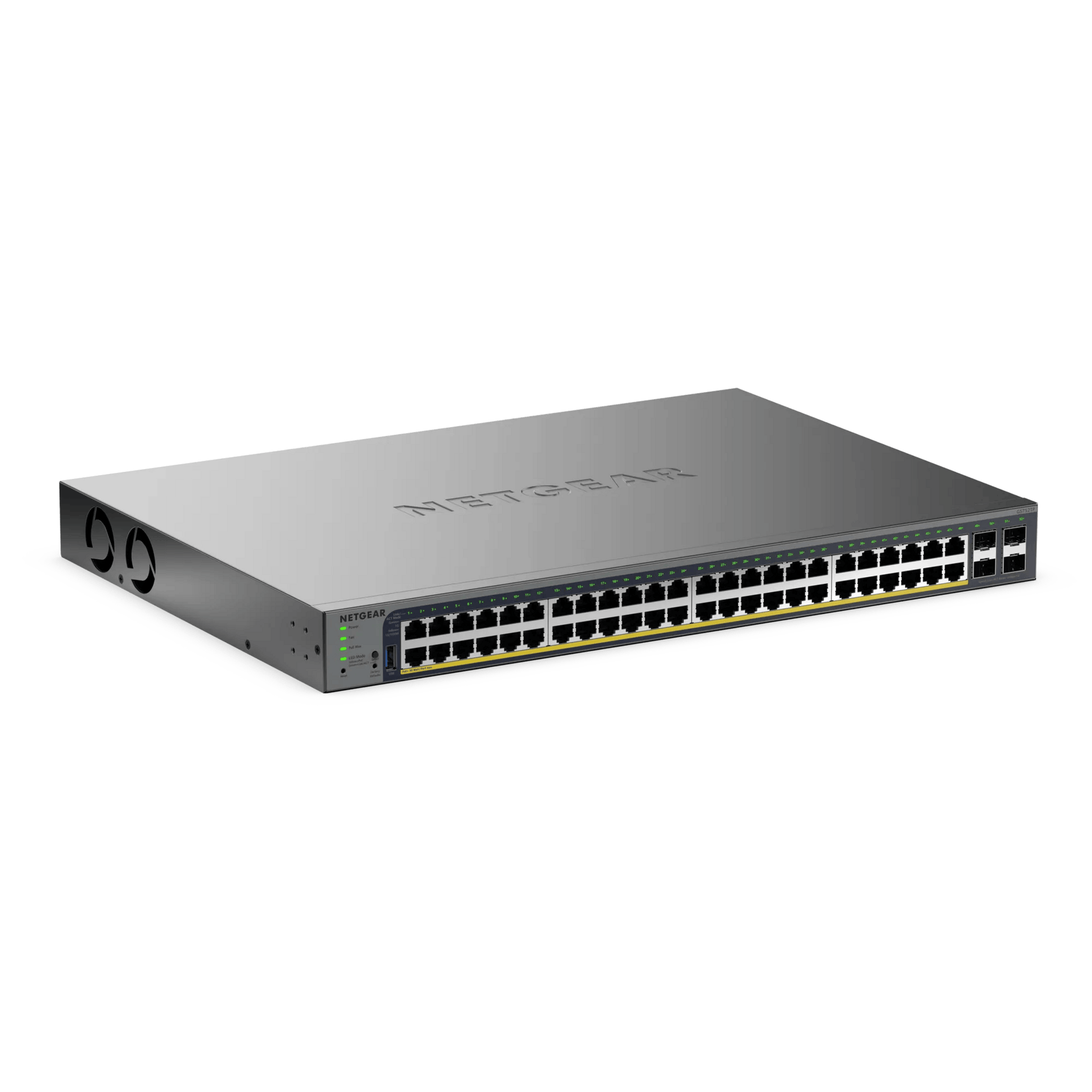

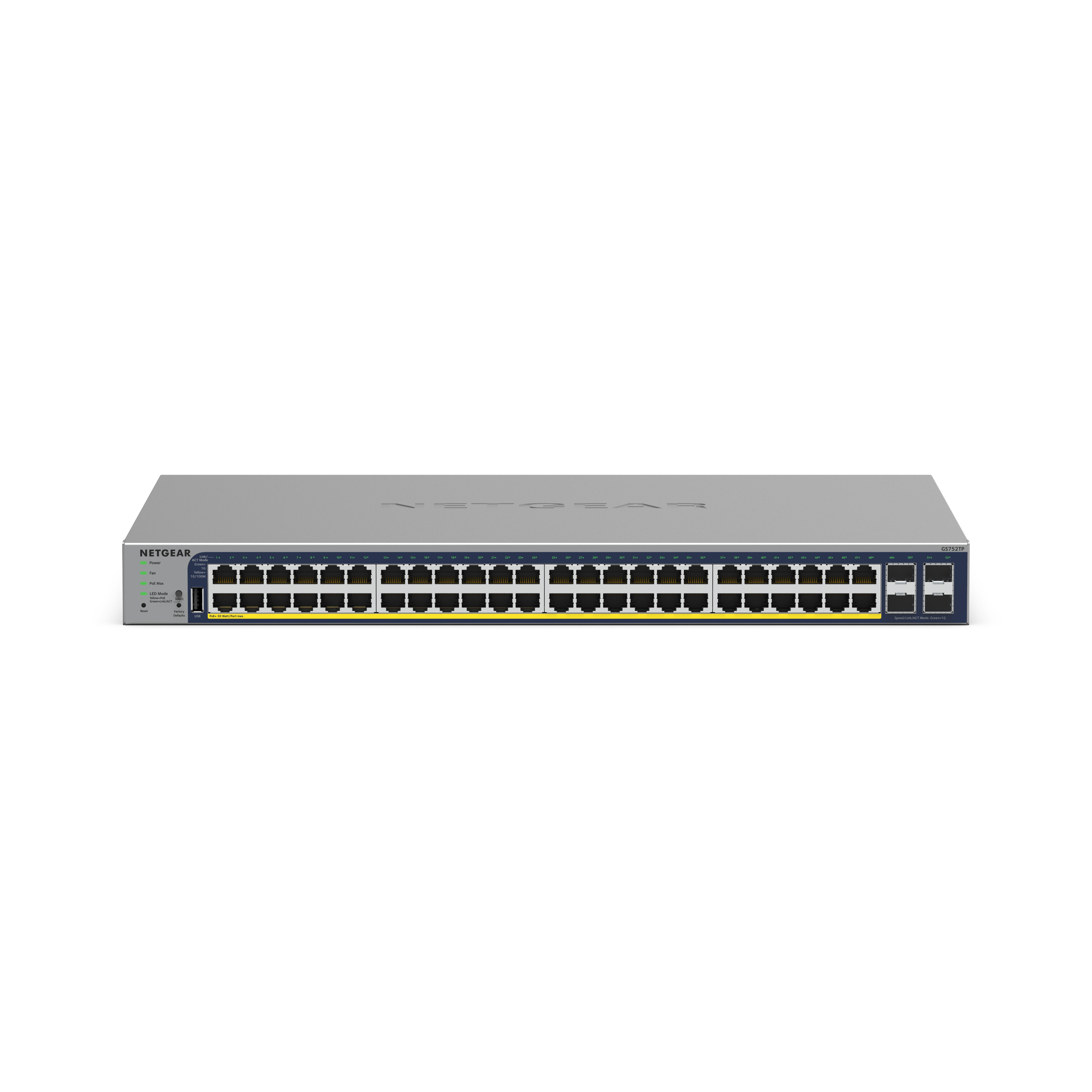

NETGEAR GS752TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black (GS752TP300NAS)
Product overview
All ports PoE+ with up to 760W PoE budget – Select your new network engine! \nAs a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.\n\nThe GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.\n\nTemperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA
Features
- 48 Gigabit Ethernet ports and 4 SFP uplinks
- Smart management
- 48 PoE+ ports with a 380W total budget
- VLAN and QoS support
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS752TP-300NAS |
| D&H SKU | GS752TP300NAS |
| UPC / GTIN | 606449162479 |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 3.35 µs |
| Packet buffer memory | 1.5 MB |
| Static route | Yes |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Built-in processor | Yes |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Internal memory | 128 MB |
| Multicast support | Yes |
| Multicast MAC address table | 512 entries |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x |
| Web-based management | Yes |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 1474.02 BTU/h |
| Certification | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| LED indicators | Yes |
| Noise level | 36.6 dB |
| USB 2.0 ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Power source | PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 380 W |
| Processor model | ARM Cortex-A55 |
| Processor frequency | 800 MHz |
| DHCP features | DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Access Control List (ACL) rules | 100 |
| Flash memory | 32 MB |
| Width | 17.3" (440 mm) |
| Depth | 12.2" (310 mm) |
| Height | 1.66" (42.2 mm) |
| Weight | 10.9 lbs (4.93 kg) |
