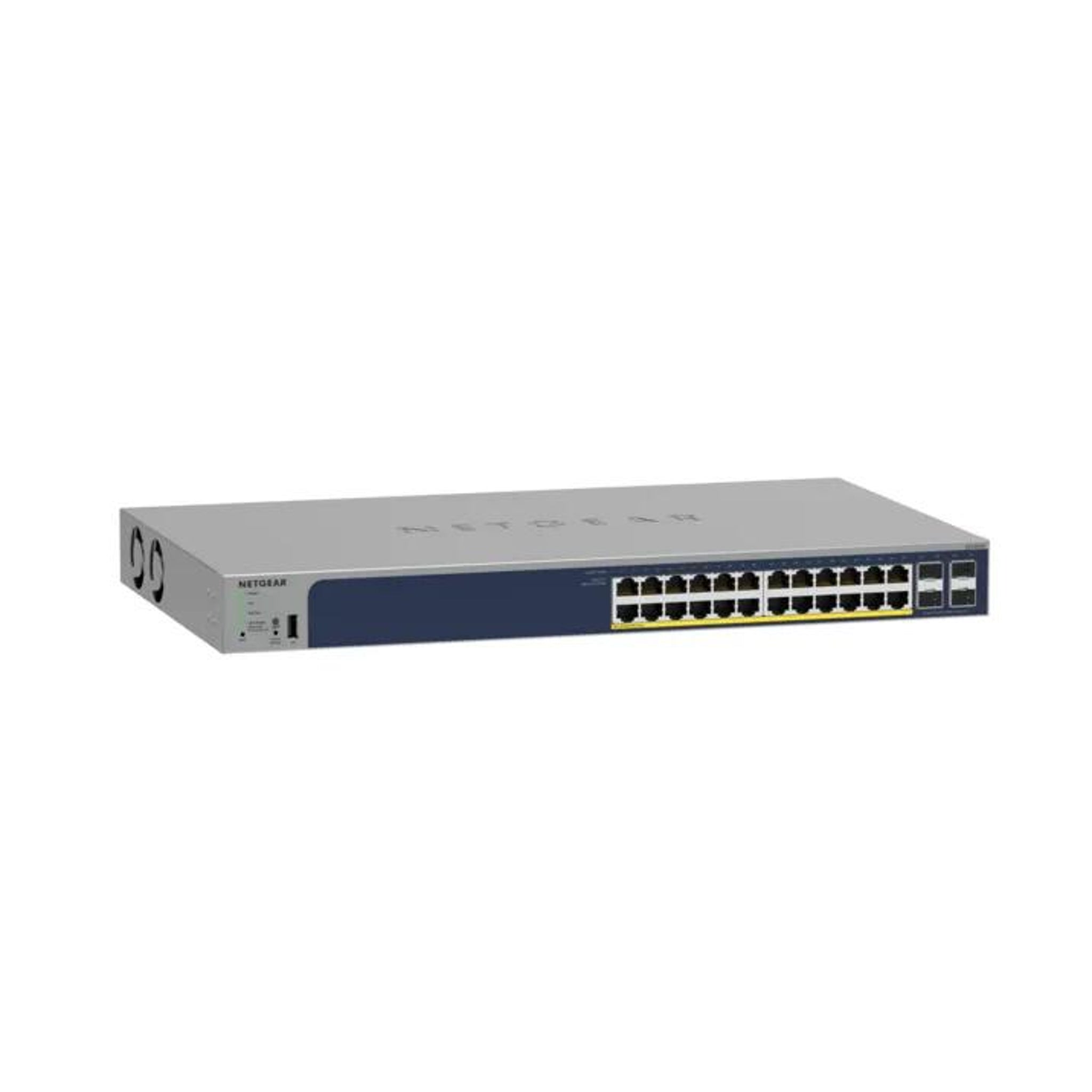

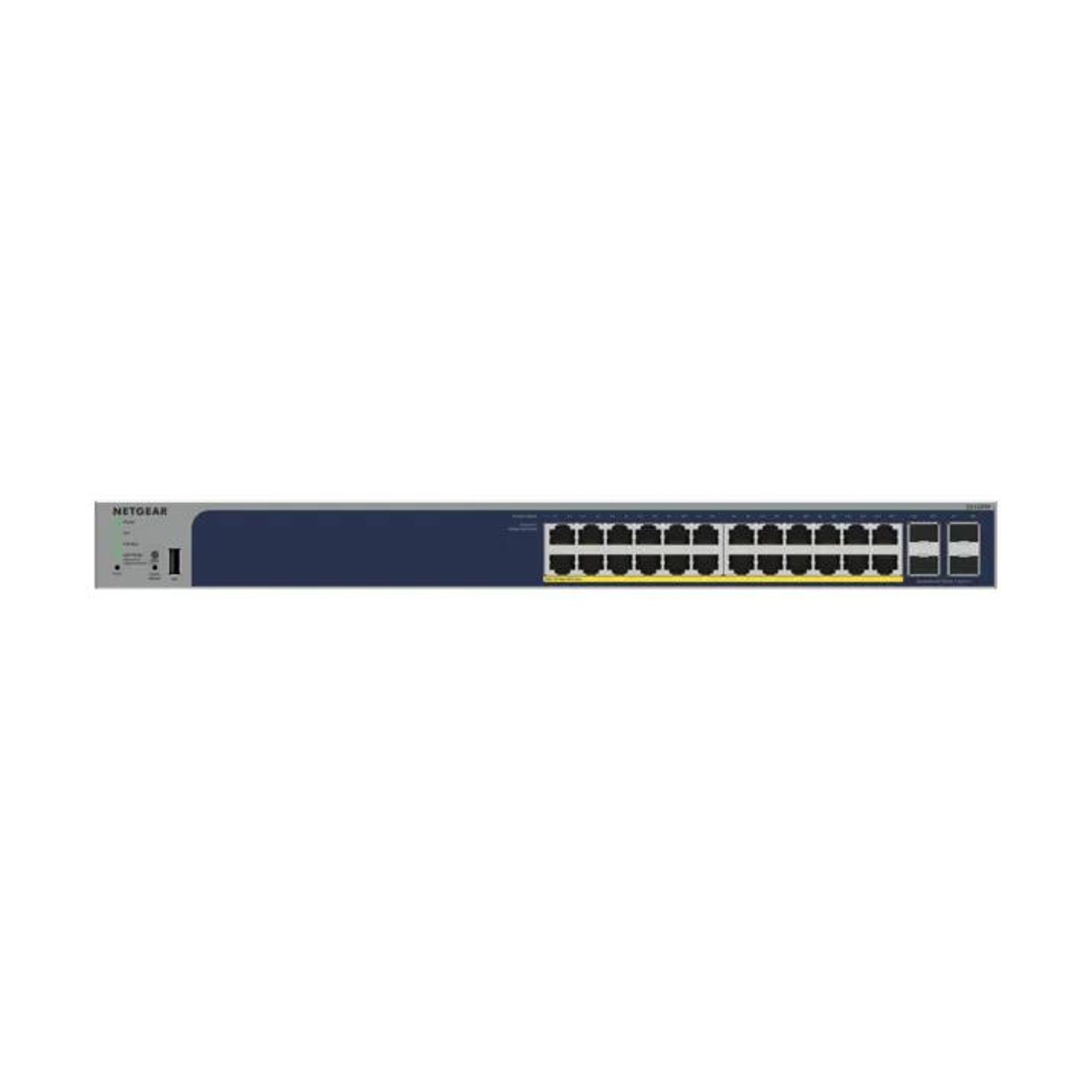

NETGEAR GS752TPv3 Managed L2/L3/L4 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black (GS728TP300NAS)
Product overview
Total Network Solution helps you get the most out of your network \nEasily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Features
- 24 Gigabit Ethernet ports and 4 SFP uplinks
- Smart management
- 24 PoE+ ports with a 190W total budget
- VLAN and QoS support
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS728TP-300NAS |
| D&H SKU | GS728TP300NAS |
| UPC / GTIN | 606449162264 |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Latency (1 Gbps) | 4.691 µs |
| Packet buffer memory | 1.5 MB |
| Latency (10-100 Mbps) | 8.864 µs |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Internal memory | 512 MB |
| Multicast support | Yes |
| Number of multicast groups filtered | 512 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Number of VLANs | 256 |
| IPv4 routes | 32 |
| IPv6 routes | 32 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certification | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| Noise level | 33.3 dB |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 4 |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Processor manufacturer | ARM |
| Processor model | ARM Cortex-A55 |
| DHCP features | DHCPv6 client, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 100 |
| Flash memory | 32 MB |
| Width | 17.3" (440 mm) |
| Depth | 10.1" (257 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 9.06 lbs (4.11 kg) |
