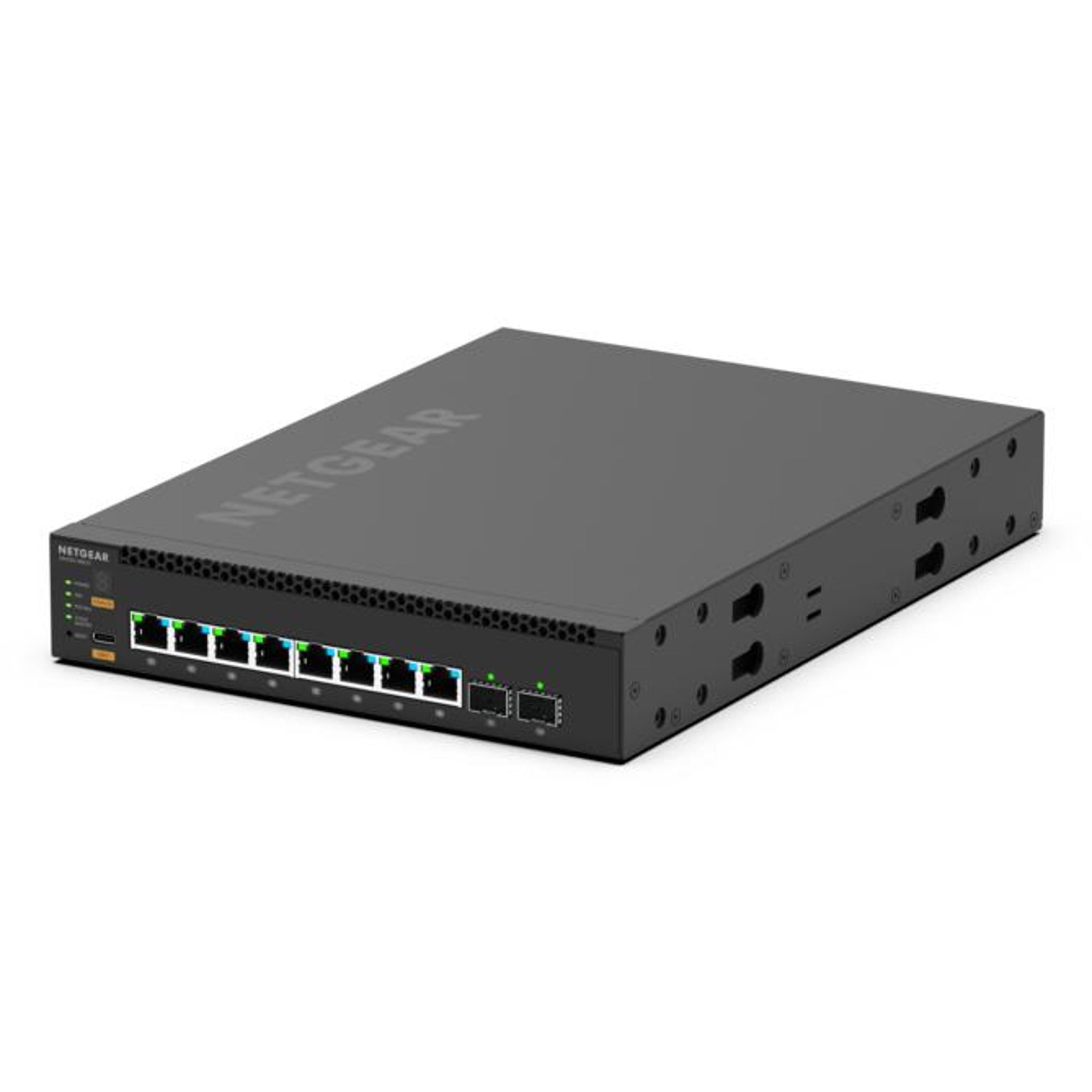

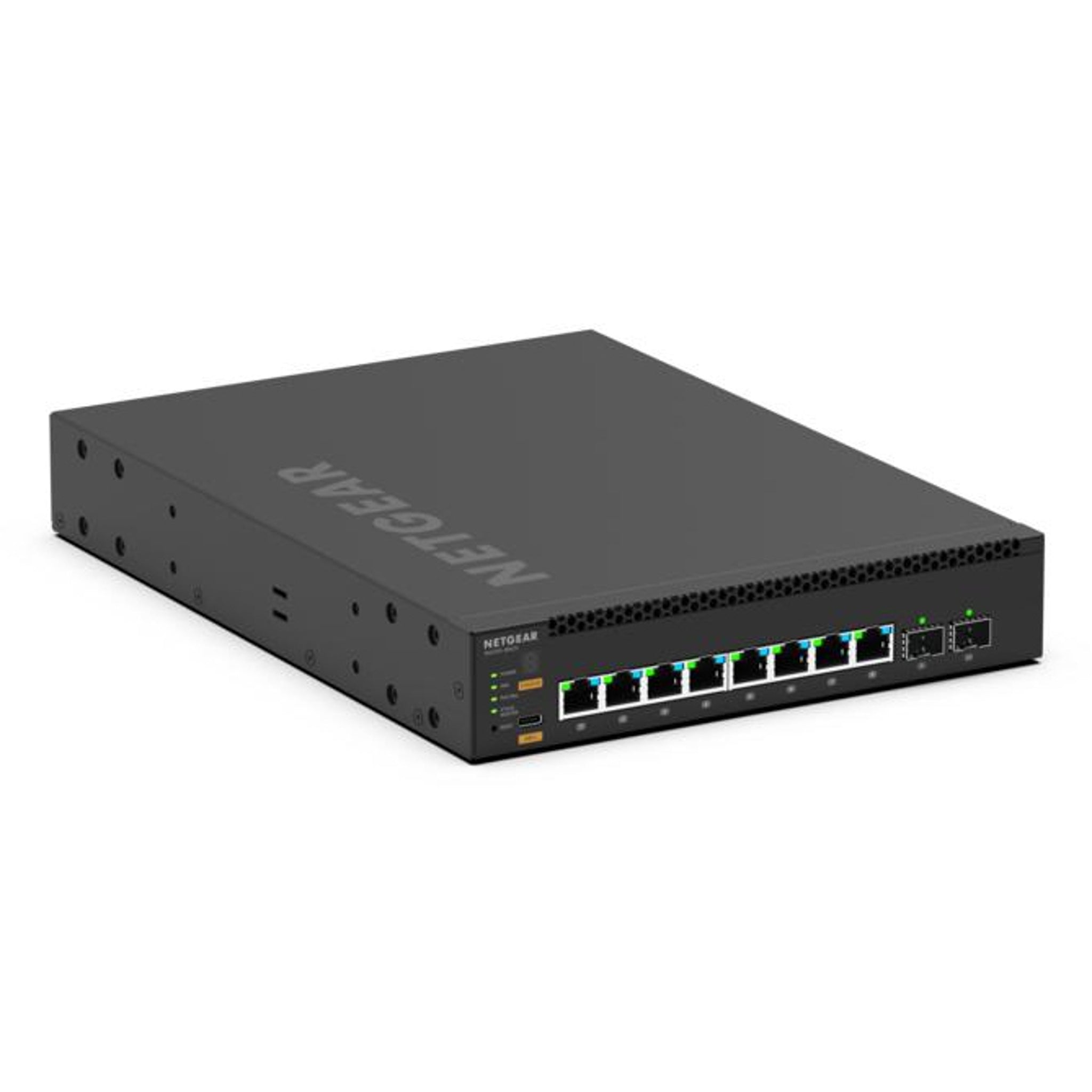

NETGEAR MSM4310 Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black (MSM4310100NES)
Product overview
POWER AND THROUGHPUT \nEdge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.\n\n Groundbreaking AV GUI \nA simplified user interface makes it easy to assign configuration profiles to each port.\n\n Multicast in an Instant \nNETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.\n\n Sleek, Quiet Design \nLess fan noise, and mounting ears included for rack mounting.\n\n Automatic Configuration \nAuto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.\n\n FAST, EASY CONFIGURATION FOR AV PROS \nA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.\n\n FOCUS ON THE EVENT NOT FAN NOISE \nMost models have quiet mode which greatly reduces fan noise.\n\n DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX \nWith built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.\n\n MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS \nEnable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.\n\n PRO AV RESOURCES \nAll the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.
Features

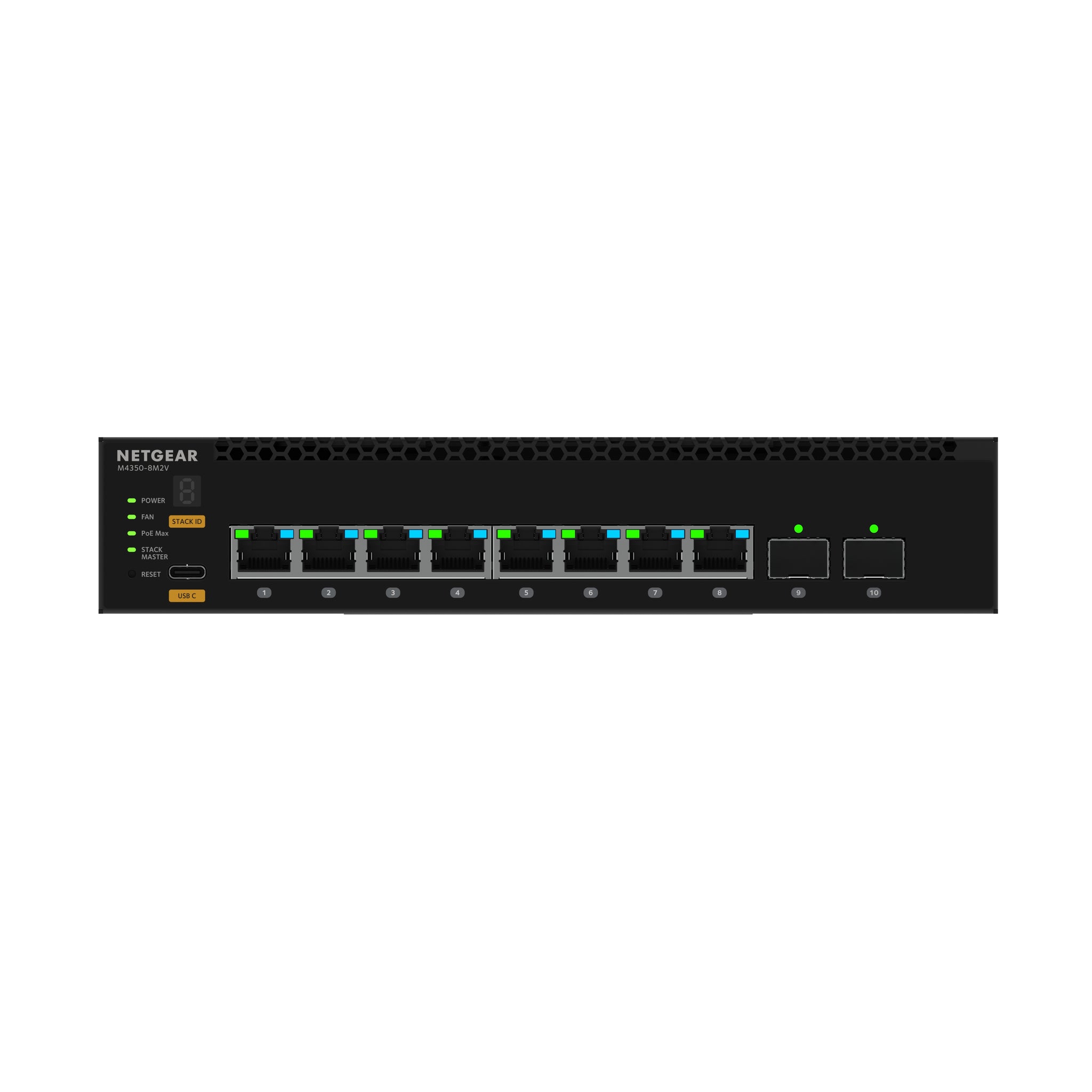

- 8 2.5G PoE++ ports with 2 25GBASE-X SFP28 uplinks.
- Comes with one APS254W power adapter providing 119W of base PoE budget.
- Half-width form factor enables one or two switches in a single rack space
- Up to three APS254W power adapters provide up to 551W PoE budget and/or N+1 redundancy
- The PoE budget can reach 551W, when the redundant PoE budget is 119W (1+1) or 322W (2+1).
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
- SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | MSM4310-100NES |
| D&H SKU | MSM4310100NES |
| UPC / GTIN | 606449172911 |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
| MAC address table | 16000 entries |
| Switching capacity | 140 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 MB |
| Latency (10 Gbps) | 2.27 µs |
| Throughput | 372 Mpps |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Stackable | Yes |
| Airflow direction | Front-to-back airflow |
| Built-in processor | Yes |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Internal memory | 2048 MB |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| Web-based management | Yes |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| Spanning tree protocol | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| 6to4 tunnel | Yes |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Cables included | AC, USB Type-C |
| Quick start guide | Yes |
| Included power plug types | EU, UK, NA |
| Rack mount kit | Yes |
| Password protection | Yes |
| LED indicators | Yes |
| Memory type | DDR4-SDRAM |
| sFlow | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 10G Ethernet (copper) ports quantity | 8 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP28 ports quantity | 2 |
| Power consumption (typical) | 133.5 W |
| Power consumption (max) | 351.5 W |
| Power supply | 550 W |
| Power connector | AC-in jack |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 3314 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 48 |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 1800 MHz |
| Management protocols | SNMP V1, V2, V3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Loop protection | Yes |
| Access Control List (ACL) ingress | 511 |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Access Control List (ACL) egress | 1023 |
| IGMP proxy | Yes |
| Static port security | Yes |
| Root protection | Yes |
| DoS attack prevention | Yes |
| Flash memory | 512 MB |
| Width | 8.66" (220 mm) |
| Depth | 11.8" (300 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 6.39 lbs (2.9 kg) |
| Sustainability compliance | Yes |
