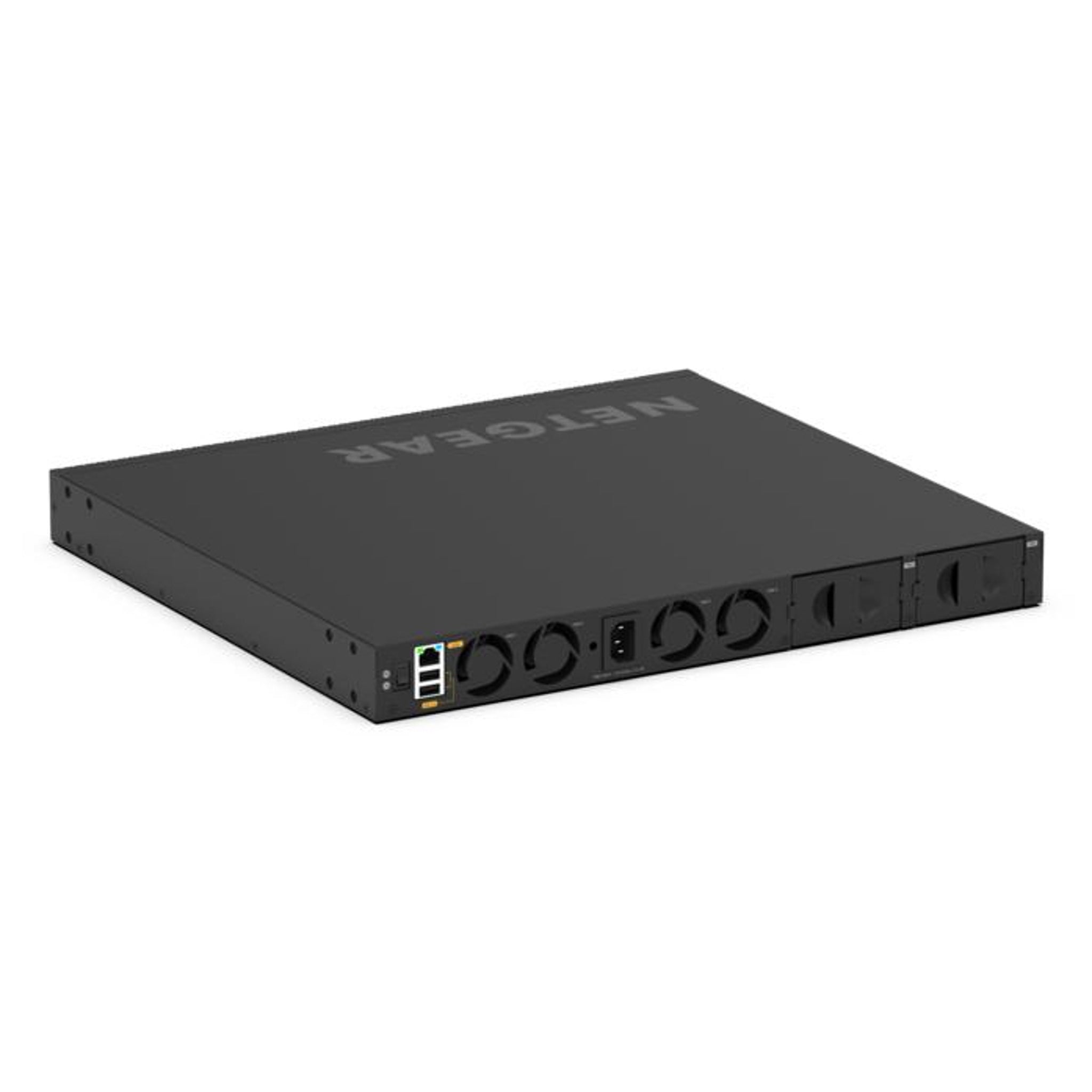

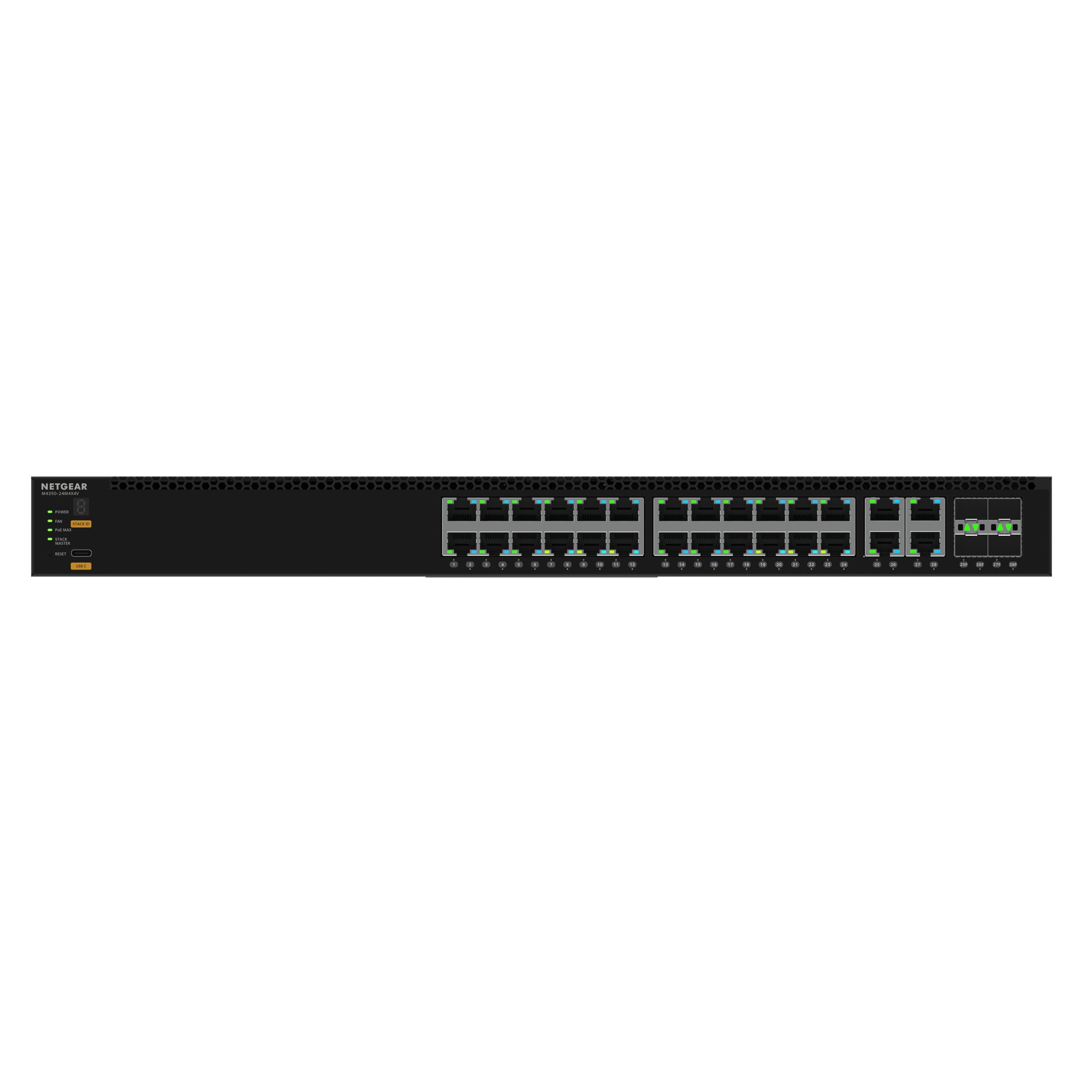

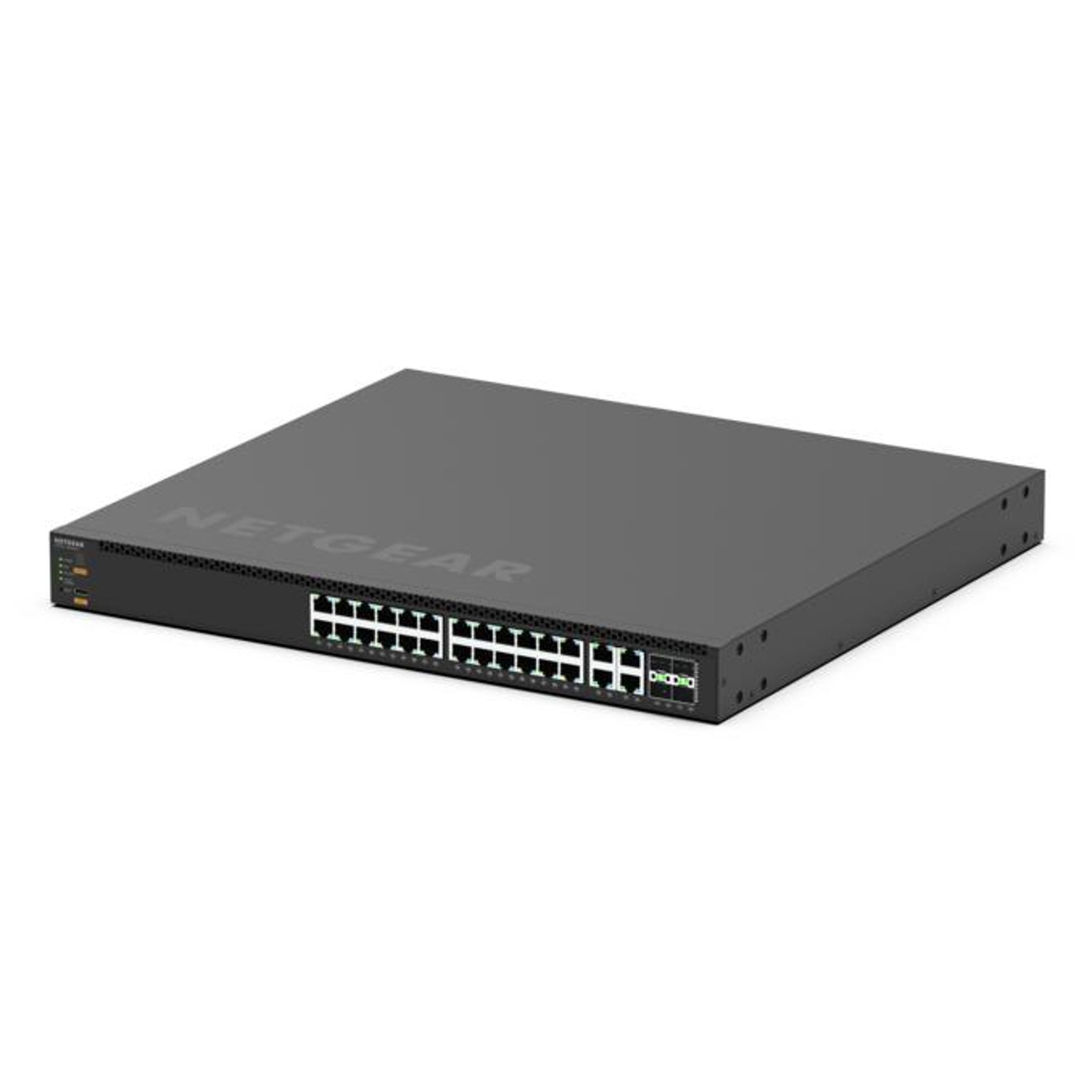

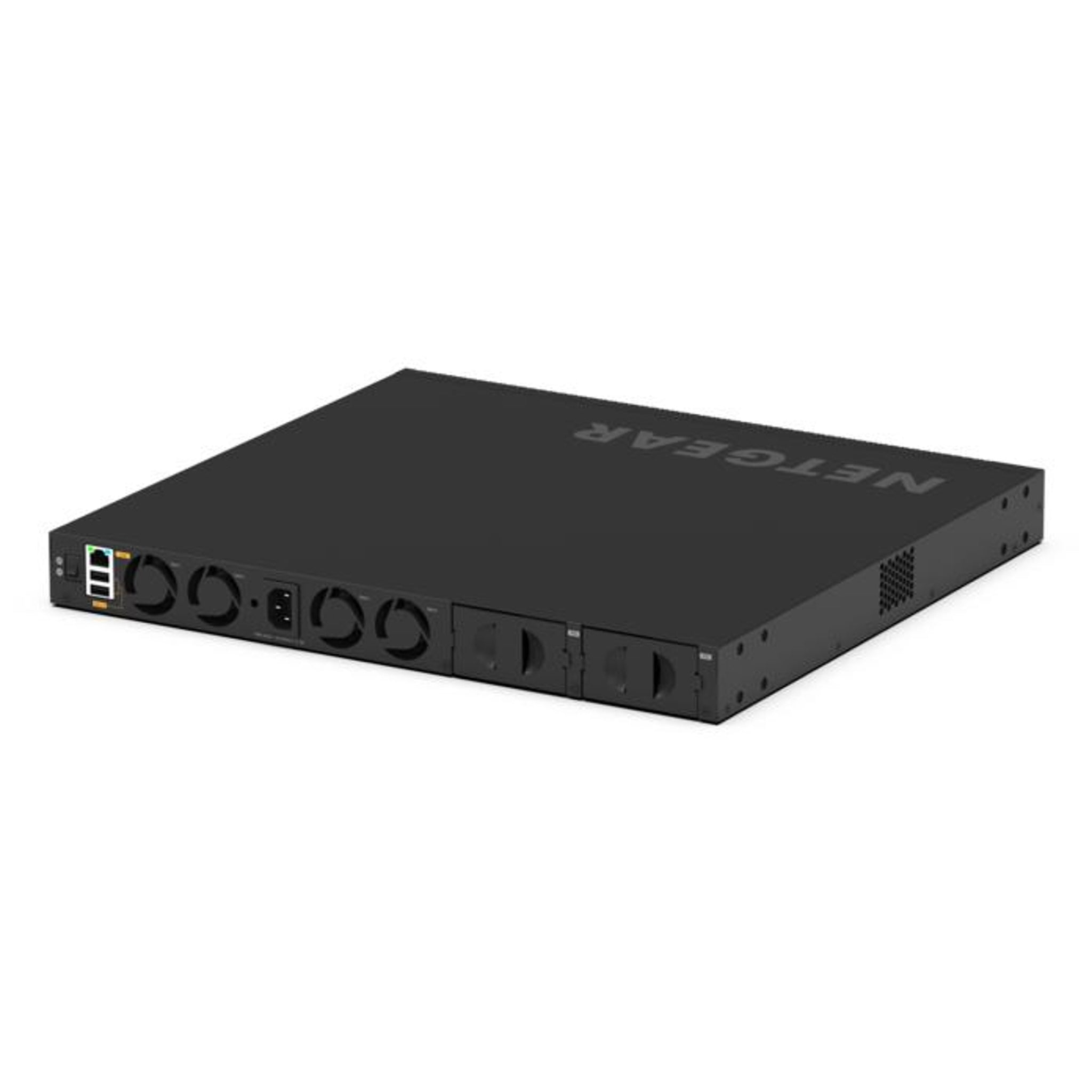

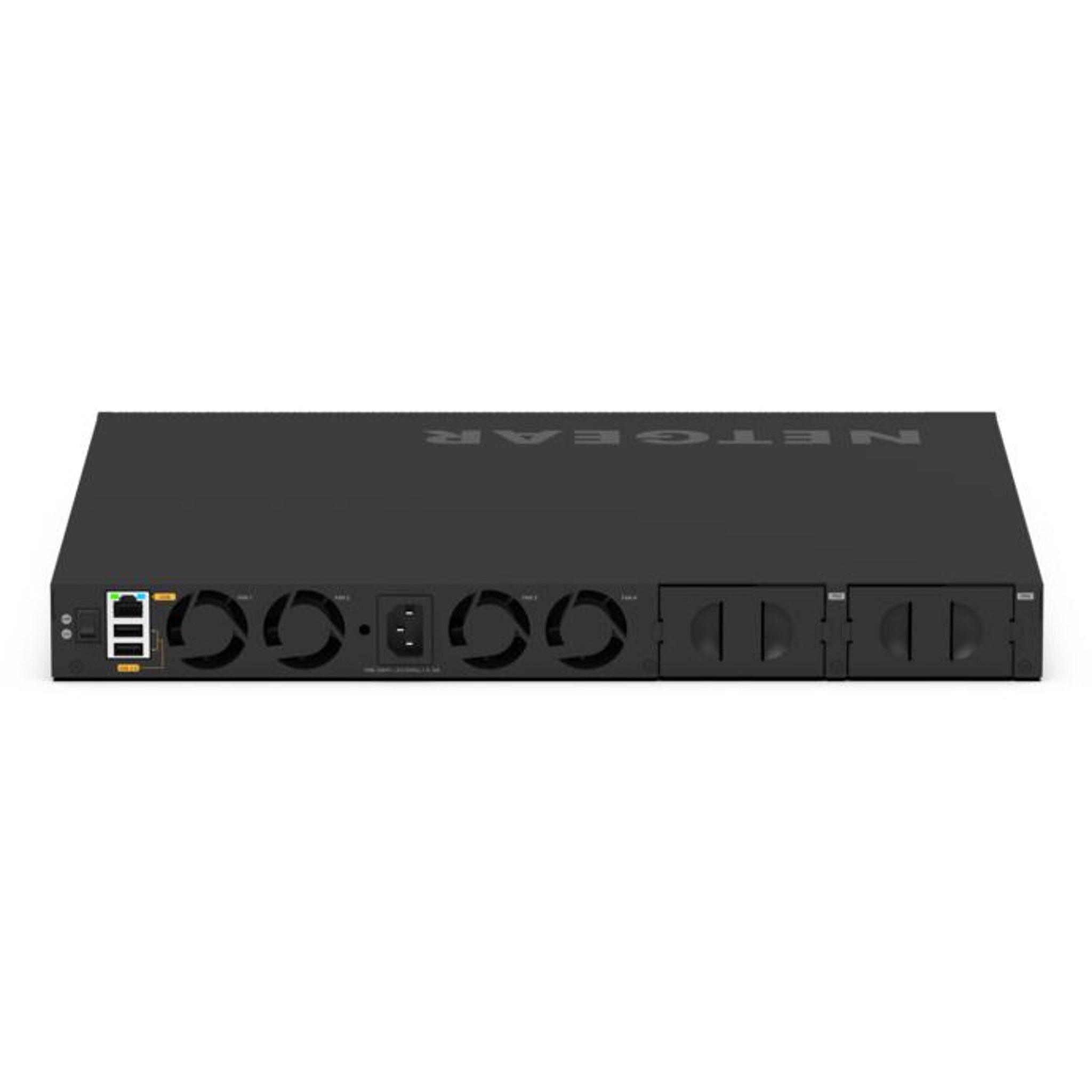

NETGEAR MSM4332 Managed L3 Power over Ethernet (PoE) 1U Black (MSM4332100NES)
Product overview
POWER AND\nTHROUGHPUT \nEdge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.\n\n Groundbreaking AV GUI \nA simplified user interface makes it easy to assign configuration profiles to each port.\n\n Multicast in an Instant \nNETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.\n\n Sleek, Quiet Design \nLess fan noise, and mounting ears included for rack mounting.\n\n Automatic Configuration \nAuto-trunk and auto-LAG functionality auto connects with other M4350\n\n FOCUS ON THE EVENT\nNOT FAN NOISE \nMost models have quiet mode which greatly reduces fan noise.\n\n DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX \nWith built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.\n\n MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS \nEnable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
Features
- 420W internal power supply.
- 1 slot for modular power supply (1+1 redundancy).
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
- SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | MSM4332-100NES |
| D&H SKU | MSM4332100NES |
| UPC / GTIN | 606449172850 |
| Switching capacity | 400 Gbit/s |
| Jumbo frames support | Yes |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Stackable | Yes |
| Switch type | Managed |
| Switch layer | L3 |
| Internal memory | 4000 MB |
| 10G support | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 10GBASE-T |
| Cables included | AC, USB |
| Manual | Yes |
| Rack mount kit | Yes |
| Fiber optic connector | SFP28 |
| Noise level | 66 dB |
| Memory type | DDR4-SDRAM |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Console port | USB |
| SFP28 ports quantity | 4 |
| Fiber ports quantity | 4 |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 2520 W |
| Power over Ethernet (PoE) ports quantity | 28 |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Width | 17.3" (440 mm) |
| Depth | 15.7" (400 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 16.3 lbs (7.38 kg) |
