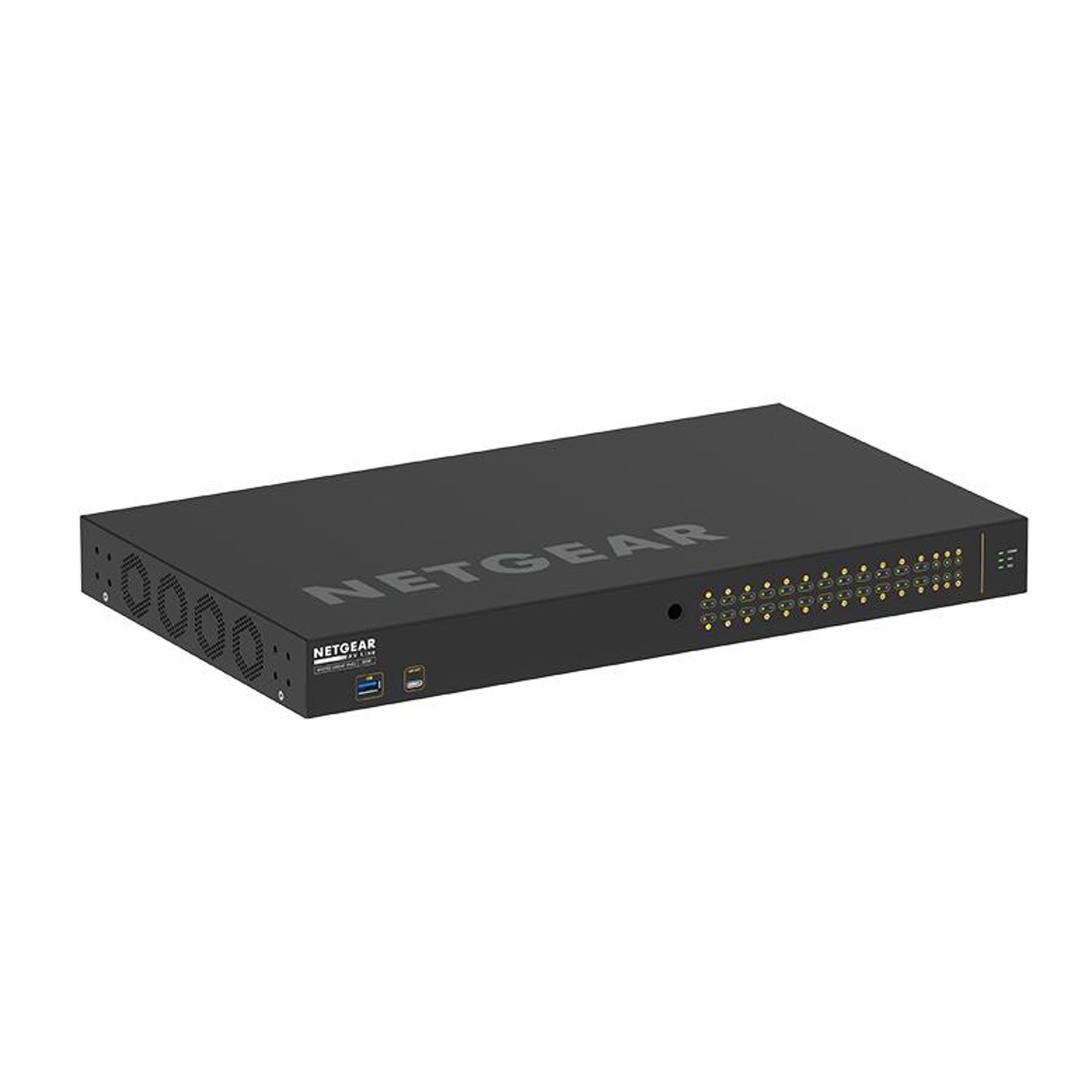

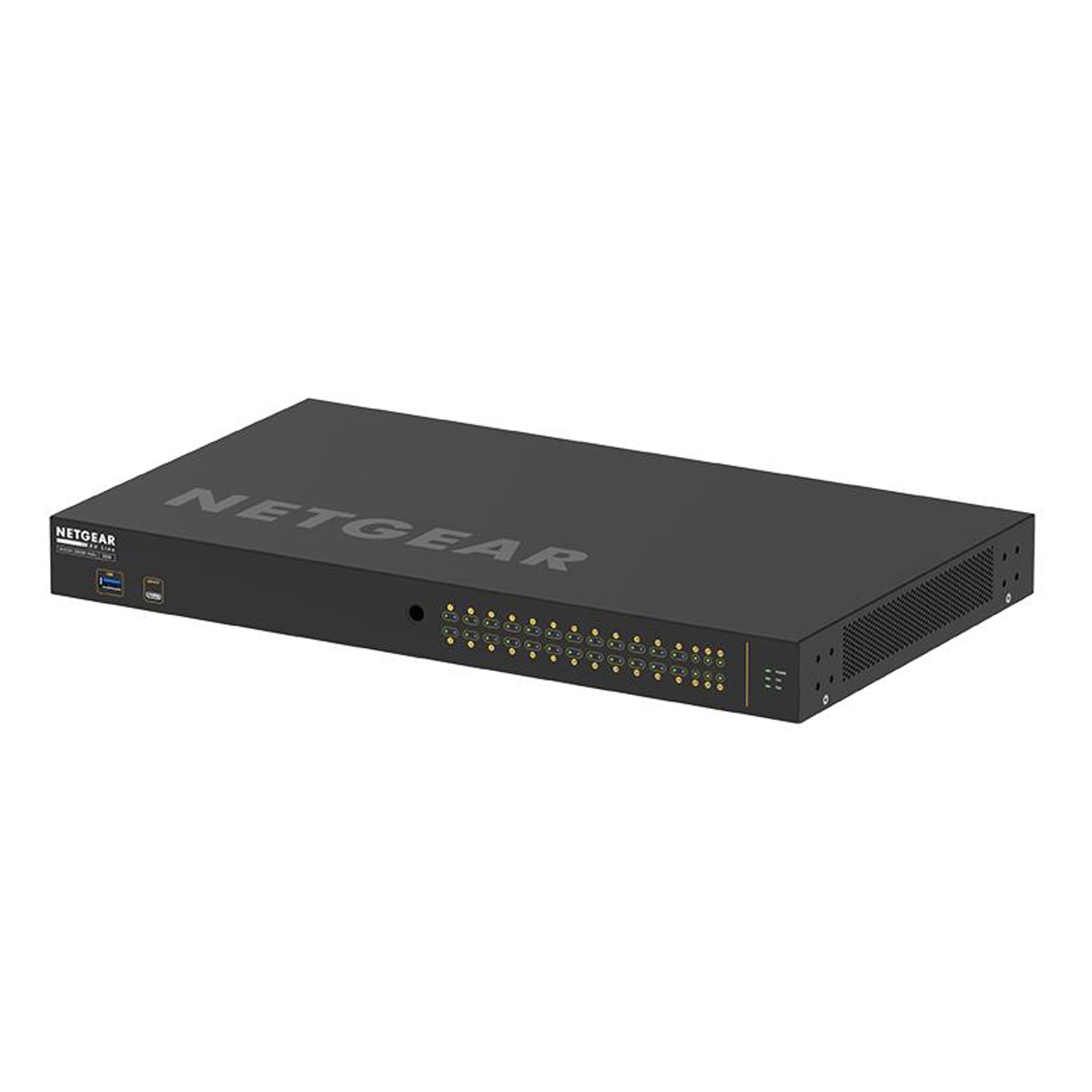

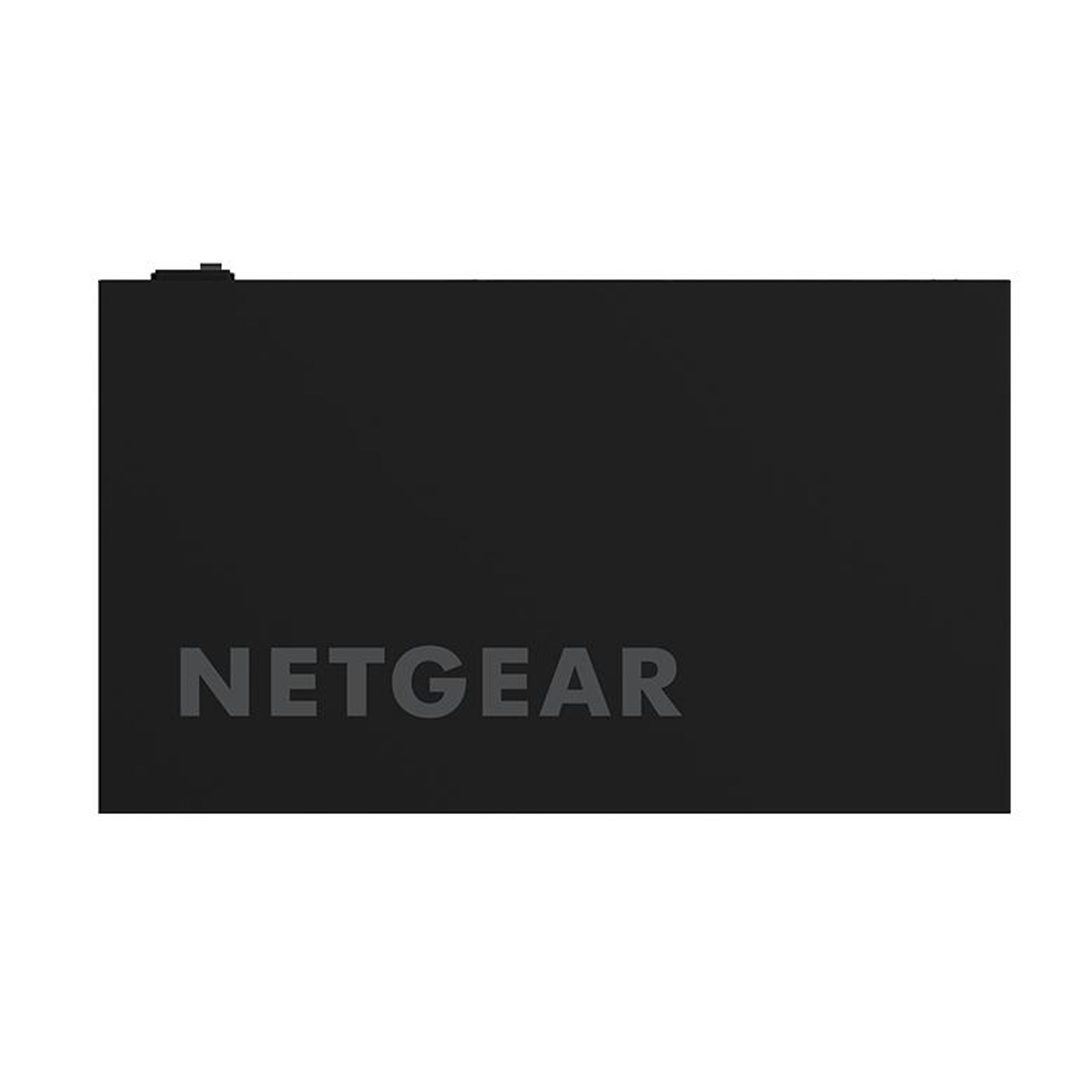

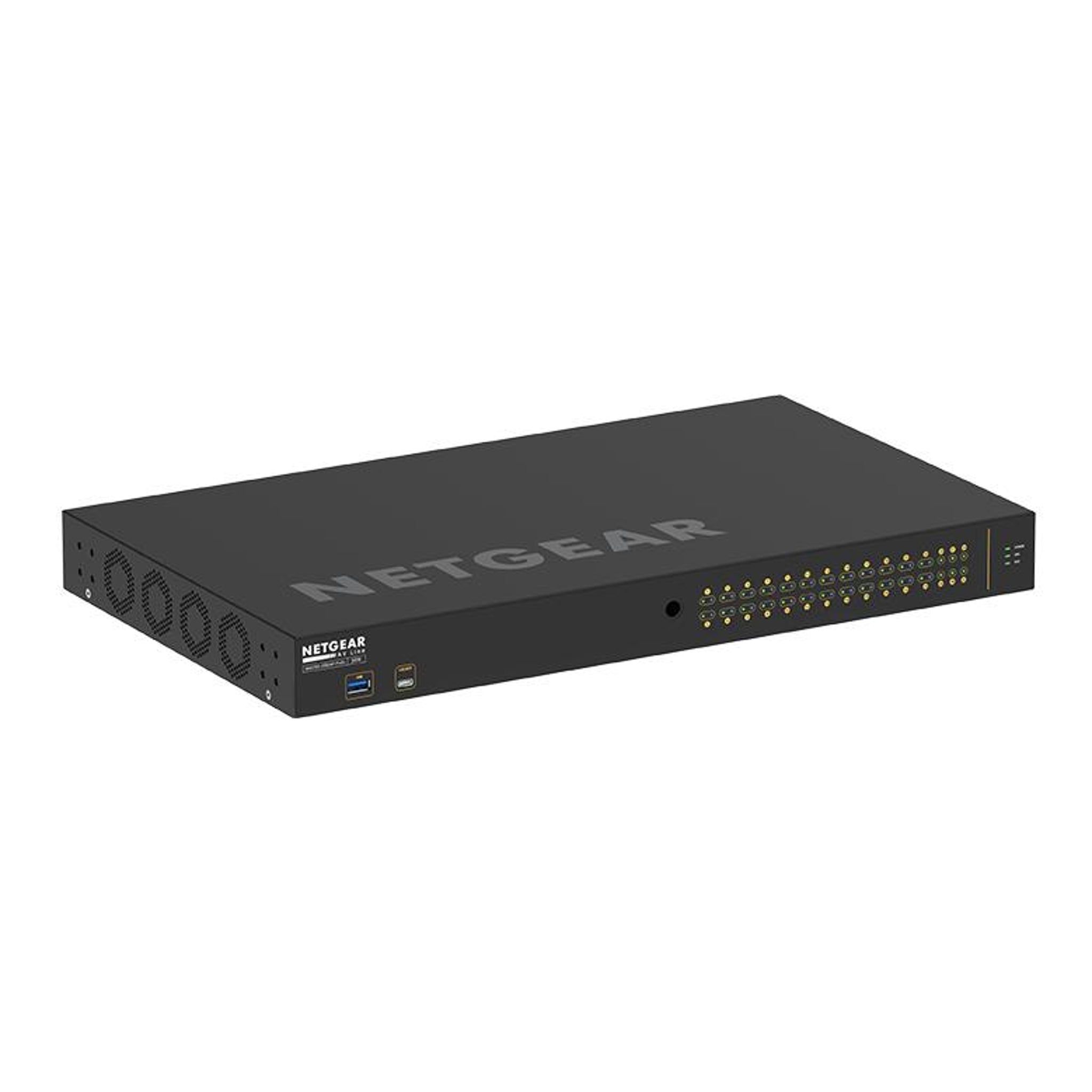

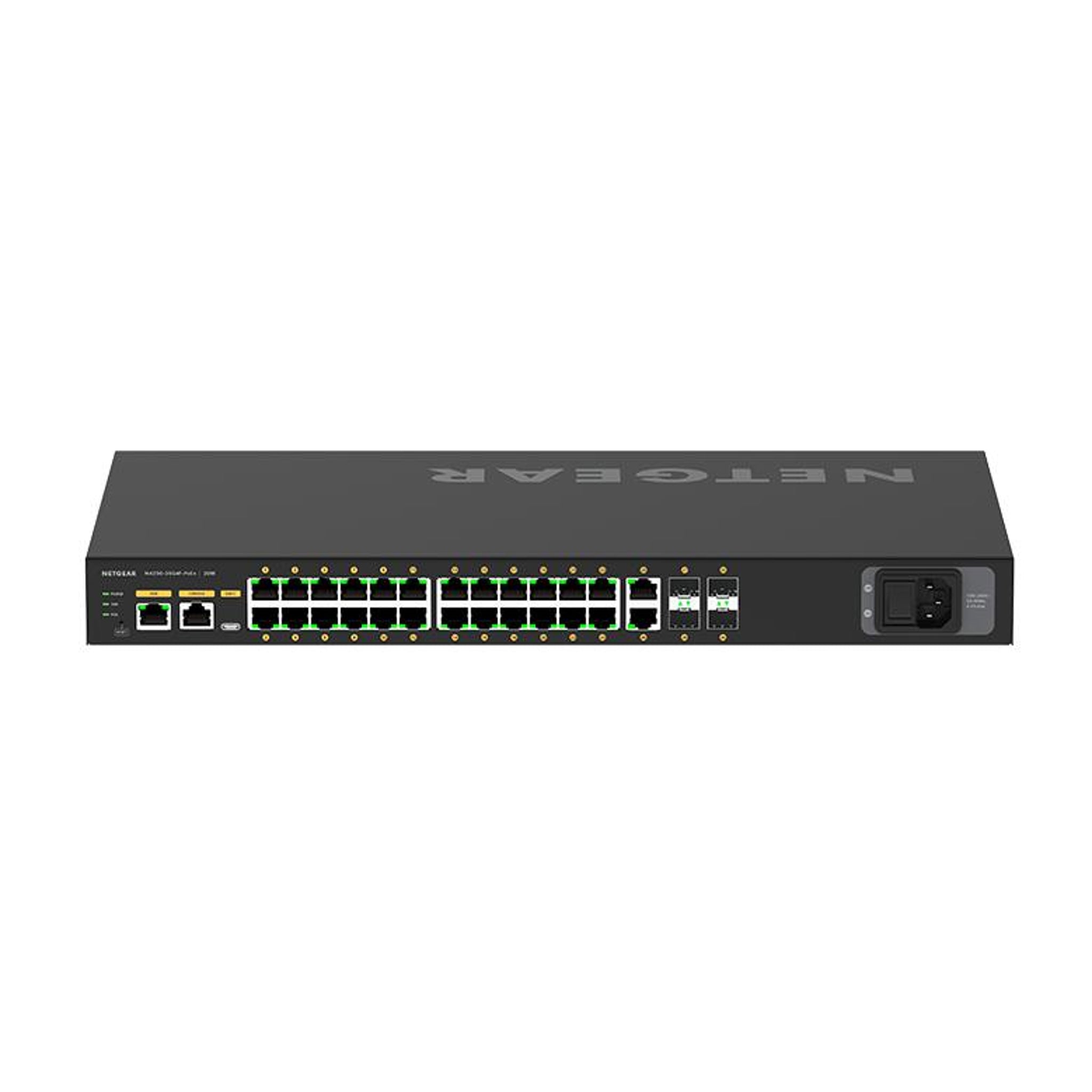

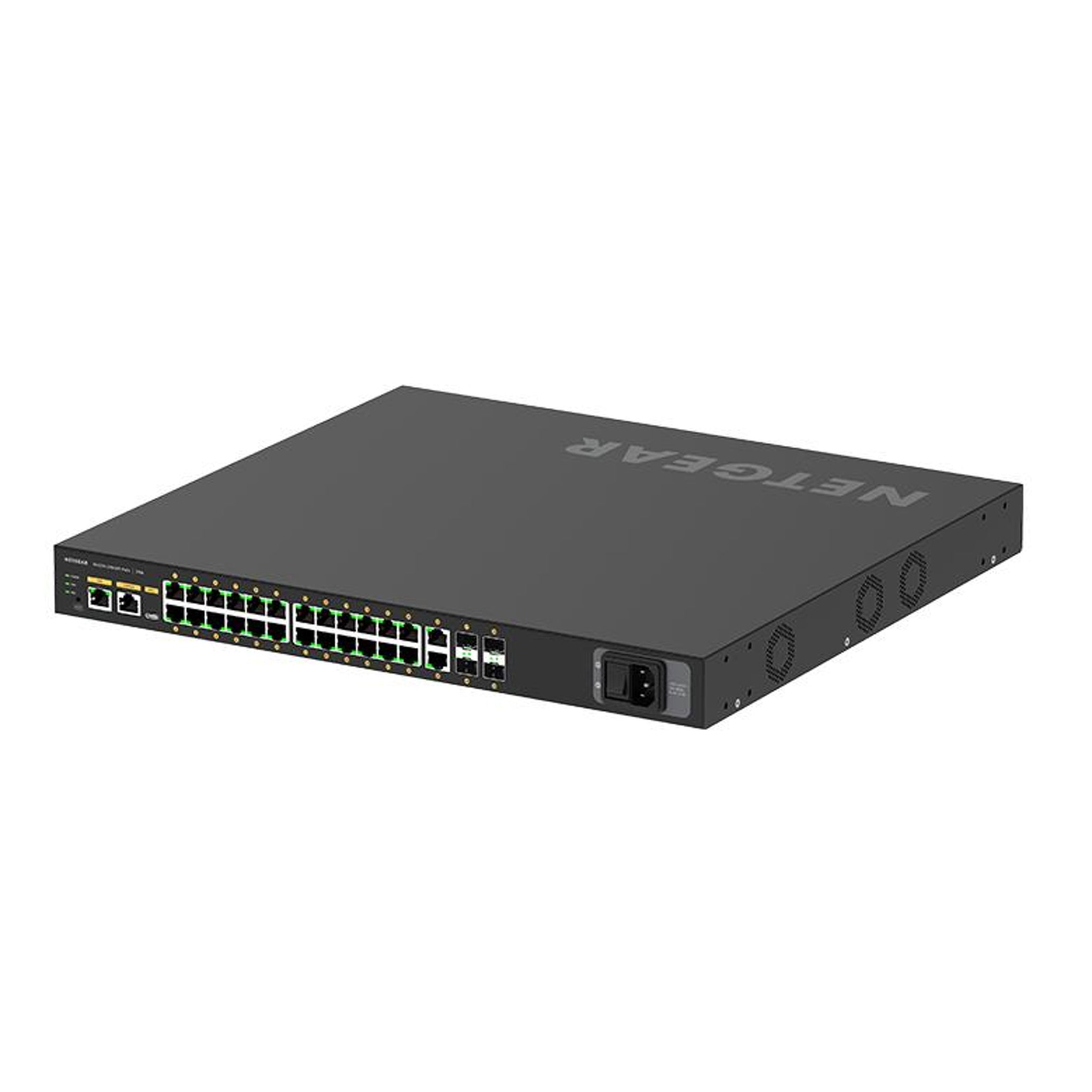

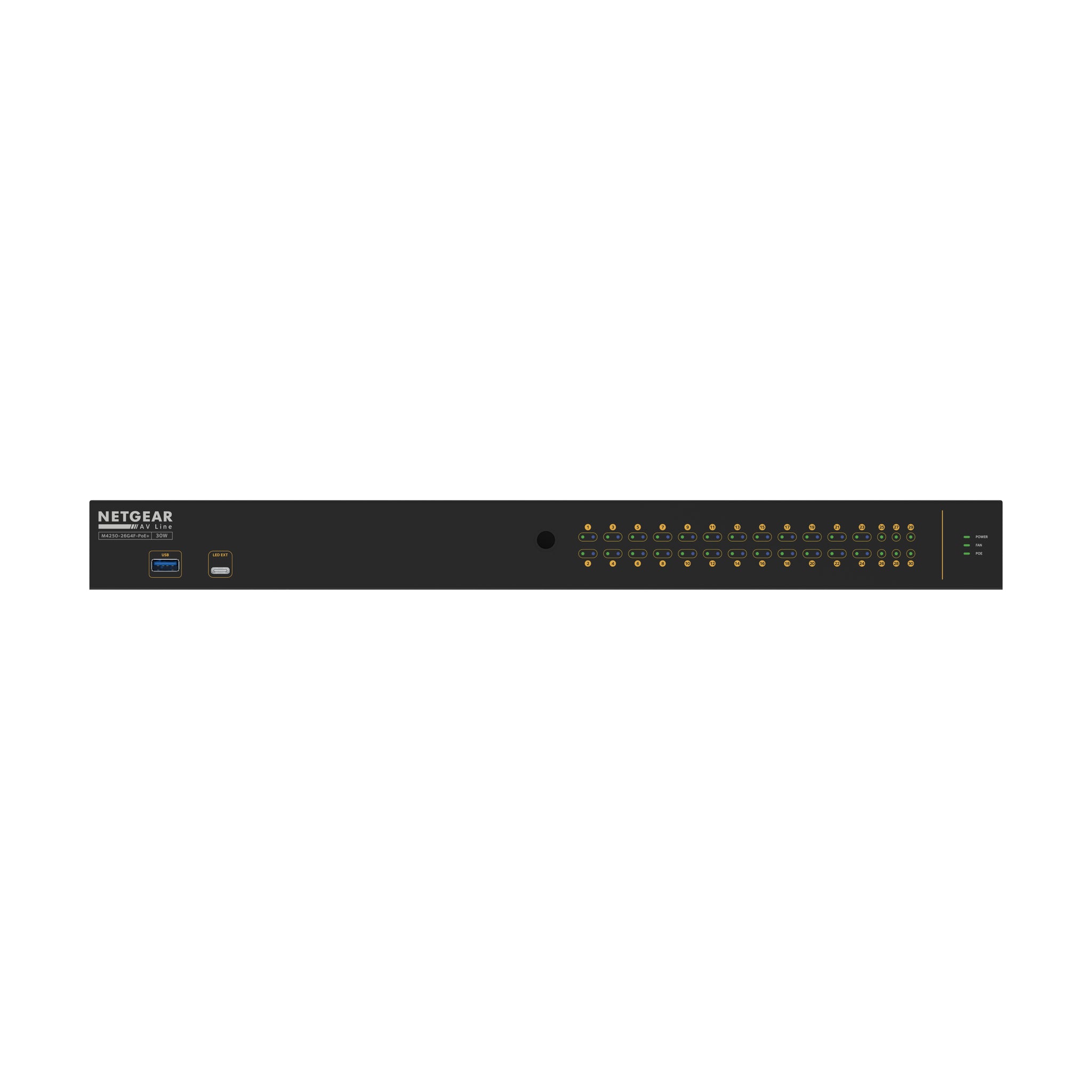

NETGEAR GSM4230P Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black (GSM4230P100NAS)
Product overview
Pre-configured for out-of-the-box use \nNETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations\n\n Dedicated AV web-based GUI interface \nUnique interface designed for the AV professional with color-coded, port-based profiles\n\n Profiles for common audio protocols \nQuickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license\n\n Video profiles built-in \nSpecial profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed\n\n Unique Automatic Configuration \nAuto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.\n\n Multi-switch audio or single-switch video deployments \n24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks\n\n Layer 2/Layer 3 Switching \nCommon Layer 2 and Layer 3 switching engine across all M4250 models\n\n Control methods abound \nBuilt-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series\n\n Standard network features \nFeature set includes static, RIP and PIM routing, DHCP Server and PTPv2
Features
- Pre-configured for out-of-the-box use
- Video profiles built-in
- Dedicated AV web-based GUI interface
- Unique Automatic Configuration
- Profiles for common audio protocols
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GSM4230P-100NAS |
| D&H SKU | GSM4230P100NAS |
| UPC / GTIN | 606449151688 |
| MAC address table | 16000 entries |
| Switching capacity | 60 Gbit/s |
| Latency (1 Gbps) | 2.15 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Throughput | 44.64 Mpps |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Stackable | No |
| Number of fans | 0 fan(s) |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| IPv4 multicast entries | 512 |
| IPv6 multicast entries | 128 |
| Networking standards | IEEE 802.3af, IEEE 802.3bt |
| Web-based management | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4000 |
| Spanning tree protocol | Yes |
| Cables included | AC, LAN (RJ-45), USB Type-C |
| User guide | Yes |
| LED indicators | Yes |
| Noise level | 57 dB |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Power source | PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 300 W |
| Management protocols | Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+ |
| DHCP features | DHCP relay, DHCP server, DHCPv6 server |
| IGMP snooping | Yes |
| Width | 17.3" (440 mm) |
| Depth | 10.1" (257 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 9.48 lbs (4.3 kg) |
