NETGEAR WAX610W 1800 Mbit/s White Power over Ethernet (PoE) (WAX610W100NAS)
Product overview
POWERFUL BUSINESS WIFI \n\nFaster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.\n\n IDEAL FOR HOSPITALITY & EDUCATION \n\nUltimate WiFi performance for hotels, multi-dwelling units (MDUs), and classrooms.\n\n SEAMLESS MESH WIFI \n\nSeamlessly expand your network with any mesh-connected Insight access points.\n\n EASY DEPLOYMENT \n\nOne PoE Gigabit port for easy setup, plus four additional LAN ports to connect to IP phones, smart TVs, and more.\n\n CUSTOM GUEST WIFI \n\nCreate a branded, customizable guest WiFi experience with the optional Captive Portal.
Features
- Dual-band delivering 1.8 Gbps of data throughput
- Purpose-built for hospitality, MDUs, and classrooms
- Connect to a Gigabit Ethernet switch for maximum speed
- 8 separate wireless networks (SSIDs)
- Simplified deployment with PoE
- VLAN and QoS configurable via Insight Remote Cloud Management
- Compatible with WiFi 4, WiFi 5, WiFi 6E and WiFi 7 on the 2.4 and 5GHz Bands
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | WAX610W-100NAS |
| D&H SKU | WAX610W100NAS |
| UPC / GTIN | 606449175189 |
| Product color | White |
| Placement | Desk |
| Output voltage | 54 V |
| Output current | 1.2 A |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Spread spectrum method | OFDM, OFDMA |
| Fast roaming | Yes |
| Security algorithms | EAP, TLS, TTLS |
| Frequency band | 2.5 - 5 GHz |
| Antenna type | Internal |
| Maximum data transfer rate | 1800 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |

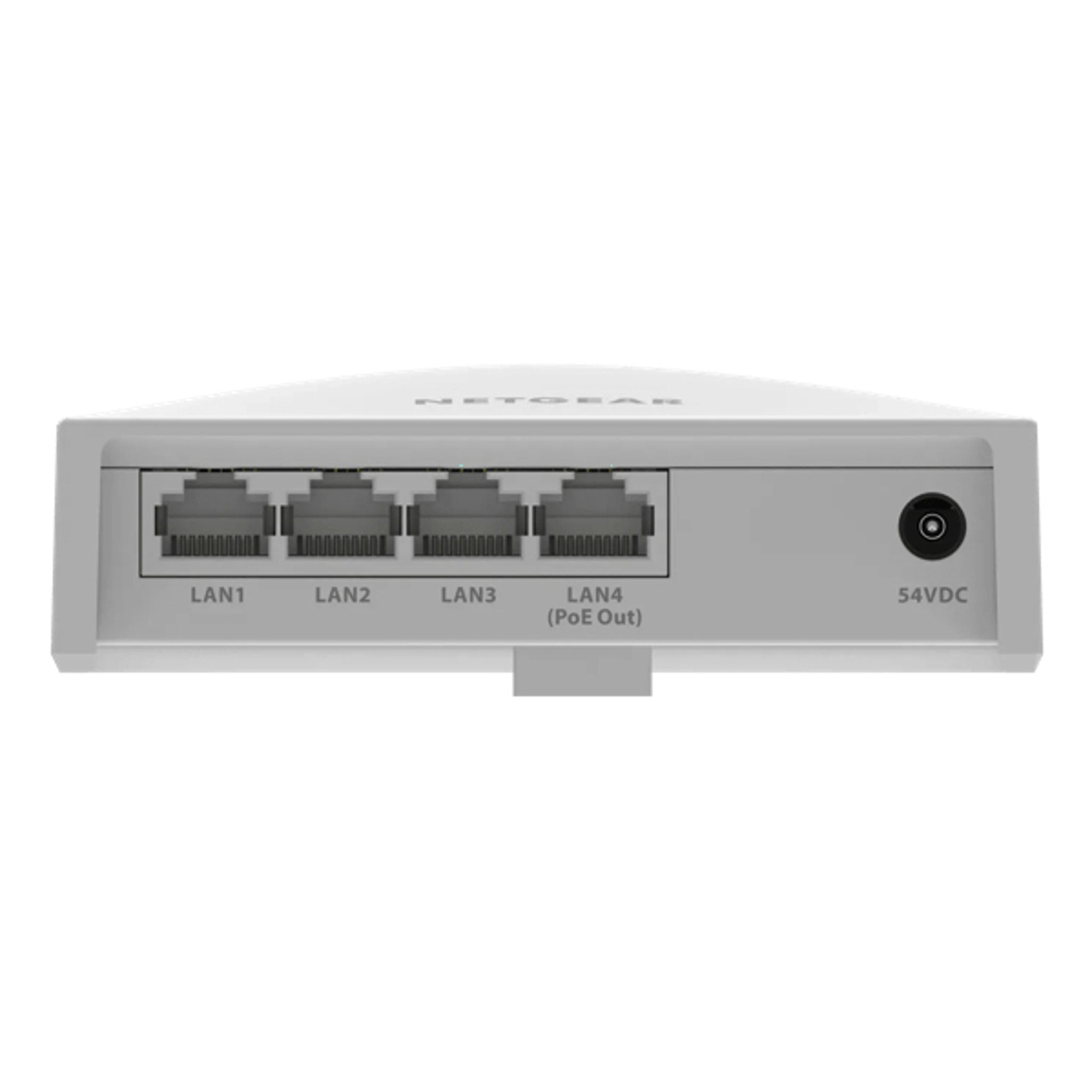

| Ethernet LAN (RJ-45) ports | 4 |
| Quantity per pack | 1 pc(s) |

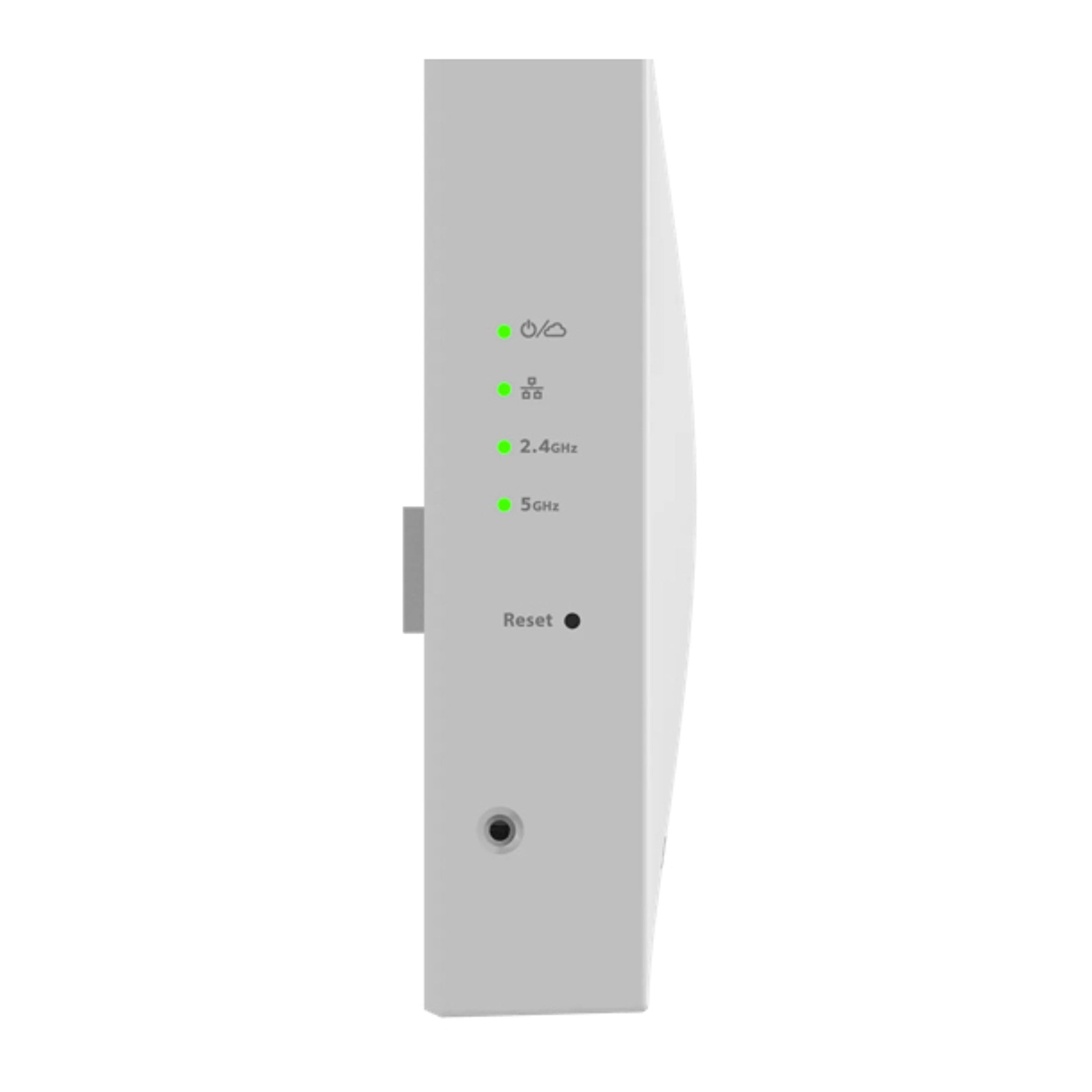

| LED indicators | Network, Power, Status |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) | Yes |
| Guest access | Yes |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Width | 4.33" (110 mm) |
| Depth | 5.12" (130 mm) |
| Height | 1.35" (34.2 mm) |
| Weight | 13.4 oz (380 g) |
| Warranty period | 5 year(s) |
