NETGEAR MS308E 2.5G Ethernet (100/1000/2500) 1U Black (MS308E100NAS)
Product overview
MULTI-GIGABIT ETHERNET \n8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each\n\n NON-BLOCKING SWITCHING \n40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices\n\n AUTO-NEGOTIATION \nAutomatic connection at the highest common speed between the switch and an end device\n\n FANLESS DESIGN \nSilent operation makes this switch perfect for noise-sensitive environments\n\n VERSITILE MOUNTING OPTIONS \nInstall your switch on your desktop or mount it to your wall with the hardware provided in the box\n\n ENERGY EFFICIENT \nEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Features
- Effortless Setup with Simple Configuration
- Eight (8) 2.5G Multi-Gigabit Ethernet ports for faster connections and increased efficiency
- Compact, robust metal desktop case with silent fanless operation
- Versatile placement options: desktop or wall mounting

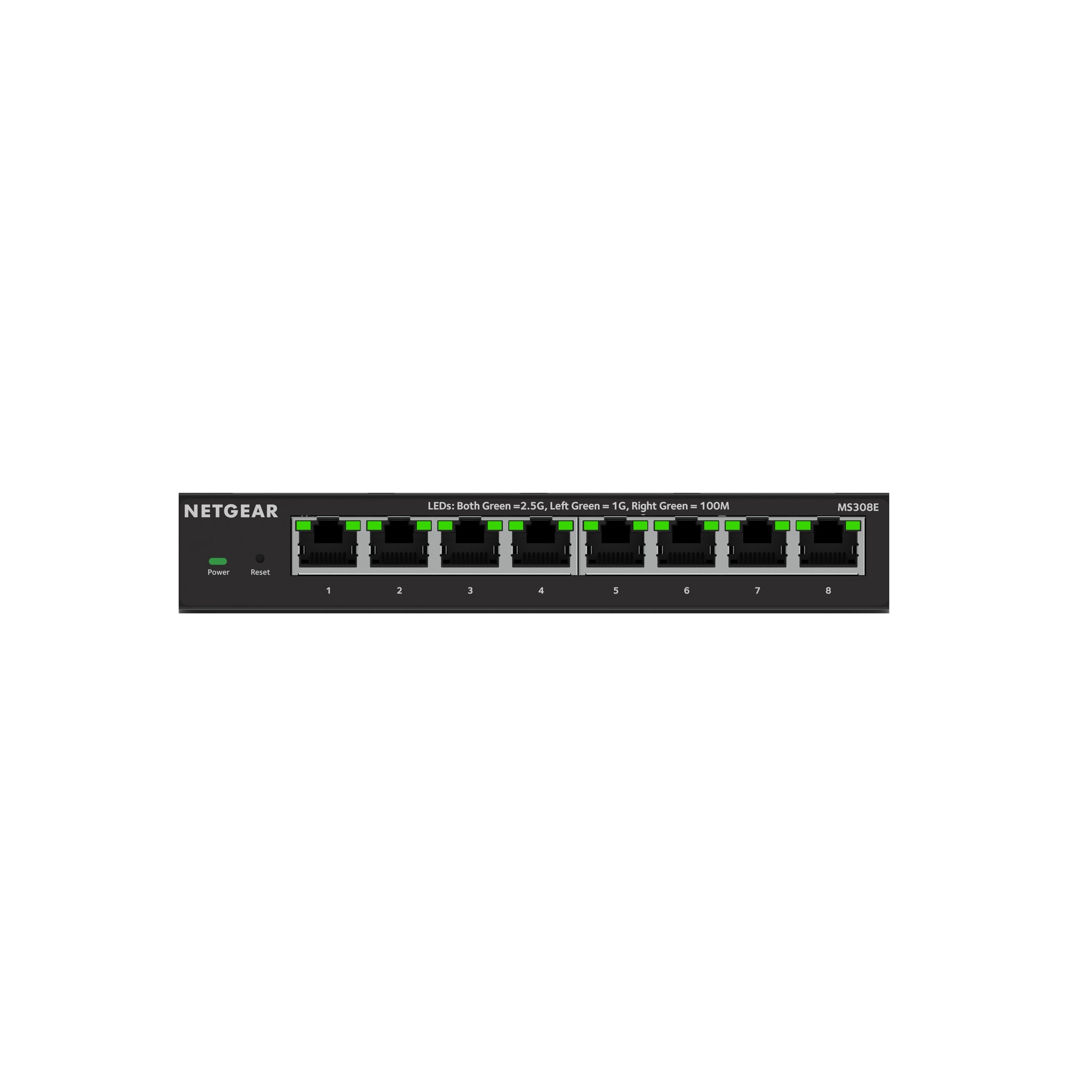

- Convenient monitoring via per port LEDs, displaying activity and speed
- Easy management with intuitive web-based Interface
- NETGEAR’s 5-Year hardware warranty for added peace of mind
- Energy-efficient design in line with IEEE 802.3az standards
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | MS308E-100NAS |
| D&H SKU | MS308E100NAS |
| UPC / GTIN | 606449170665 |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 3.72 Mpps |
| Latency (1 Gbps) | 4.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Product color | Black |
| Wall mountable | Yes |
| Form factor | 1U |
| Housing material | Metal |
| Rack mounting | No |
| Stackable | No |
| Number of fans | 0 fan(s) |
| Input voltage | 12 V |
| Mean time between failures (MTBF) | 3309911 h |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3bz |
| 10G support | No |
| Full duplex | Yes |
| Cable length detection | Yes |
| Half duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 8.27 BTU/h |
| Auto MDI/MDI-X | Yes |
| Noise level | 0 dB |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Input current | 1 A |
| Power source | DC |
| DC input voltage | 12 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.06" (27 mm) |
| Weight | 15.2 oz (430 g) |
| Warranty period | 5 year(s) |
