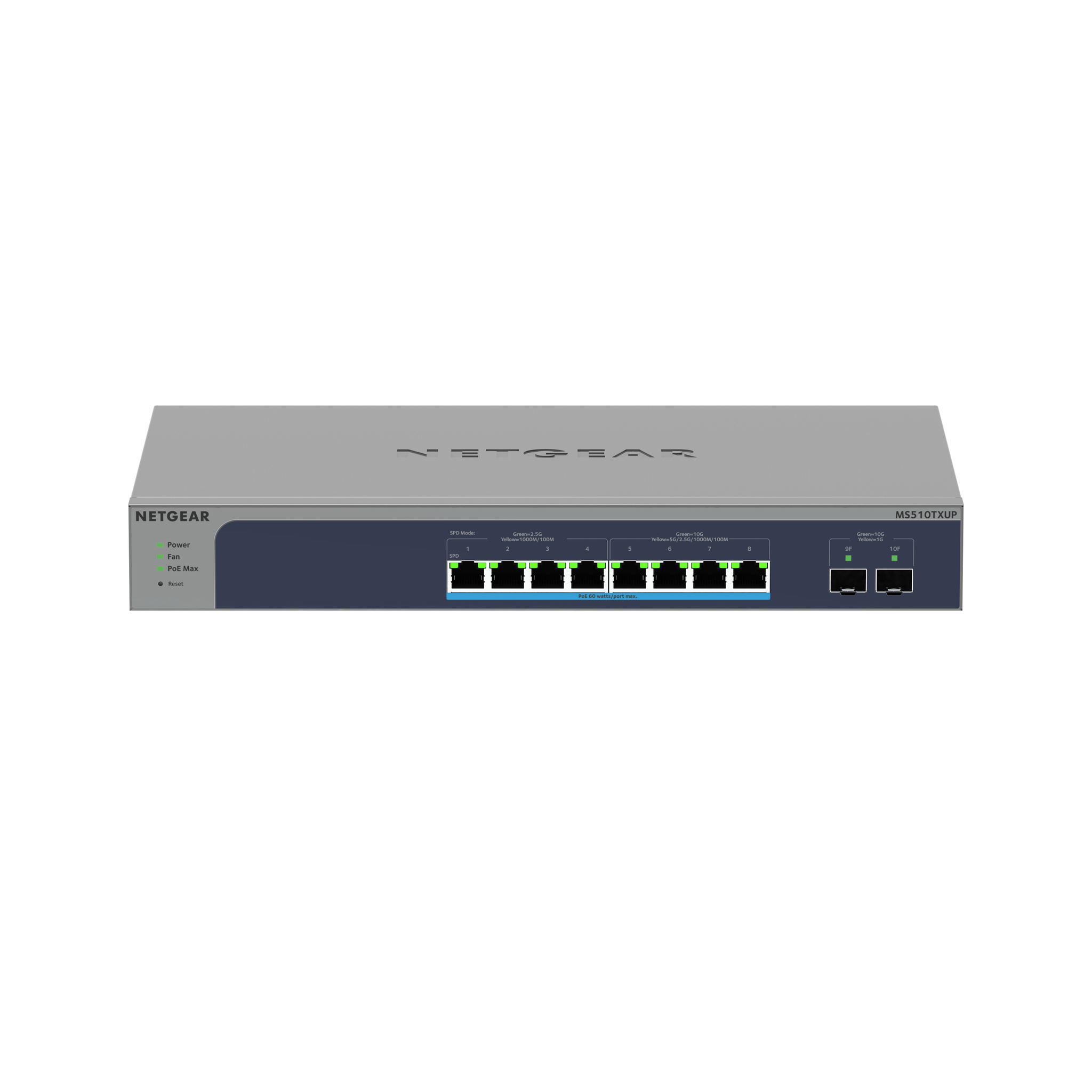

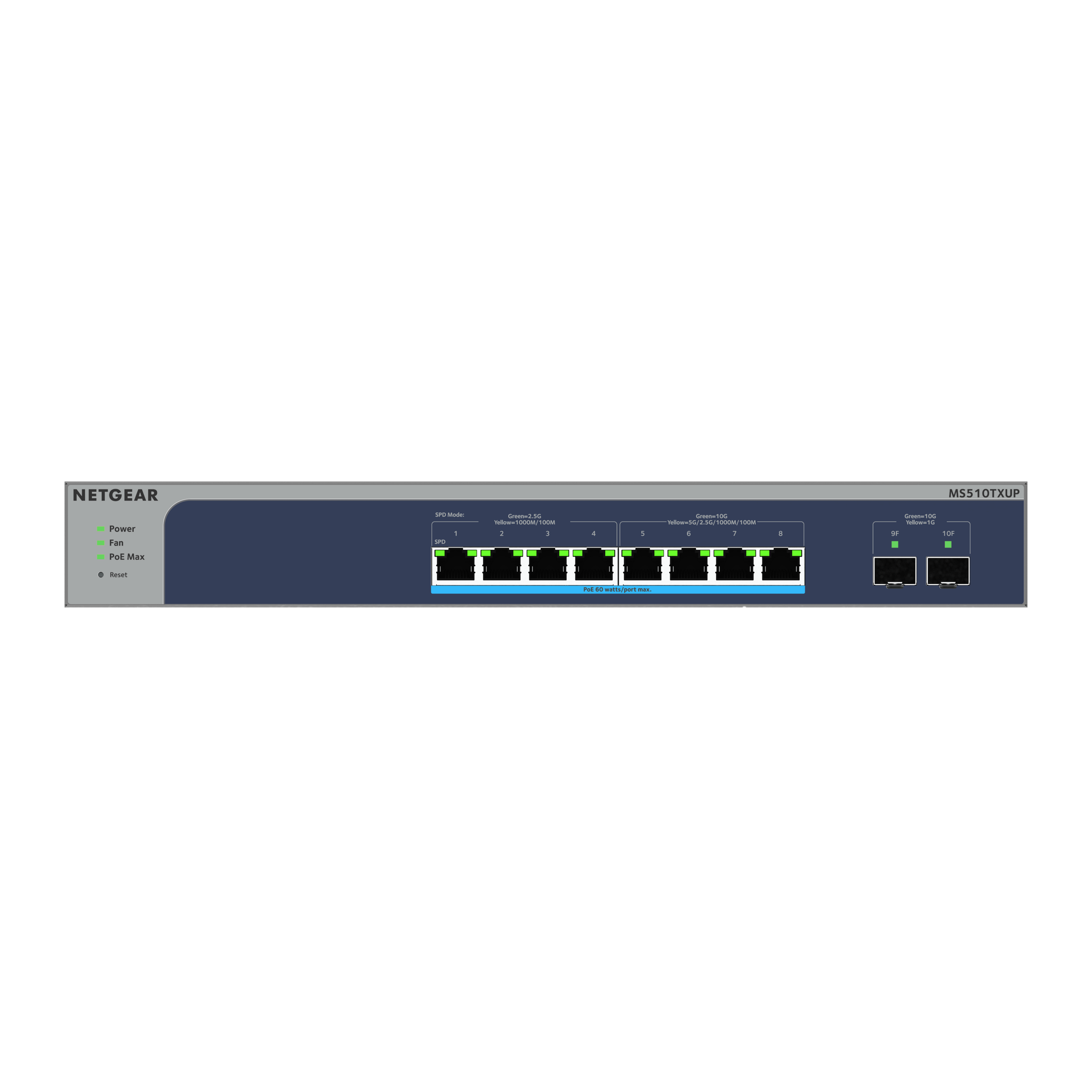

NETGEAR MS510TXUP Managed L2+ 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Gray (MS510TXUP100NAS)
Product overview
NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management \nThe NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.\n\n- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.\n- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).\n- 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port).\n- Layer 3 static routing with 32 routes (IPv4 and IPv6).\n- Uninterrupted PoE and advanced per port PoE controls.\n- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).\n- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
Features
- Provides 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 Access Point connectivity, IP surveillance and mobility
- Versatile PoE support with PoE+ and Ultra60 PoE++ for today’s and tomorrow’s PoE needs
- Easy-to-use web browser-based management GUI with configurable L2/L2+ network features like VLANs and QoS
- 10G speed on regular ports and uplink connectivity to core network
- Includes 1-year of Insight Premium or Pro subscription
- Managed by NETGEAR Insight - ideal with other NETGEAR Insight managed devices
- Provides an industry-leading Limited Lifetime warranty at no extra cost with product registration
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | MS510TXUP-100NAS |
| D&H SKU | MS510TXUP100NAS |
| UPC / GTIN | 606449152388 |
| MAC address table | 32000 entries |
| Switching capacity | 140 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 2 MB |
| Number of queues | 8 |
| Product color | Gray |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Mean time between failures (MTBF) | 1059519 h |
| Built-in processor | Yes |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| Cloud-managed | Yes |
| Internal memory | 256 MB |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Web-based management | Yes |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 1294.5888 BTU/h |
| Certification | CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
| Cables included | AC |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Rack rails | Yes |
| Password protection | Yes |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Noise level | 33 dB |
| Firmware upgradeable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Power consumption (max) | 380 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 295 W |
| Processor frequency | 1000 MHz |
| DHCP features | DHCPv6 snooping |
| IGMP snooping | Yes |
| Queue scheduling algorithms | WRR+SP |
| Access Control List (ACL) | Yes |
| Flash memory | 64 MB |
| Width | 12.6" (320 mm) |
| Depth | 8.11" (206 mm) |
| Height | 1.69" (43 mm) |
| Weight | 5.53 lbs (2.51 kg) |
