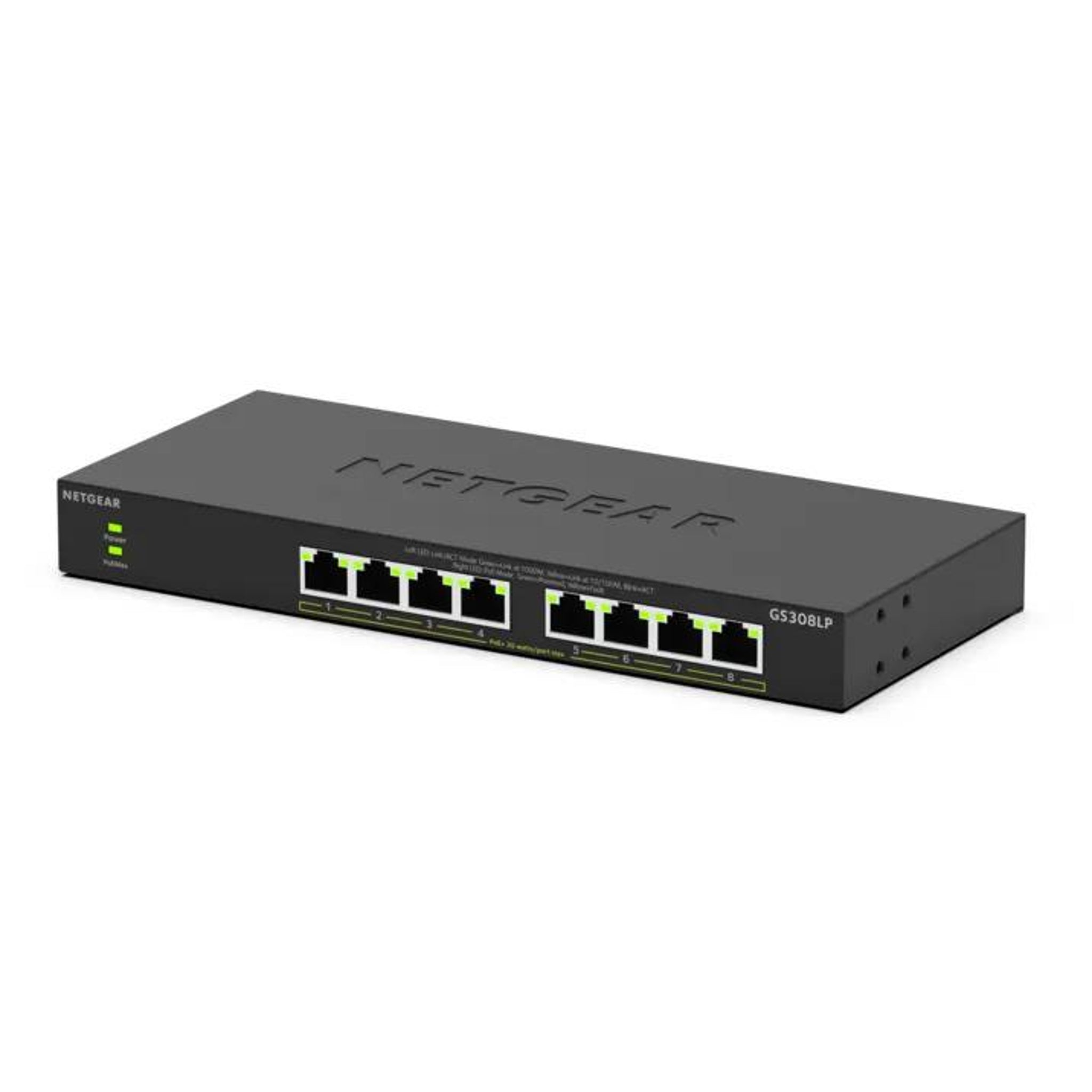

NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black (GS308LP100NAS)
Product overview
PLUG-AND-PLAY \nSimple set up with no software to install or configuration needed\n\n NON-BLOCKING SWITCHING \nNon-blocking switching architecture for maximum throughput at wire speed\n\n FANLESS DESIGN \nSilent operation makes this switch perfect for noise-sensitive environments\n\n VERSITILE MOUNTING OPTIONS \nInstall your switch on your desktop or mount it to your wall with the hardware provided in the box\n\n ENERGY EFFICIENT \nEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected\n\n FLEX PoE \nEasily increase you power budget on this switch to meet your changing power needs.
Features
- 8 Gigabit Ethernet ports
- Plug-and-play setup without configuration
- 8 PoE+ ports with a 62W total power budget
- Desktop installation
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS308LP-100NAS |
| D&H SKU | GS308LP100NAS |
| UPC / GTIN | 606449174724 |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, VCCI, KC, CB, Low Voltage Directive (LVD) |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| Latency (1 Gbps) | 2.6 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.192 MB |
| Number of queues | 8 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Throughput | 16 Gbit/s |
| Product color | Black |
| Wall mountable | Yes |
| Form factor | Desktop |
| Housing material | Metal |
| Rack mounting | Yes |
| Stackable | No |
| Input voltage | 54 V |
| Mean time between failures (MTBF) | 2752476 h |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| Auto-sensing | Yes |
| Half duplex | Yes |
| MAC address auto-learning supported | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 230.85 BTU/h |
| LED indicators | Yes |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5e |
| Auto-negotiation | Yes |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption (max) | 67.5 W |
| Input current | 1.25 A |
| Power source | DC |
| DC input voltage | 54 V |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries |
| Width | 9.29" (236 mm) |
| Depth | 4.02" (102 mm) |
| Height | 1.06" (27 mm) |
| Weight | 21.2 oz (600 g) |
