NETGEAR MS308 Unmanaged 2.5G Ethernet (100/1000/2500) Black (MS308100NAS)
Product overview

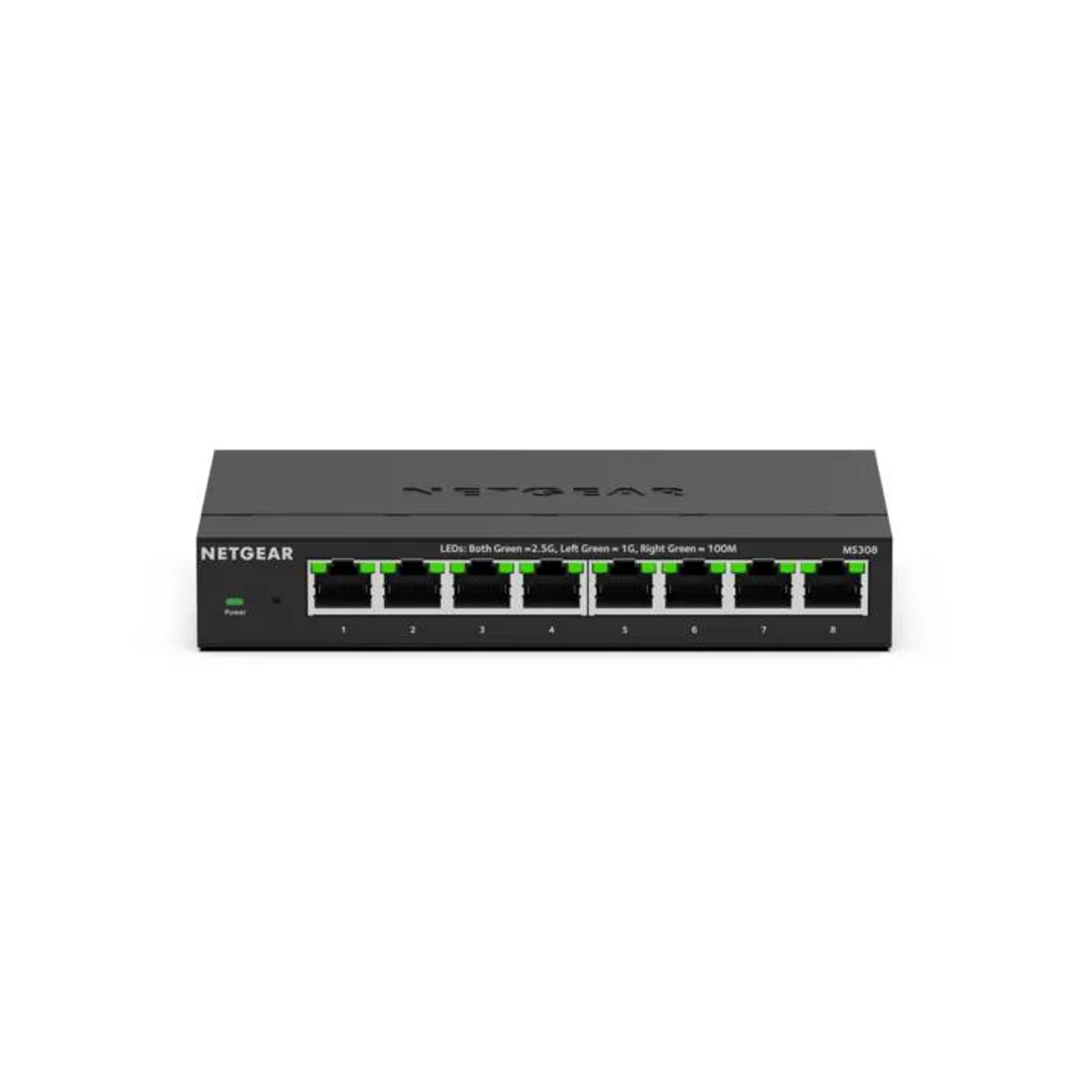

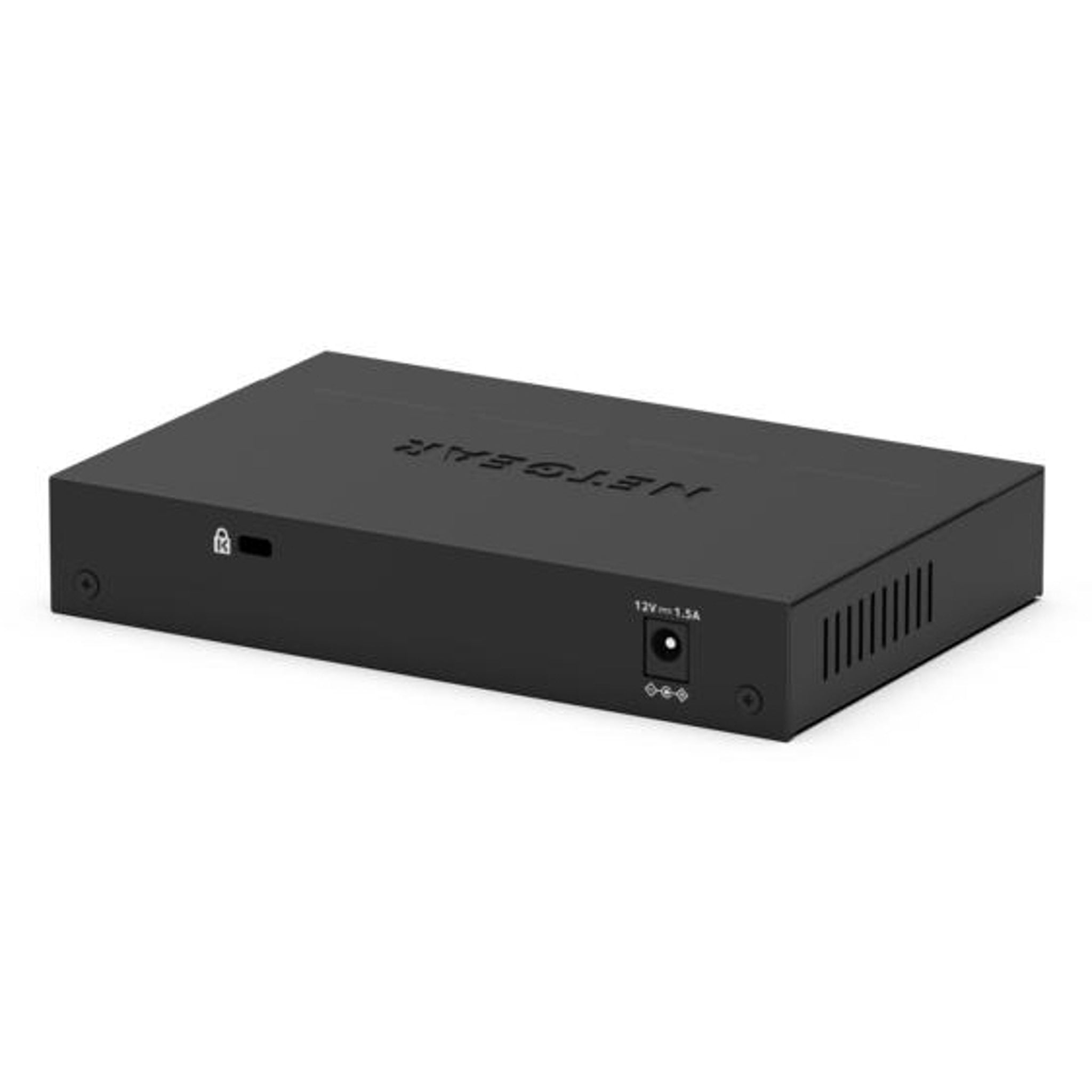

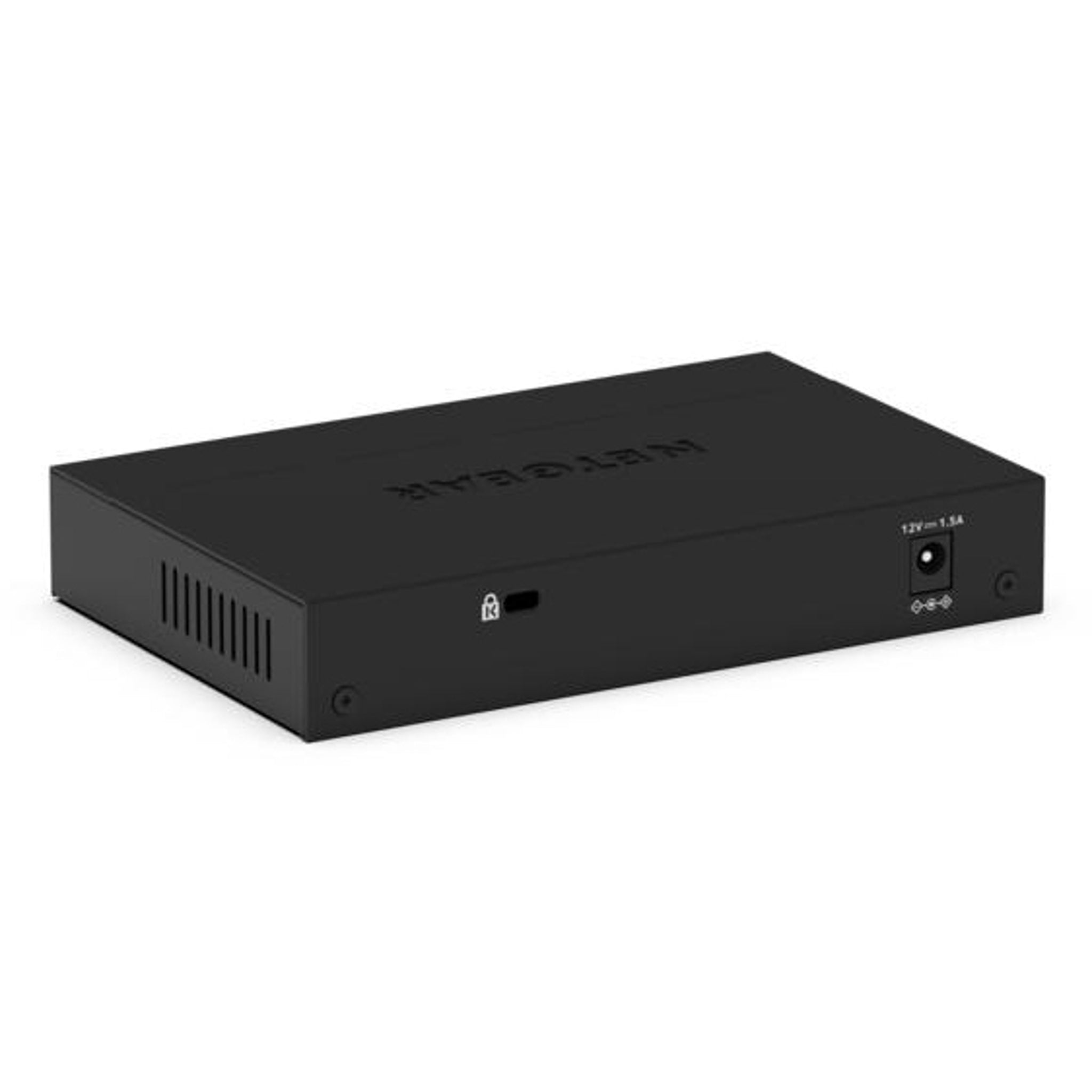

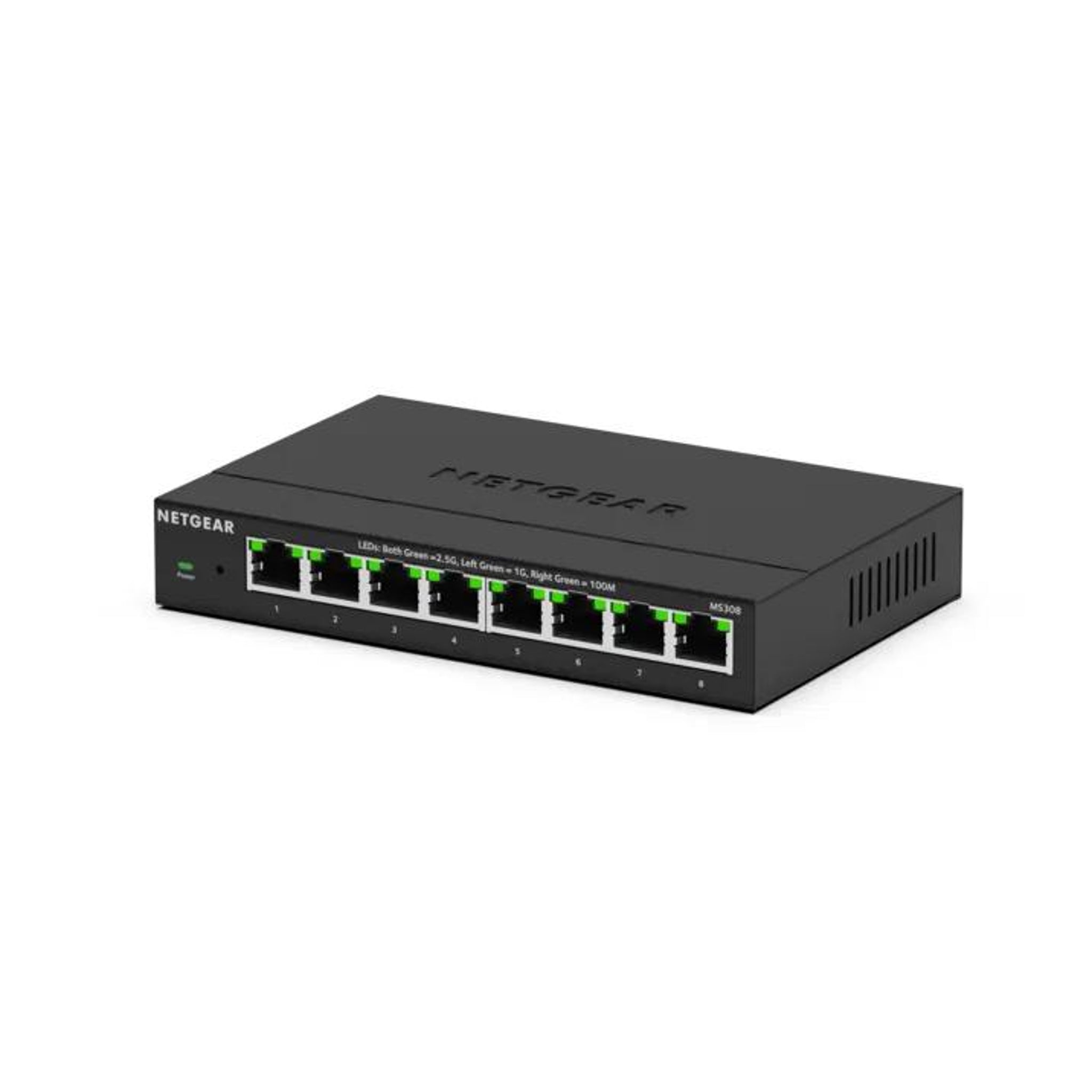

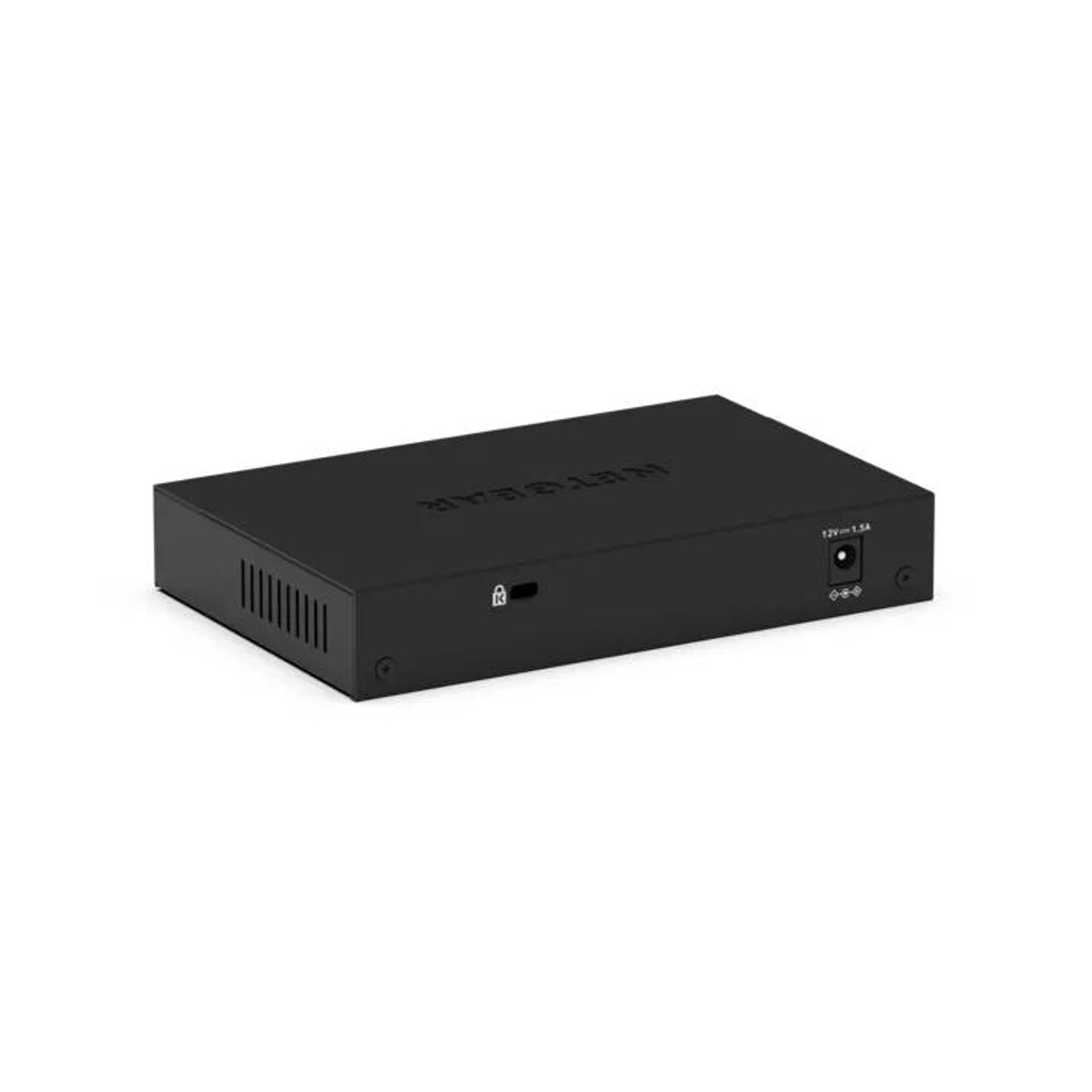

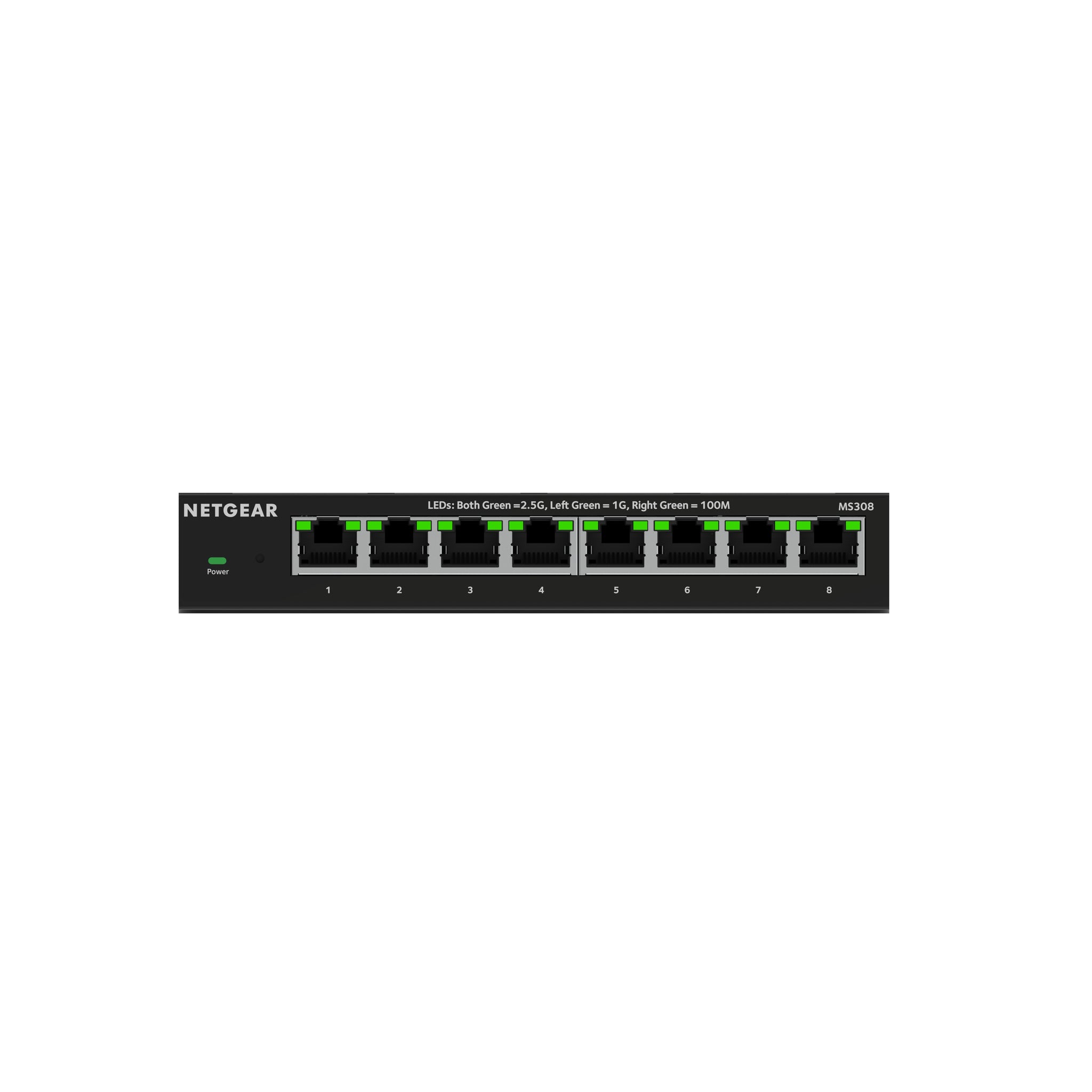

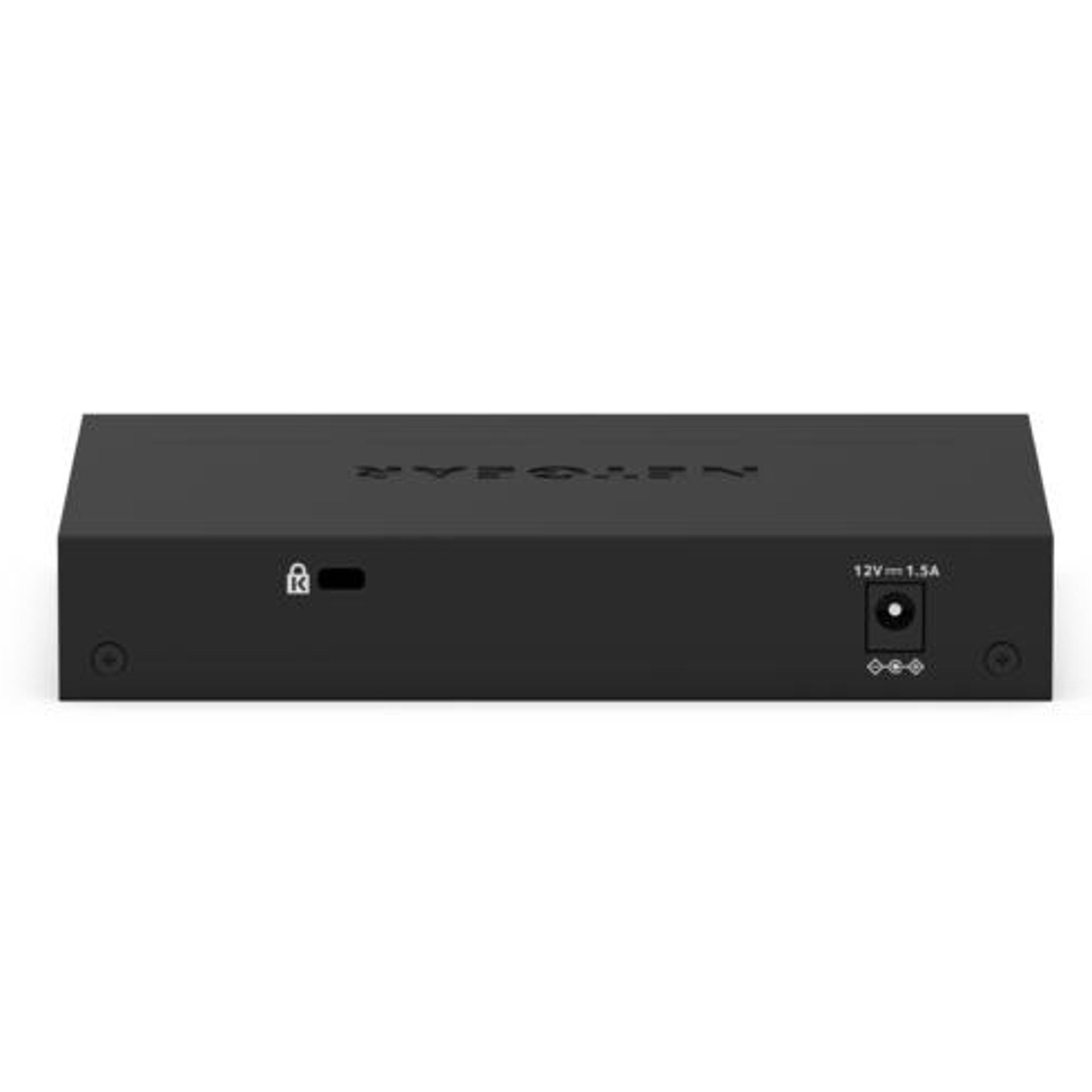

NETGEAR 8-Port 2.5G Multi-Gigabit Ethernet Unmanaged Switch\n\nThe NETGEAR 8-port 2.5G Multi-Gigabit Unmanaged Switch, MS308, offers businesses an affordable solution to upgrade their networks to multi-gig speeds. Featuring eight (8) 2.5G ports encased in durable metal, the MS308 Multi-Gigabit Ethernet Switch is designed for versatility—it can be placed on a desk, mounted on a wall, or under a table using the included kit.\n\n RELIABLE PERFORMANCE \nSuperior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise\n\n ENERGY EFFICIENT \nEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected\n\n PLUG-AND-PLAY \nNo software to install. No configuration needed. Zero maintenance required\n\n SILENT OPERATION \nThe fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments\n\n VERSATILE MOUNTING OPTIONS \nInstall your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Features
- 8 Ethernet ports supporting 100Mbps, 1Gbps and 2.5Gbps
- Plug-and-play setup without configuration
- Metal enclosure
- Desktop or wall installation
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | MS308-100NAS |
| D&H SKU | MS308100NAS |
| UPC / GTIN | 606449170795 |
| Compliance certificates | CCC, Low Voltage Directive (LVD) |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 3.72 Mpps |
| Latency (1 Gbps) | 4.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet buffer memory | 1 MB |
| Product color | Black |
| Wall mountable | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Stackable | No |
| Number of fans | 0 fan(s) |
| Input voltage | 12 V |
| Mean time between failures (MTBF) | 3309911 h |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Cable length detection | Yes |
| Half duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| LED indicators | Yes |
| Auto MDI/MDI-X | Yes |
| Noise level | 0 dB |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power consumption (max) | 7.98 W |
| Input current | 1 A |
| Power source | DC |
| DC input voltage | 12 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.06" (27 mm) |
| Weight | 15.2 oz (430 g) |
| Warranty period | 3 year(s) |
