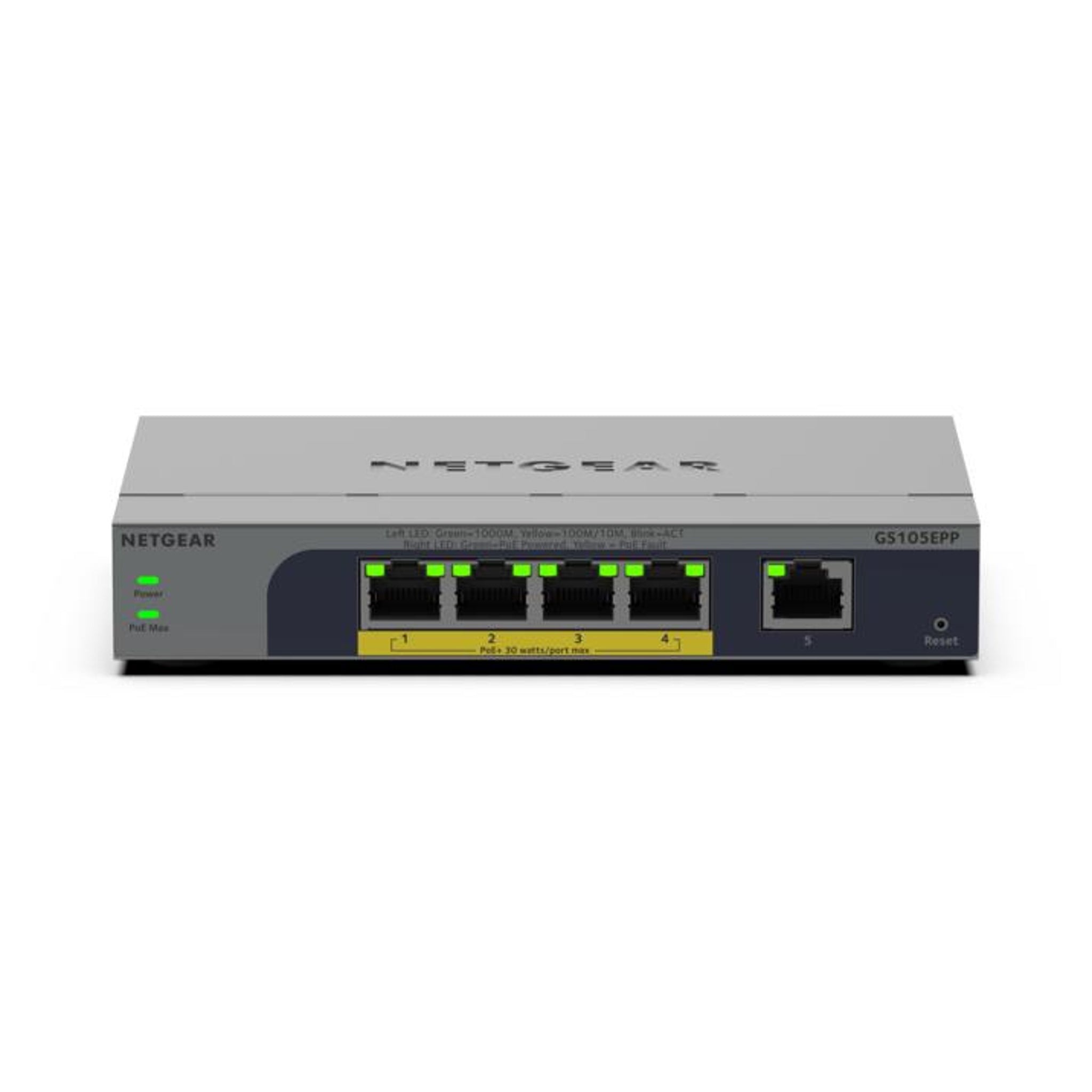

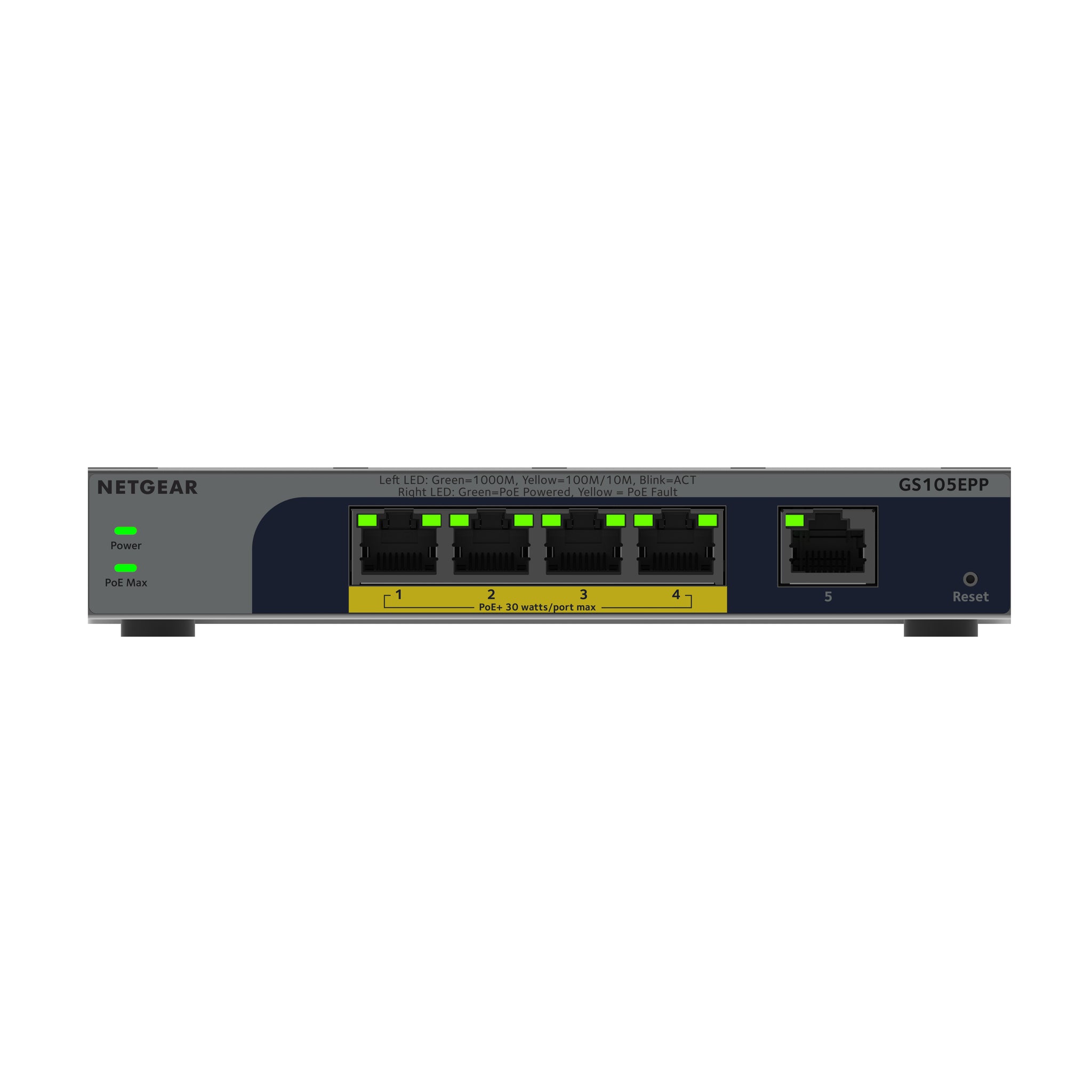

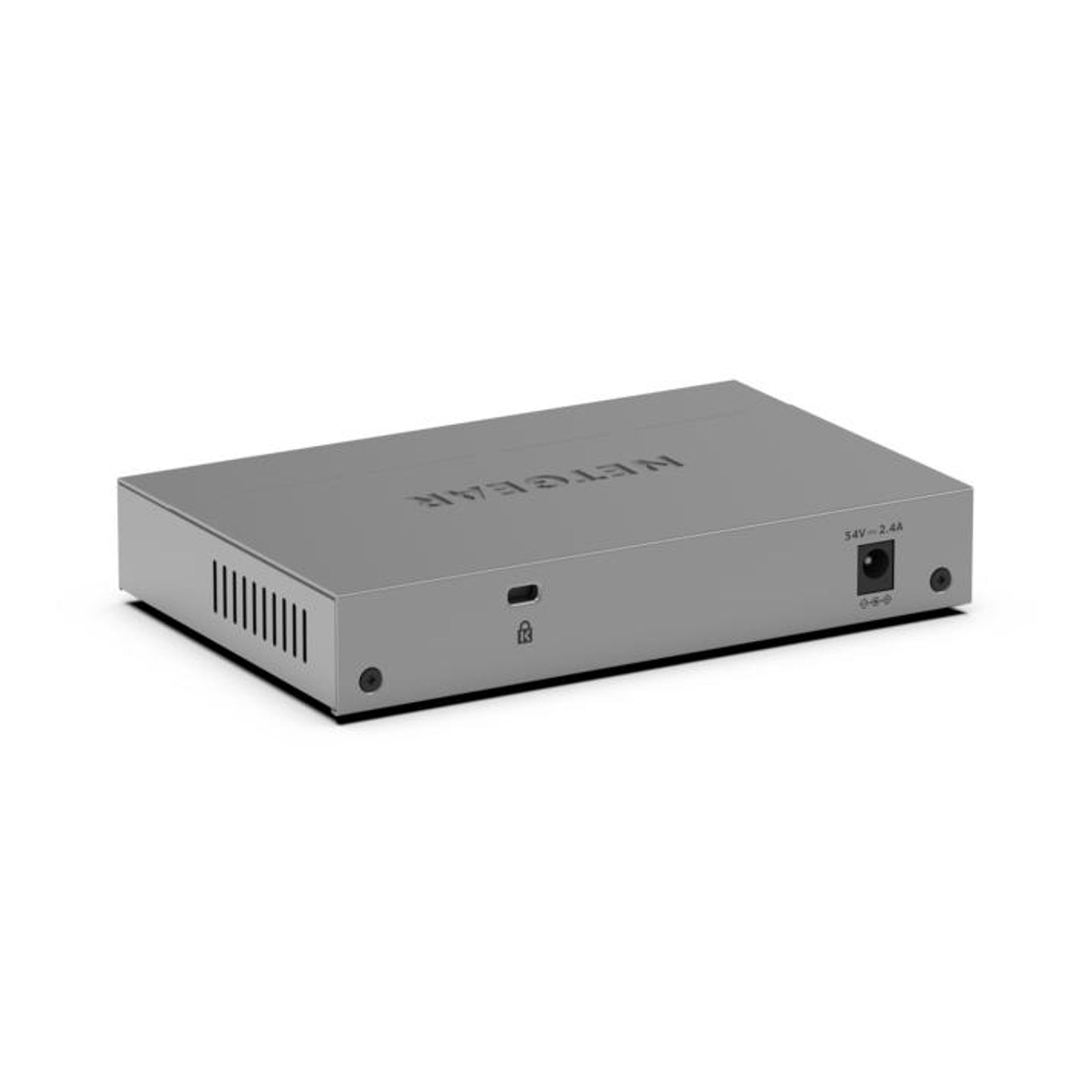

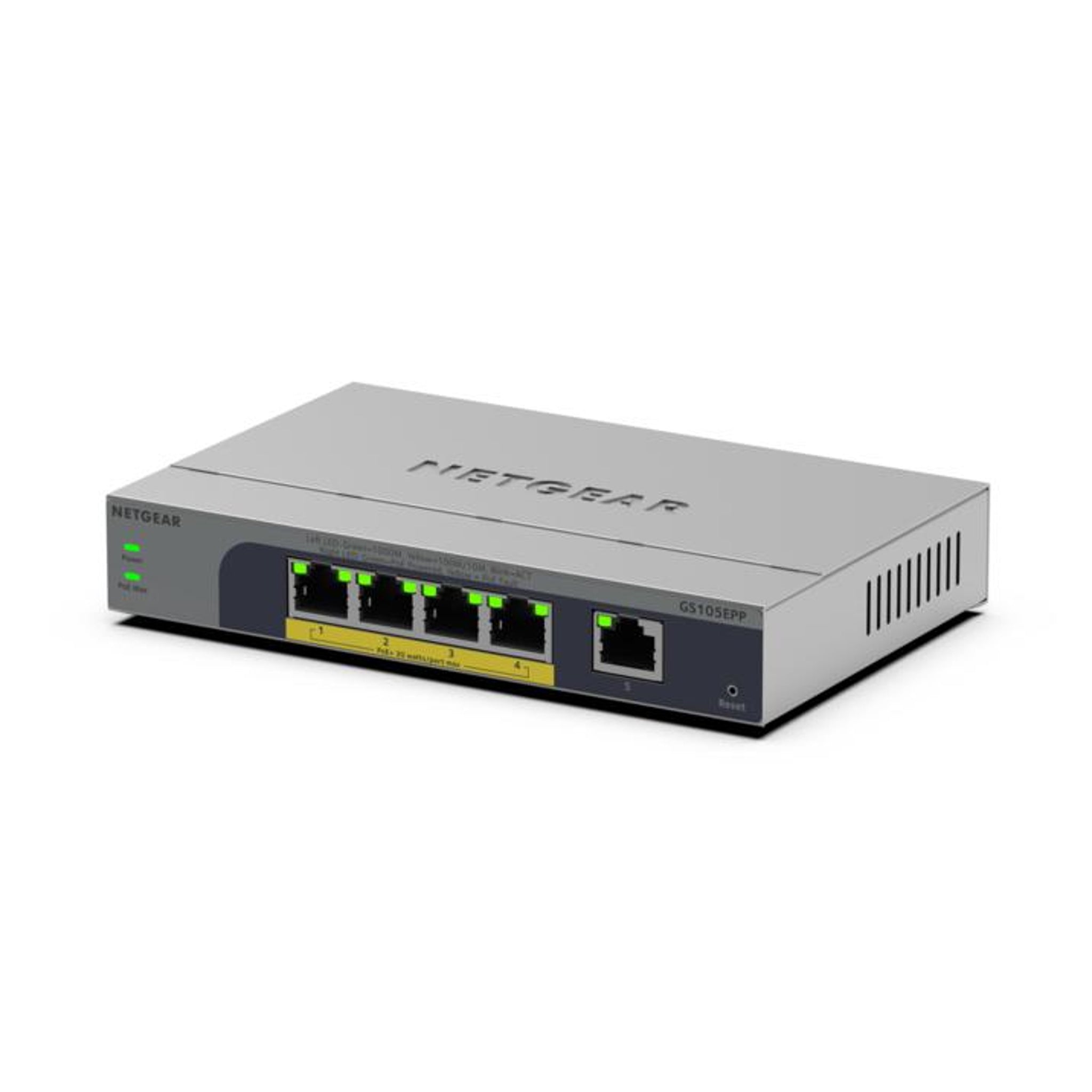

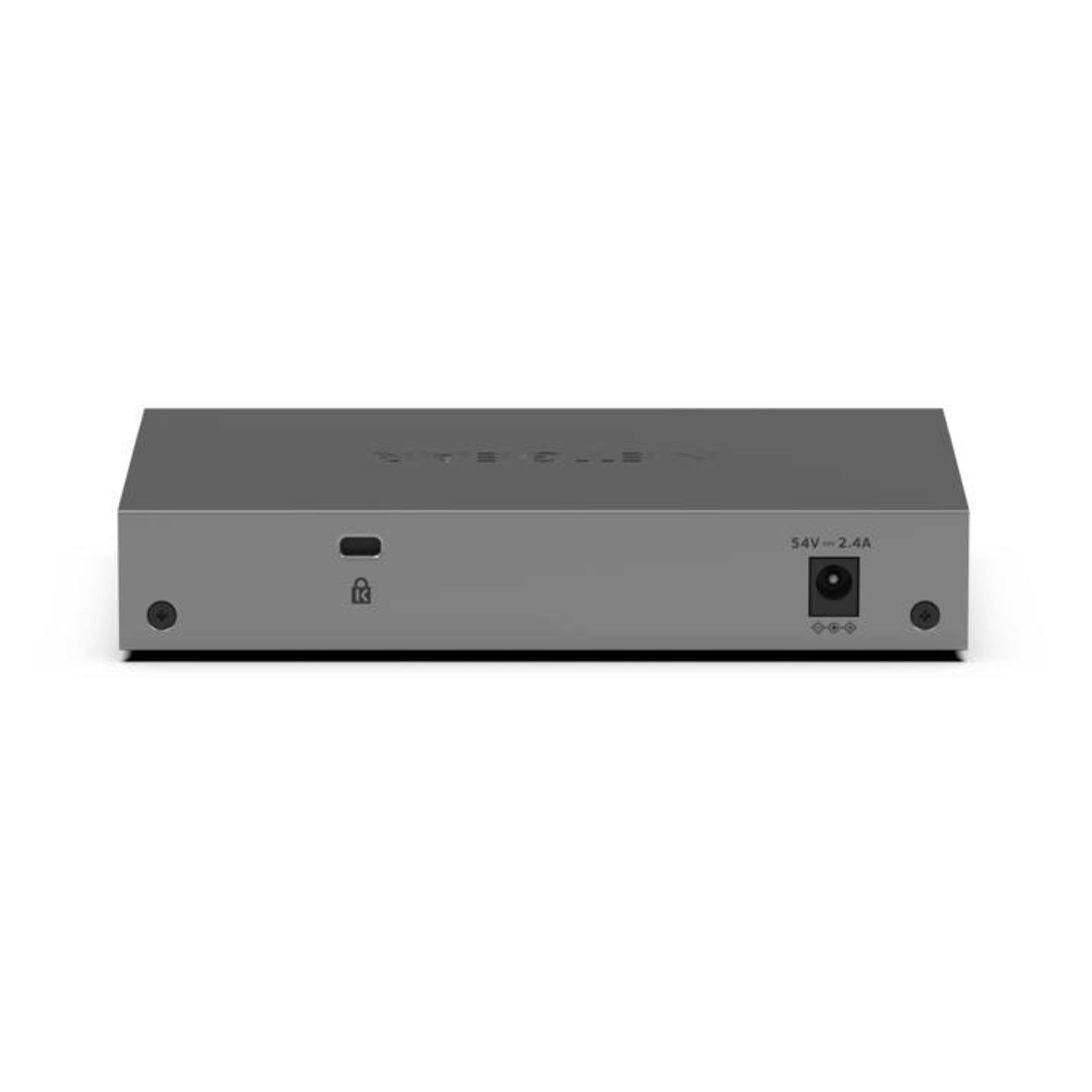

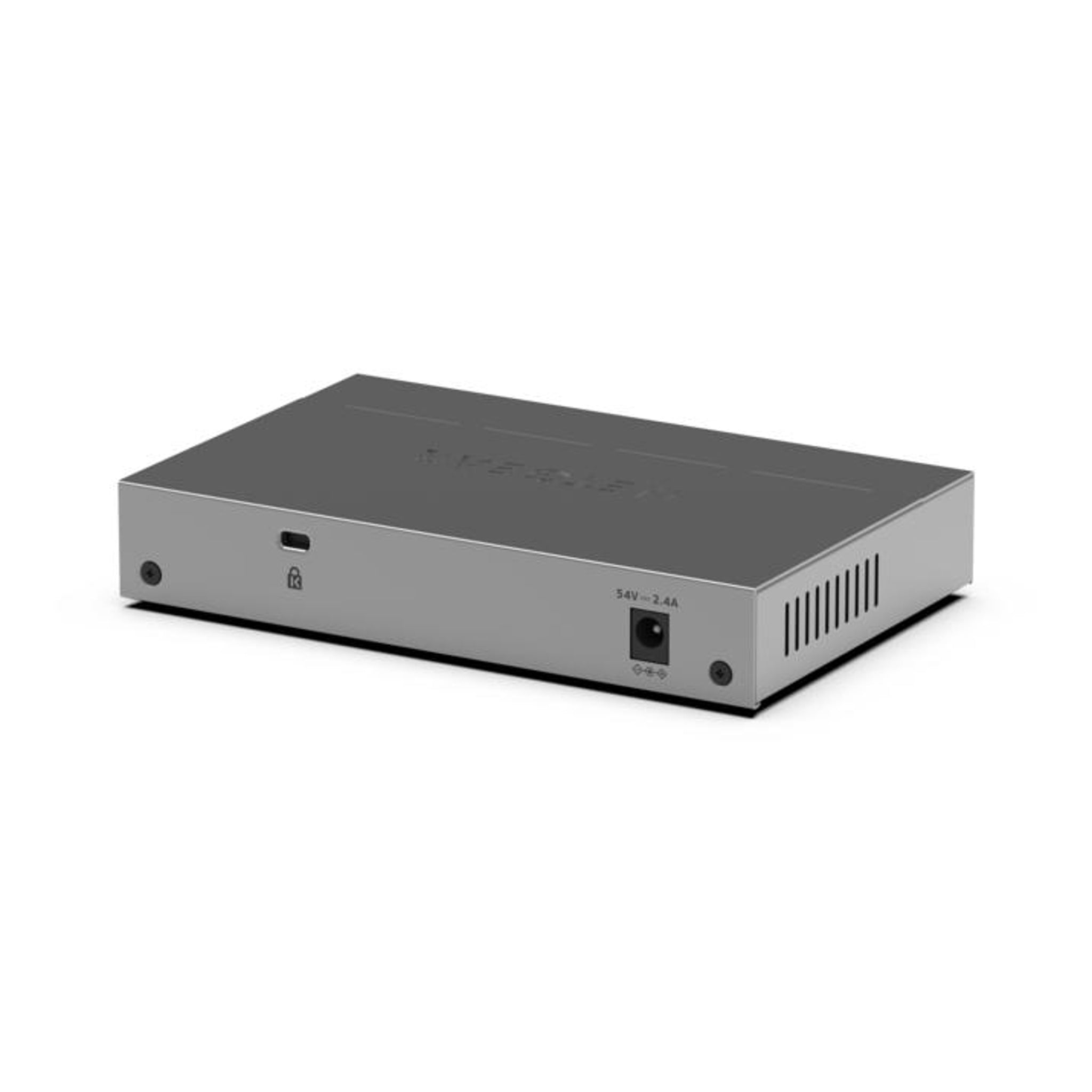

NETGEAR GS105EPP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Gray (GS105EPP100NAS)
Product overview
EASY POE CONTROLS \n\nManage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices\n\n GIGABIT ETHERNET \n\n5 ports provide gigabit Ethernet connectivity to your devices\n\n VLANS \n\nPort-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources\n\n FANLESS DESIGN \n\nSilent operation makes this switch perfect for noise-sensitive environments\n\n VERSATILE MOUNTING OPTIONS \n\nPlace your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments\n\n ENERGY EFFICIENT \n\nEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Features
- 5 Gigabit Ethernet ports
- Web-based Easy Smart management
- 4 PoE+ ports with a 120W budget
- VLAN and QoS controls
- Fanless operation
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS105EPP-100NAS |
| D&H SKU | GS105EPP100NAS |
| UPC / GTIN | 606449174649 |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC) |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.192 MB |
| Product color | Gray |
| Form factor | Desktop/Wall-Mounting |
| Housing material | Metal |
| Rack mounting | No |
| Stackable | No |
| Mean time between failures (MTBF) | 853770 h |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 3.24 BTU/h |
| Certification | CB, CE LVD, CSA |
| Quick start guide | Yes |
| Manual | Yes |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption (max) | 137.8 W |
| Input current | 1.66 A |
| Power source | AC/DC |
| DC input voltage | 54 V |
| Power supply included | No |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.06" (27 mm) |
| Weight | 14.1 oz (400 g) |
