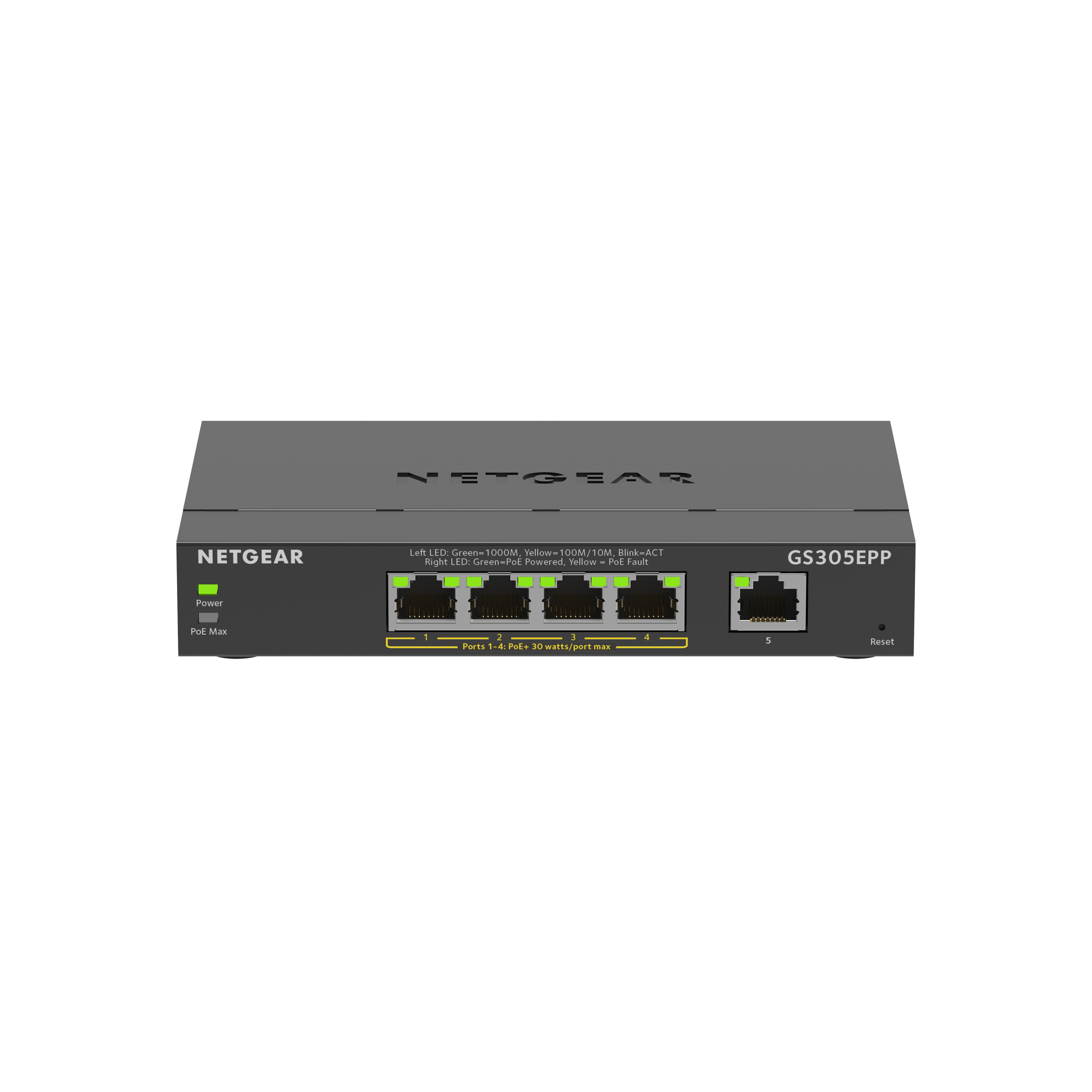

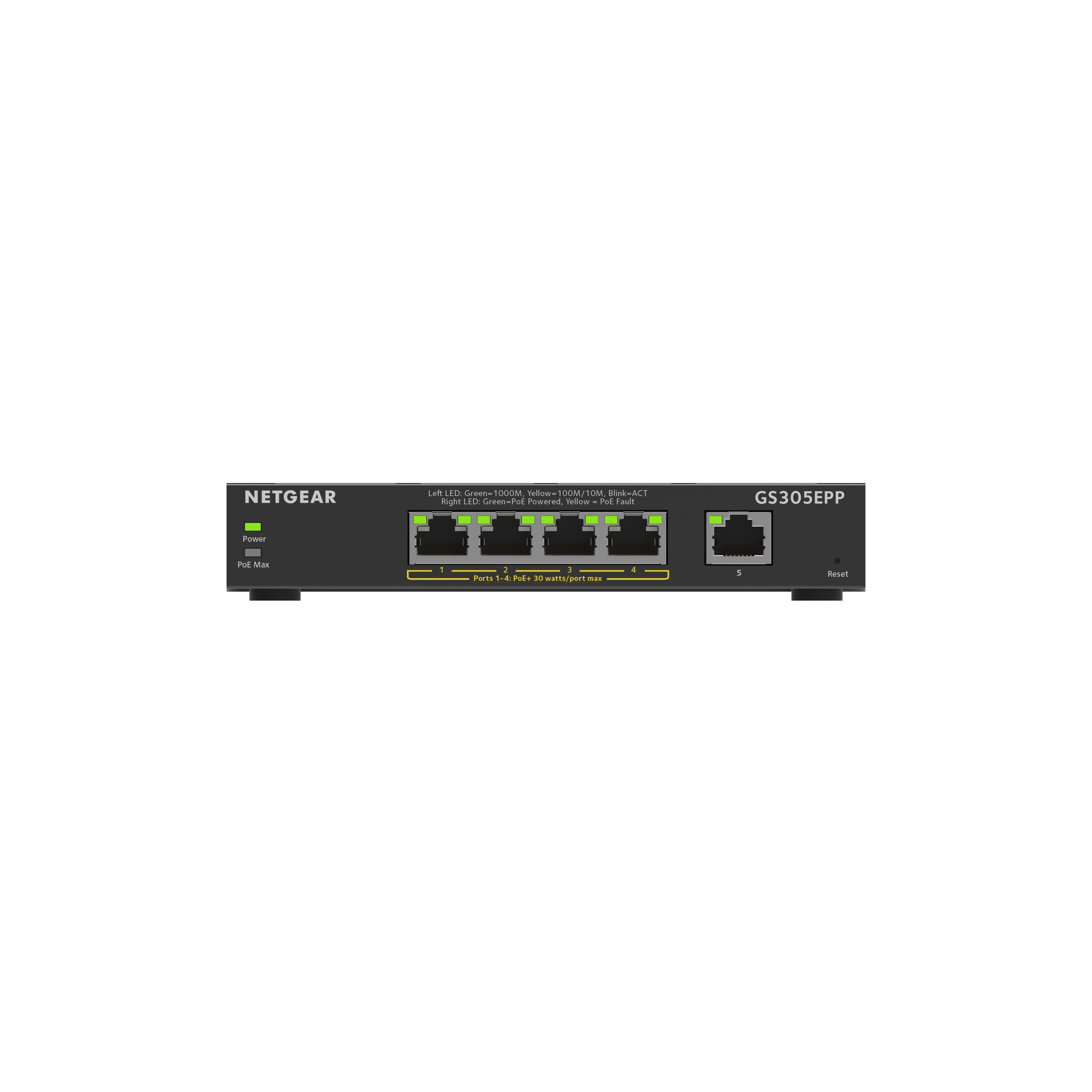

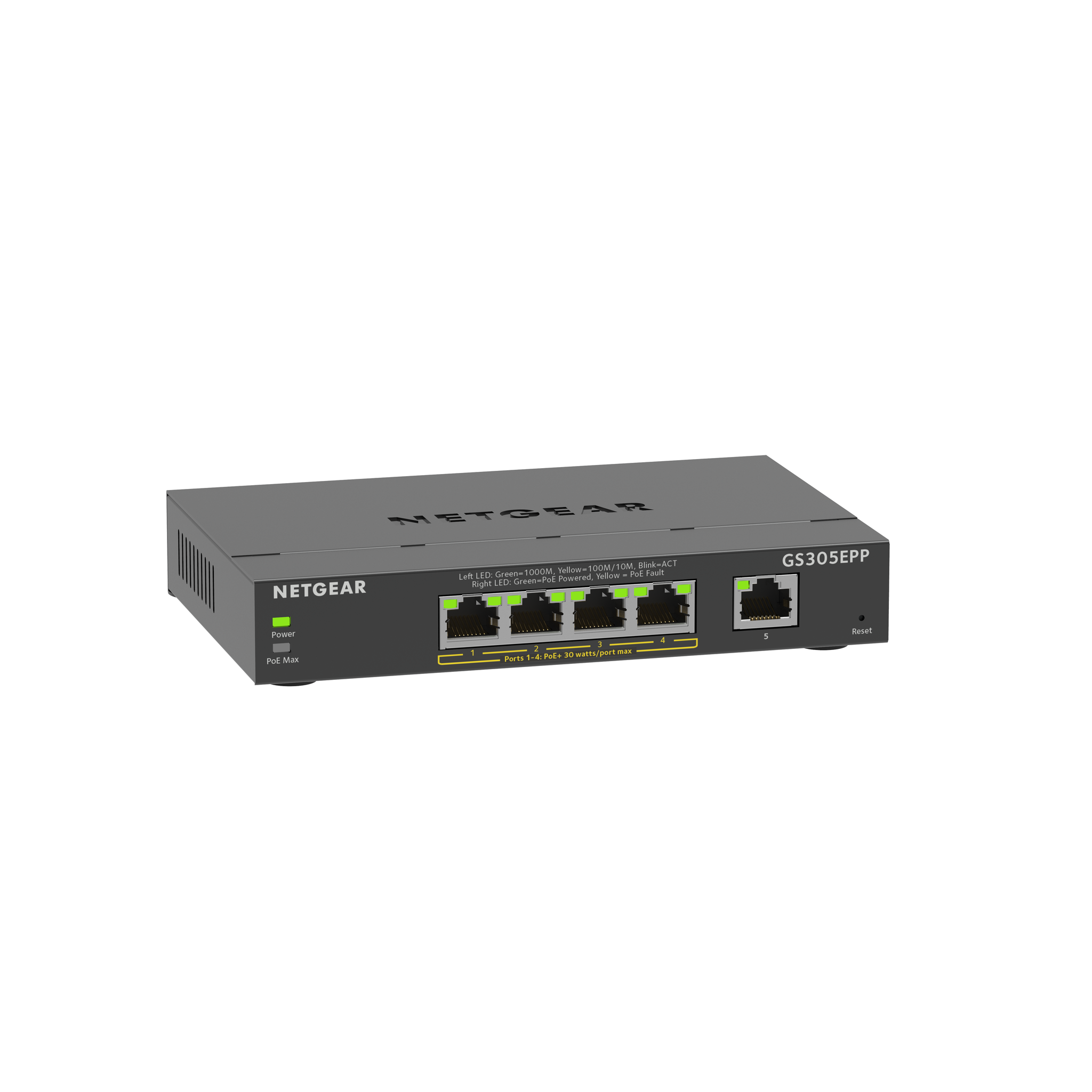

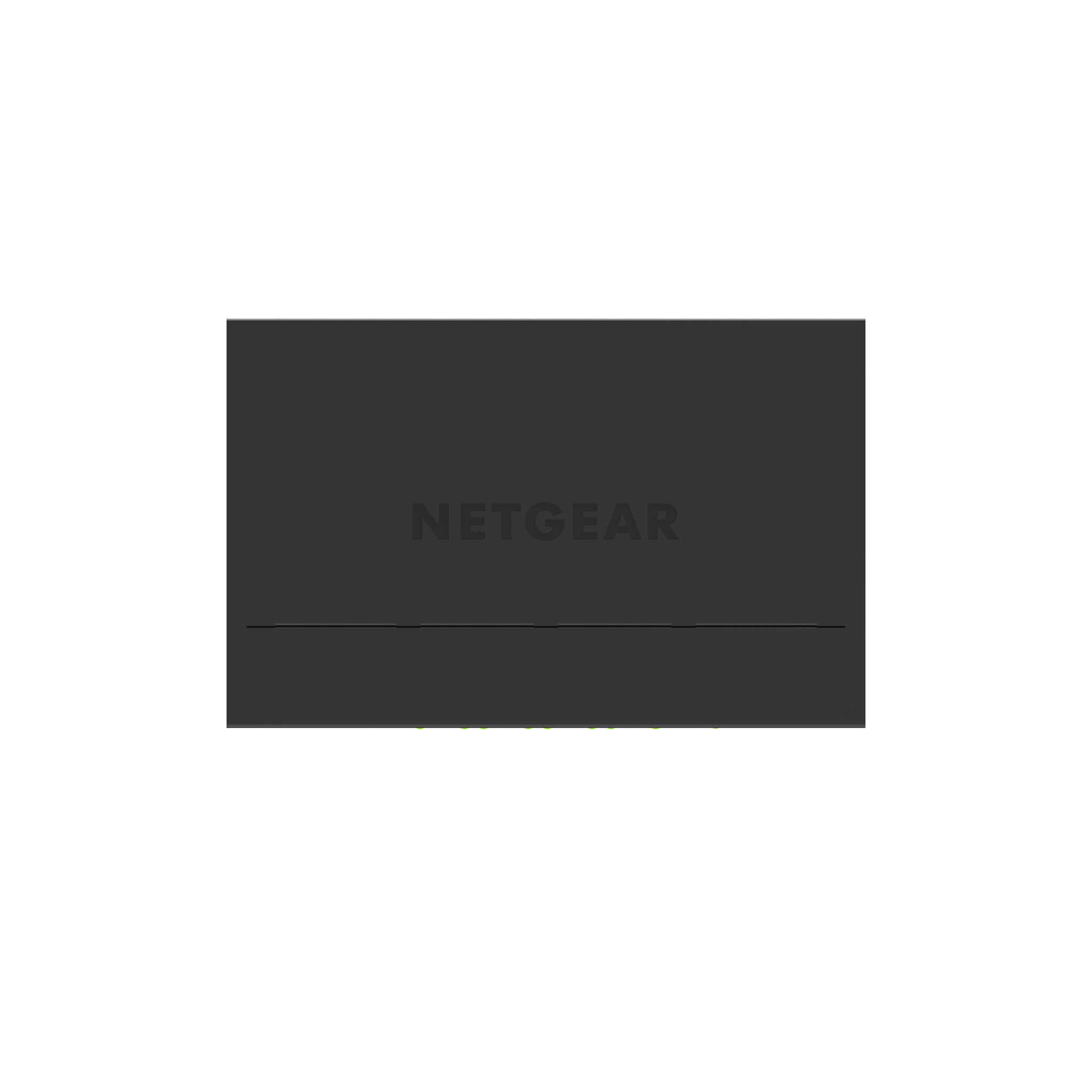

NETGEAR GS305EPP Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black (GS305EPP100NAS)
Product overview
Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EPP offers 120W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.\n \nNew and improved Smart Managed Plus switches \nAlong with the already great Smart Managed Plus features, GS305EPP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language support\n\n Why GS305EPP? \n- Cost-effective business networking management features: VLAN, QoS, advanced PoE controls, etc.\n- Data security and network separation to safeguard your business.\n- Advanced per port PoE controls (including power allocation override) and remote enable/disable/power cycle.\n- Smart Managed Plus switch that now provides PoE+ to power devices such as wireless APs, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices.\n\n Why 300 Series NETGEAR Smart Managed Plus? \n- NETGEAR has the largest PoE switch portfolio in the market.\n- Provides both basic and advanced management features at a cost-effective price for SMBs.\n- Uninterrupted PoE and PoE controls in a Smart Plus switch.\n- Reliability of the NETGEAR switches.
Features
- 5 Gigabit Ethernet ports
- Web-based Easy Smart management
- 4 PoE+ ports with a 120W budget
- VLAN and QoS controls
- Fanless operation
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS305EPP-100NAS |
| D&H SKU | GS305EPP100NAS |
| UPC / GTIN | 606449153170 |
| MAC address table | 4000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.192 MB |
| Product color | Black |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 853770 h |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | Y |
| Multicast support | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Web-based management | Yes |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Certification | CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Password protection | Yes |
| LED indicators | Activity, Link, PoE, Power, Speed, System |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Loop protection | Yes |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.06" (27 mm) |
| Weight | 14.1 oz (400 g) |
