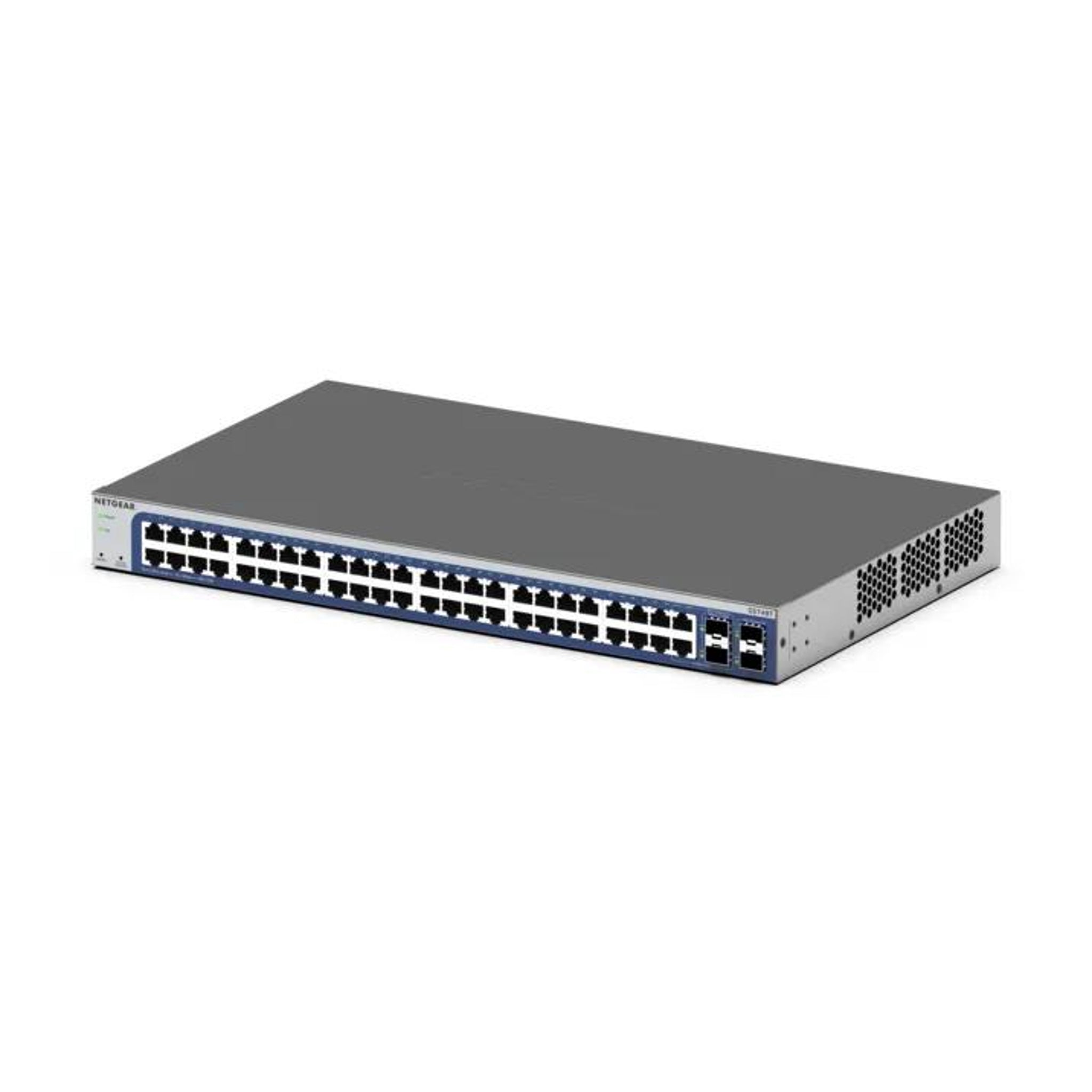

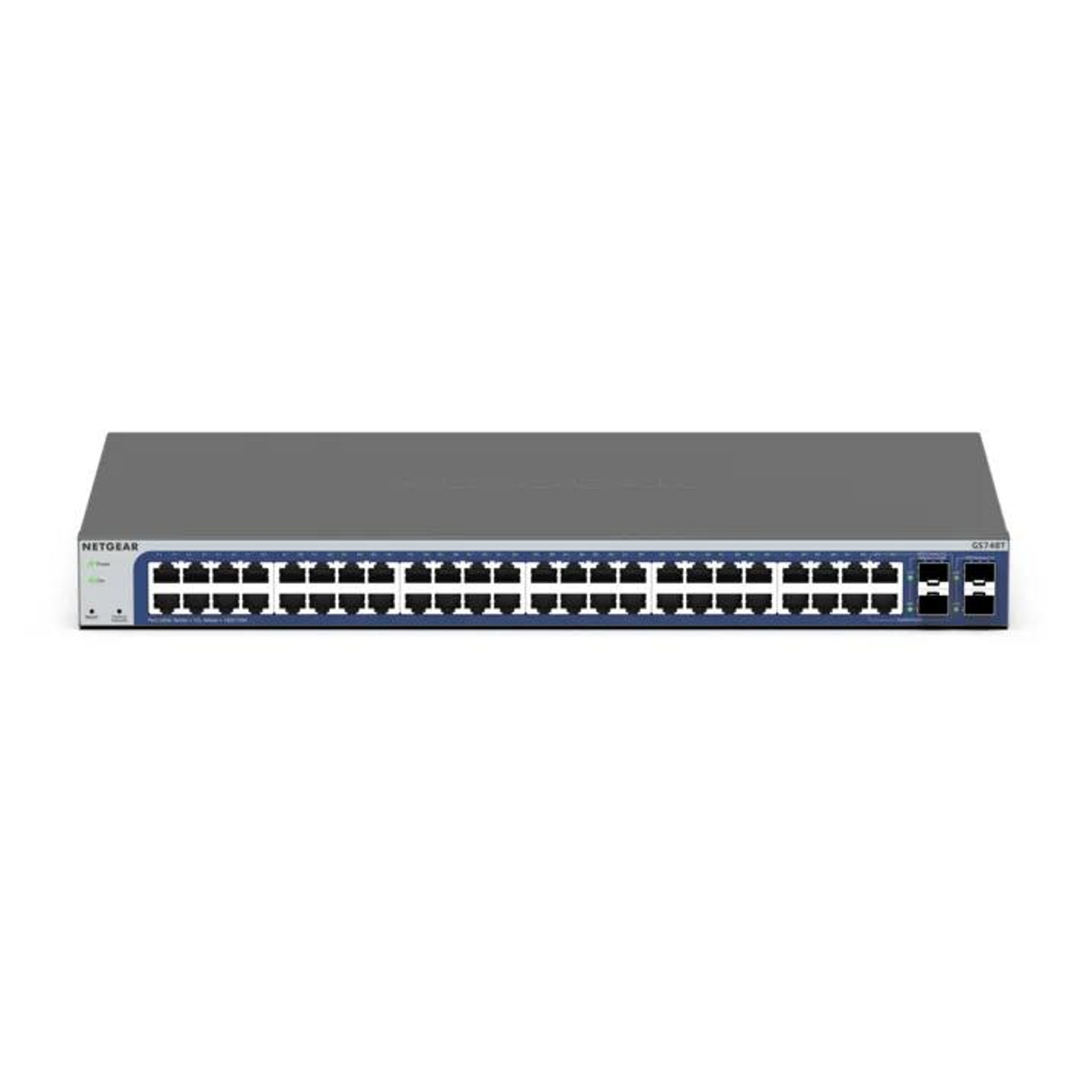

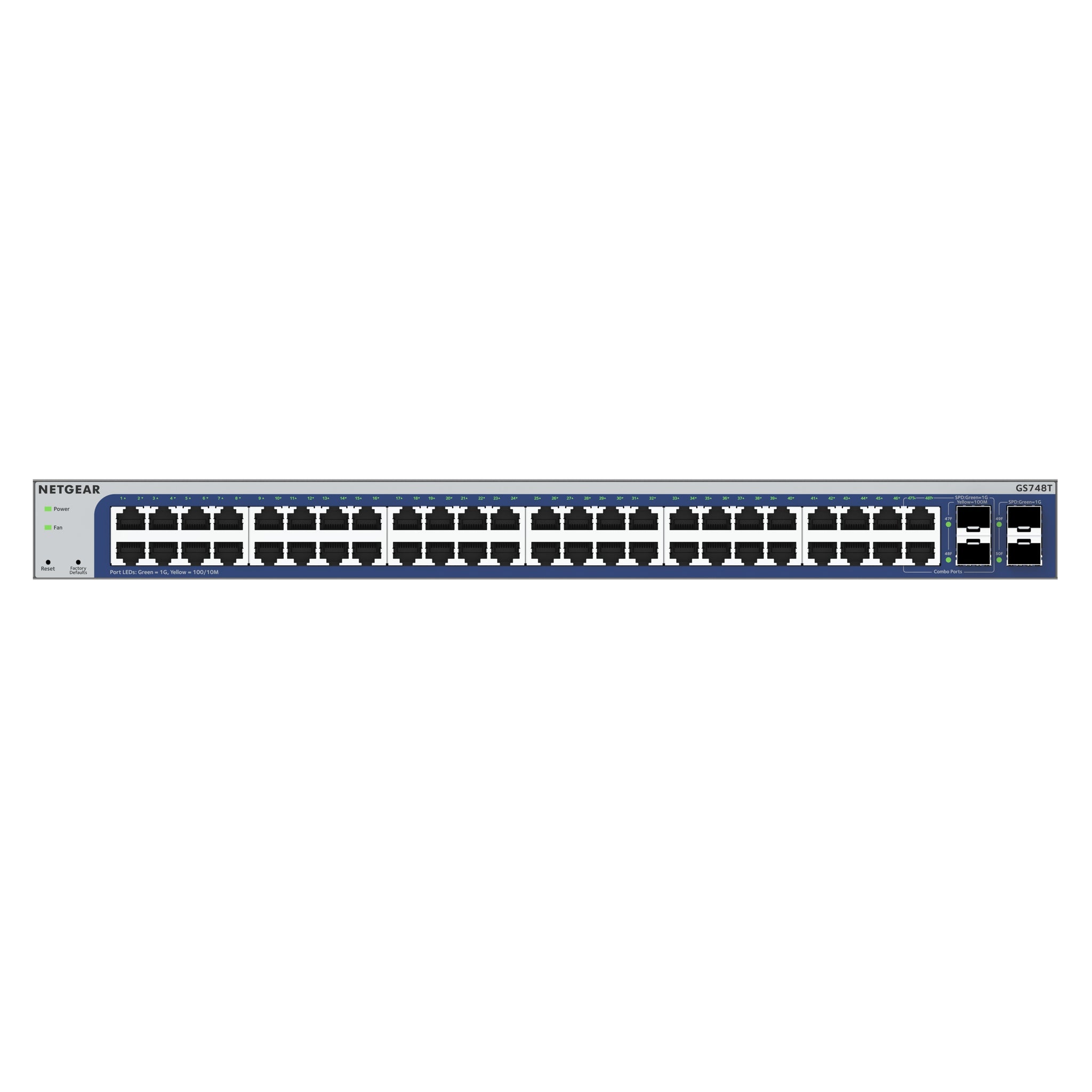

NETGEAR GS748T Managed L2/L3/L4 Fast Ethernet (10/100) 1U Black (GS748T600NAS)
Product overview
NETGEAR GS748T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management\n\nTotal Network Solution helps you get the most out of your network\n\nEasily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.\n\nNETGEAR INSIGHT REMOTE MANAGEMENT\nManage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.\n
Features
- 48 Gigabit copper ports (2 share SFP combo interfaces), plus 2 dedicated SFP ports
- Smart management
- Layer 2 and Layer 3 Lite features
- Optional Insight cloud management
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS748T-600NAS |
| D&H SKU | GS748T600NAS |
| UPC / GTIN | 606449169201 |
| MAC address table | 16000 entries |
| Switching capacity | 100 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Number of static routes | 32 |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Mean time between failures (MTBF) | 390728 h |
| Security algorithms | 802.1x RADIUS, HTTPS, SSL/TLS |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 512 |
| Networking standards | IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Web-based management | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Certification | CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC |
| Cables included | AC |
| Manual | Yes |
| LED indicators | Activity, Link, Power |
| Noise level | 37.2 dB |
| Firmware upgradeable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 2 |
| Combo SFP ports quantity | 2 |
| Power consumption (typical) | 41.1 W |
| AC input voltage | 100 - 240 V |
| Power source | AC/DC |
| Power over Ethernet (PoE) | No |
| Management protocols | SNMP v1/v2 |
| Supported network protocols | IP |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Width | 17.3" (440 mm) |
| Depth | 10.1" (257 mm) |
| Height | 1.69" (43 mm) |
| Weight | 7.63 lbs (3.46 kg) |
