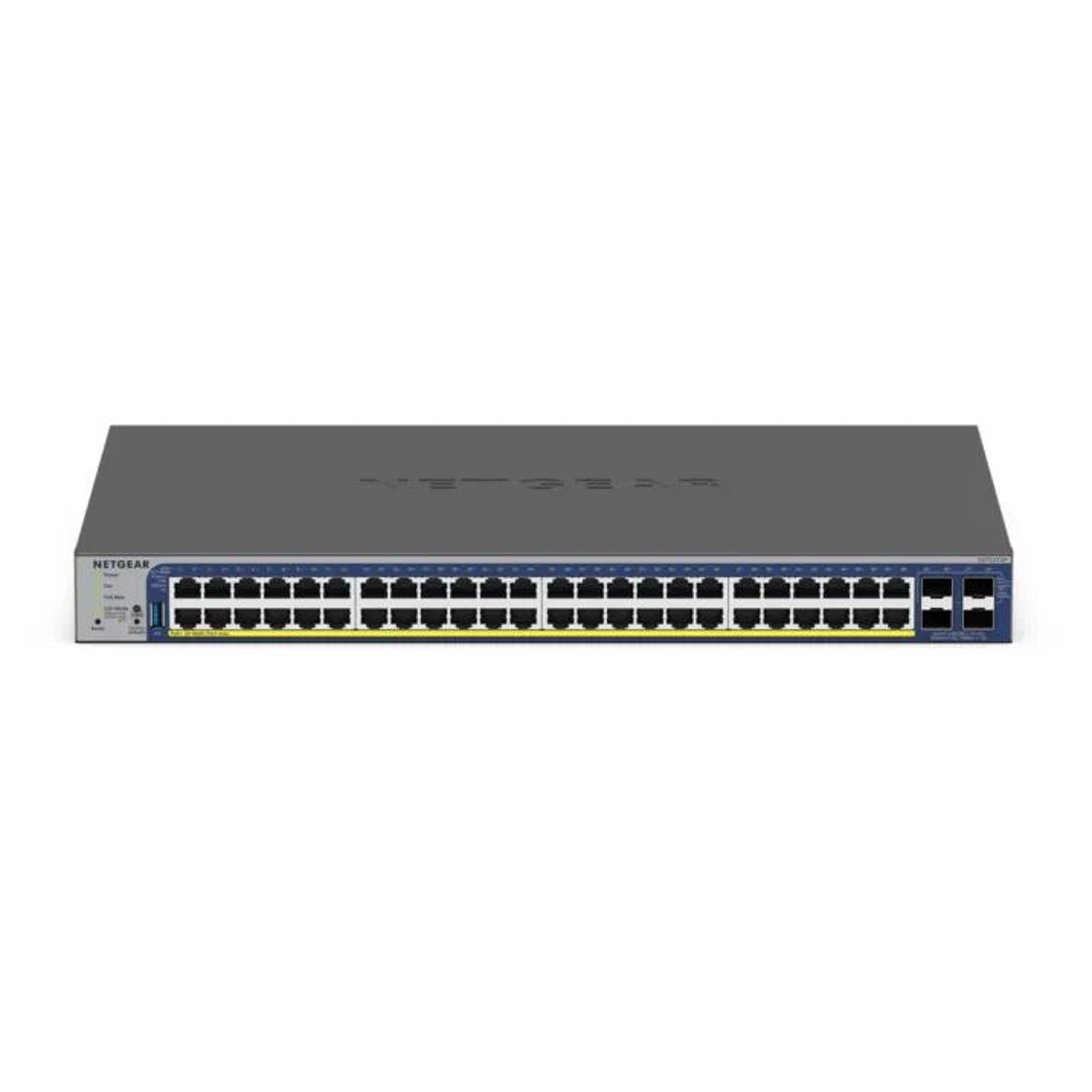

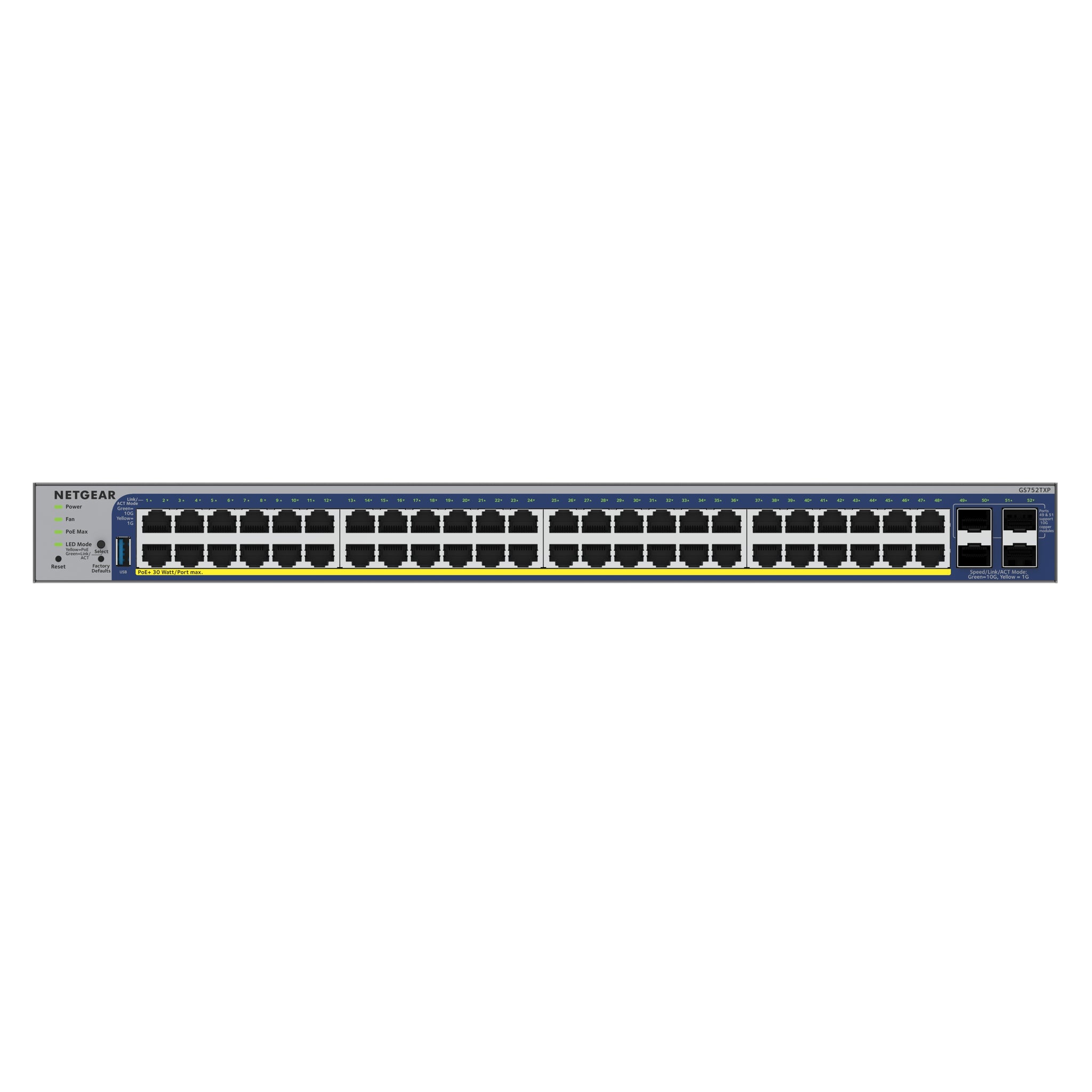

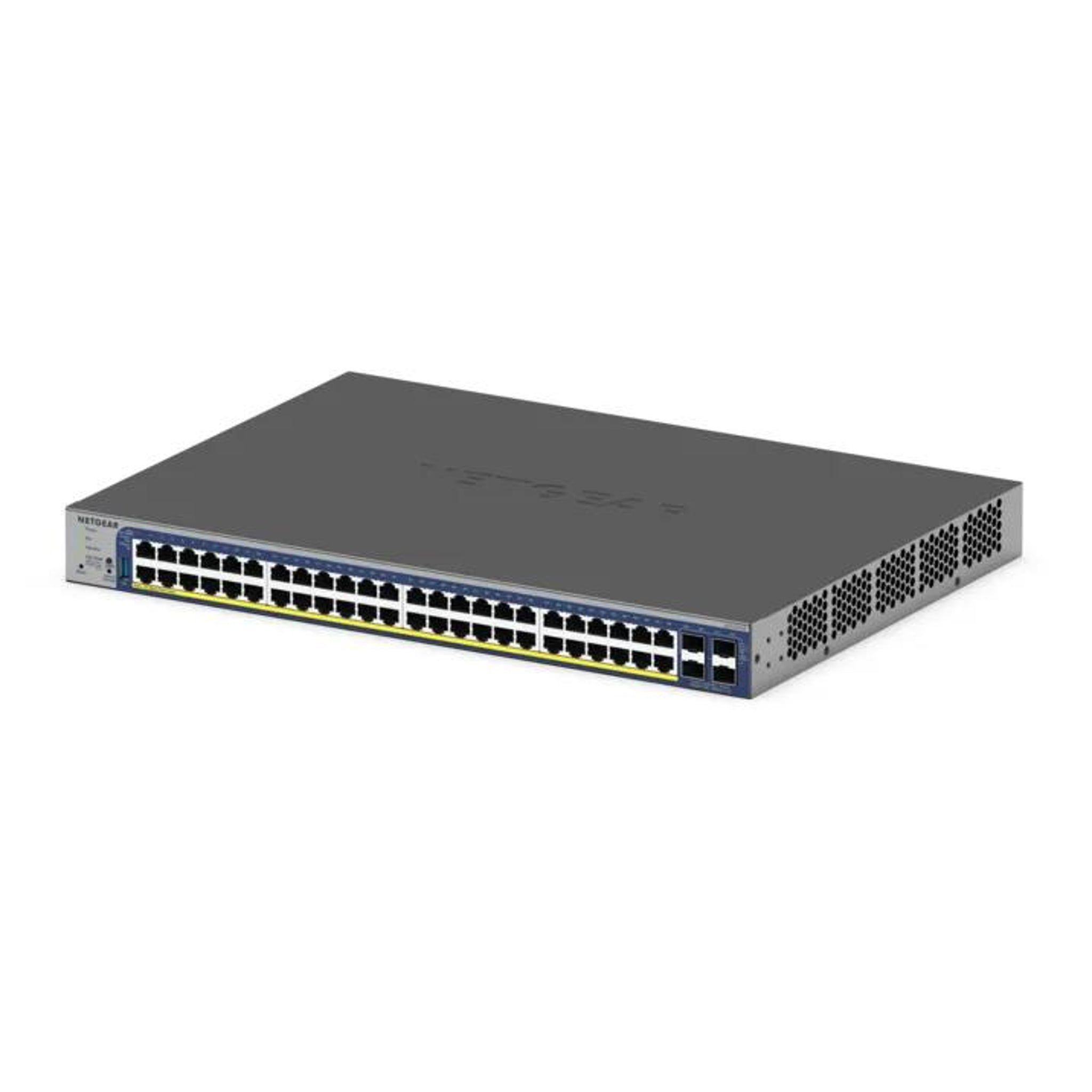

NETGEAR GS752TXPv3 Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black (GS752TXP300NAS)
Product overview
Total Network Solution helps you get the most out of your network \nEasily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Features
- 48 Gigabit Ethernet ports and 4 10G SFP+ uplinks
- Smart management
- 48 PoE+ ports with a 380W budget
- Local management and optional Insight cloud management
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS752TXP-300NAS |
| D&H SKU | GS752TXP300NAS |
| UPC / GTIN | 606449171174 |
| MAC address table | 16000 entries |
| Packet buffer memory | 16 MB |
| Latency (10 Gbps) | 4.107 µs |
| Static route | Yes |
| Number of static routes | 32 |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Stackable | Yes |
| Mean time between failures (MTBF) | 1296949 h |
| Built-in processor | Yes |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1as, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Noise level | 36.6 dB |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Flash memory | 64 MB |
| Width | 17.3" (440 mm) |
| Depth | 13.6" (345 mm) |
| Height | 1.69" (43 mm) |
| Weight | 12.2 lbs (5.54 kg) |
