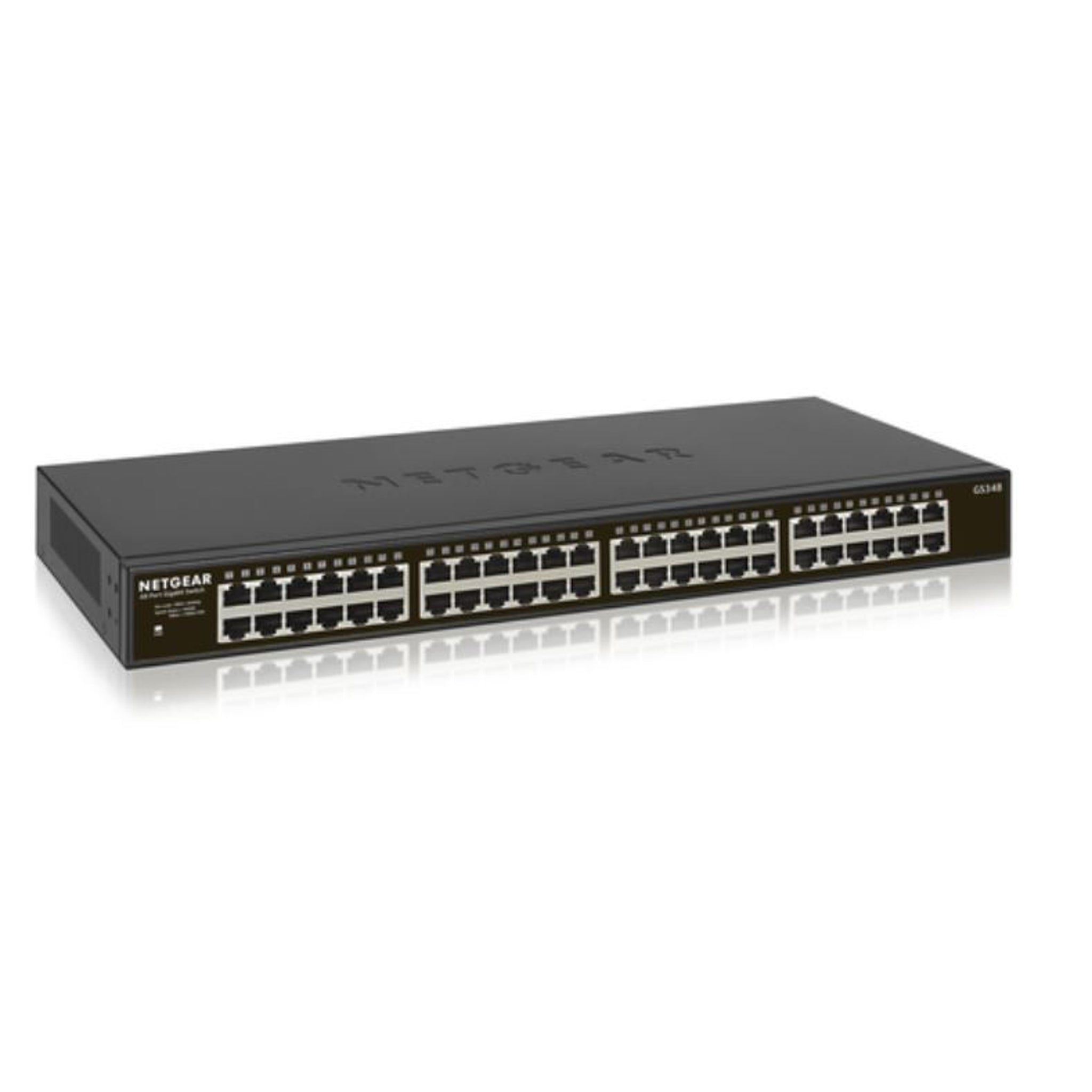

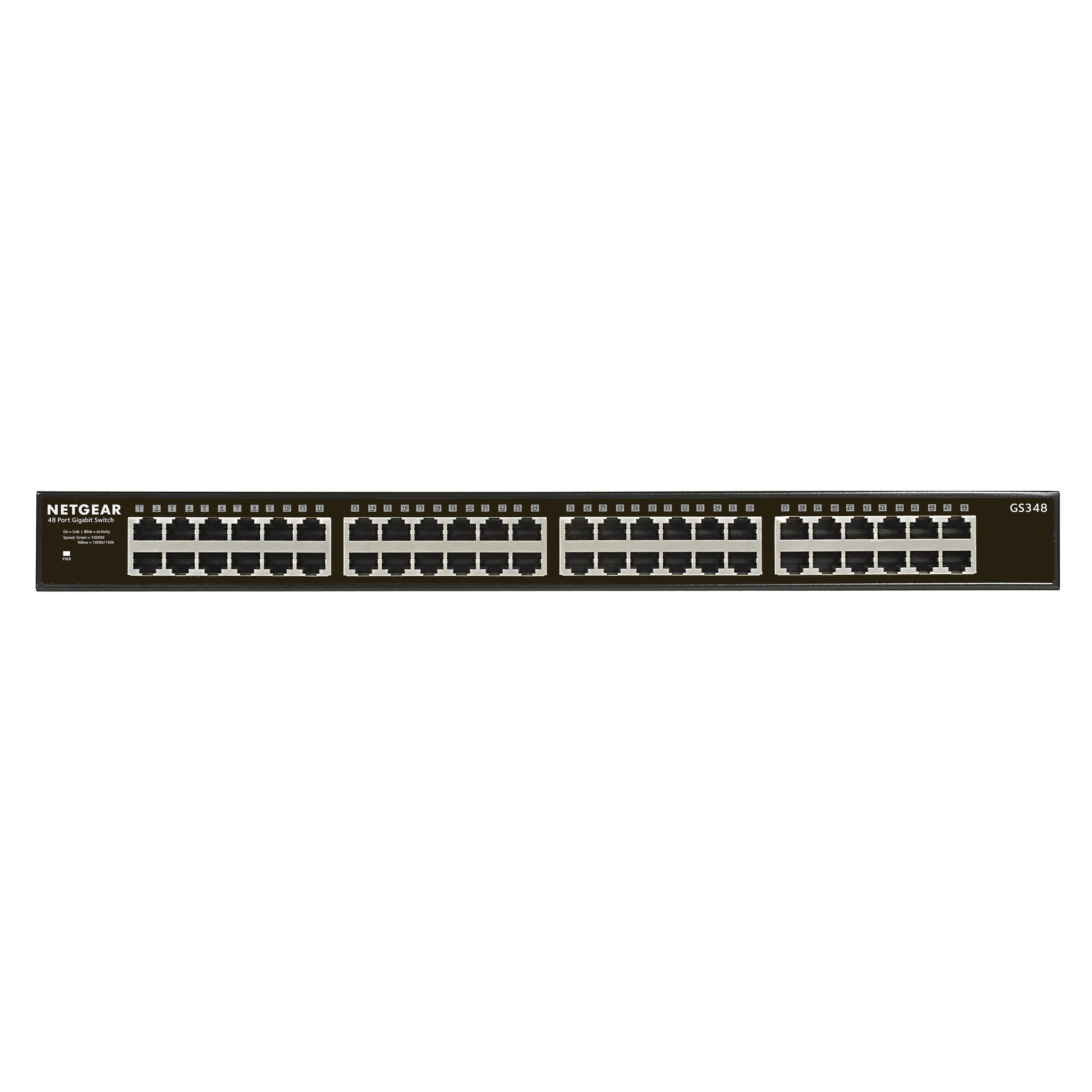

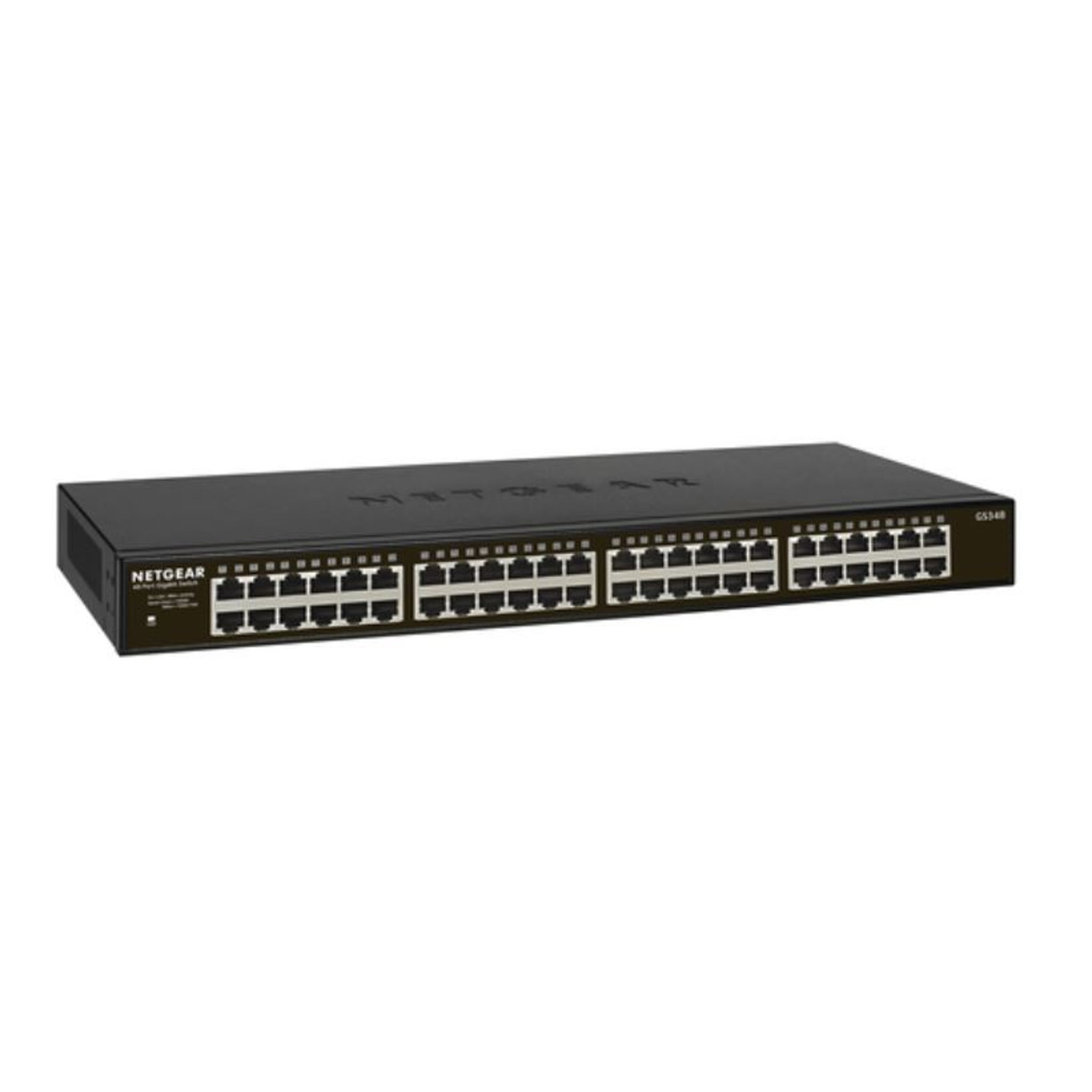

NETGEAR GS348 Unmanaged Gigabit Ethernet (10/100/1000) 1U Black (GS348100NAS)
Product overview
NETGEAR GS348. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Features
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- GS316 and GS324 are wall-mountable
- GS324 and GS348 are rack-mountable (rackmount kit included)
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS348-100NAS |
| D&H SKU | GS348100NAS |
| UPC / GTIN | 606449120202 |
| MAC address table | 16000 entries |
| Switching capacity | 96 Gbit/s |
| Latency (1 Gbps) | 4 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Product color | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Heat dissipation | 7866 BTU/h |
| LED indicators | Activity, Link, Power |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption (typical) | 8.81 W |
| Power consumption (max) | 23 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Power connector | DC-in jack |
| Power source | AC/DC |
| Power over Ethernet (PoE) | No |
| Width | 17.3" (440 mm) |
| Depth | 8.03" (204 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 6.94 lbs (3.15 kg) |
