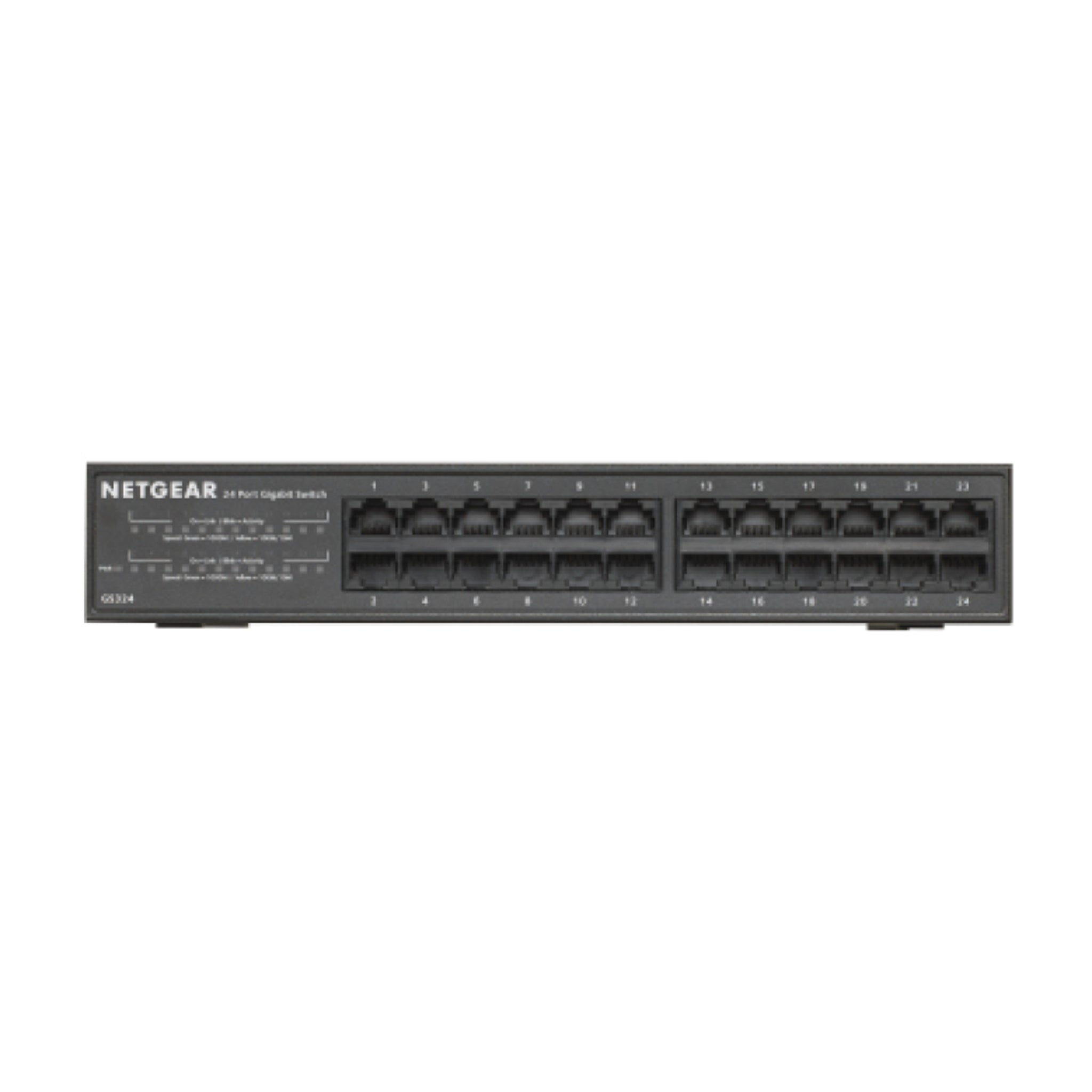

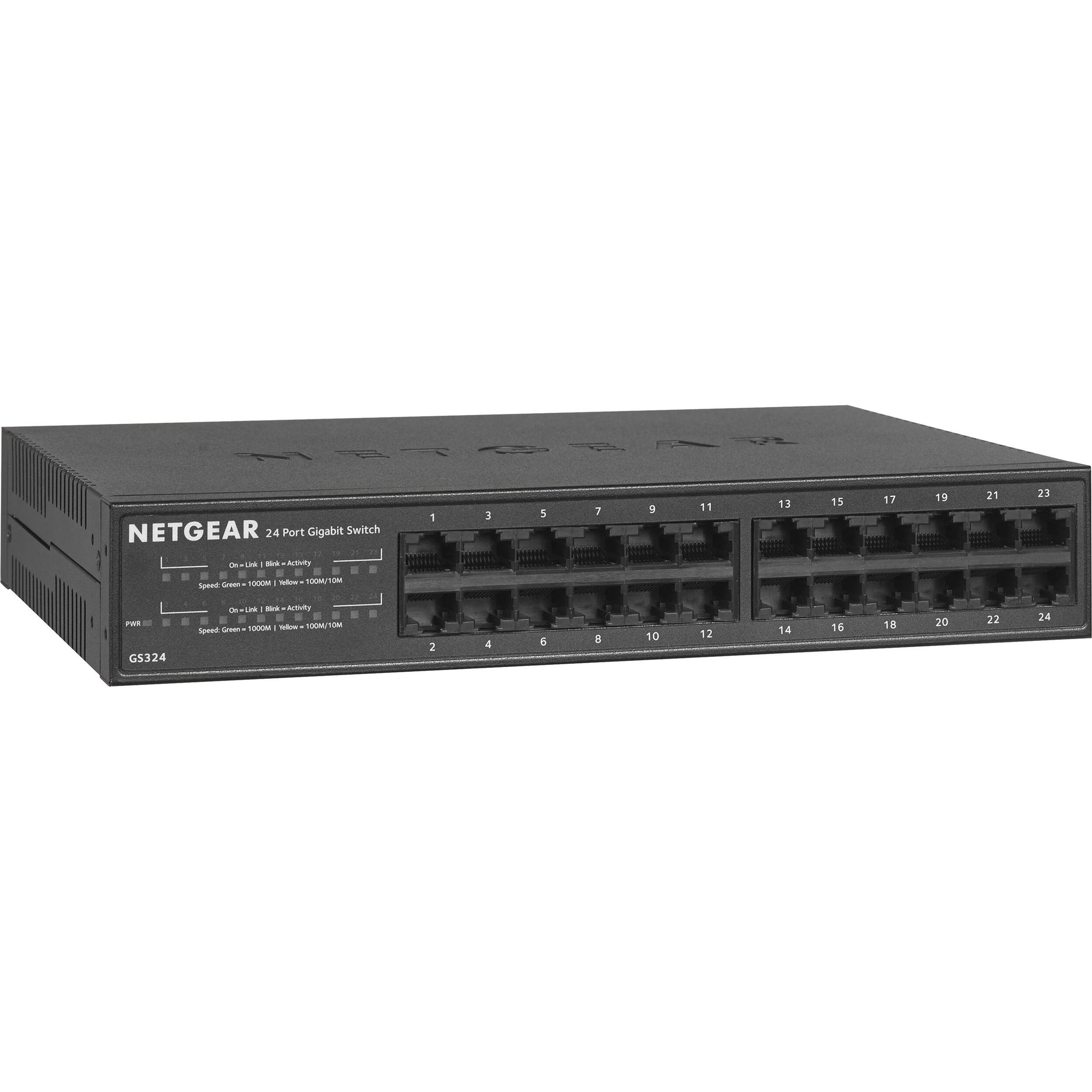

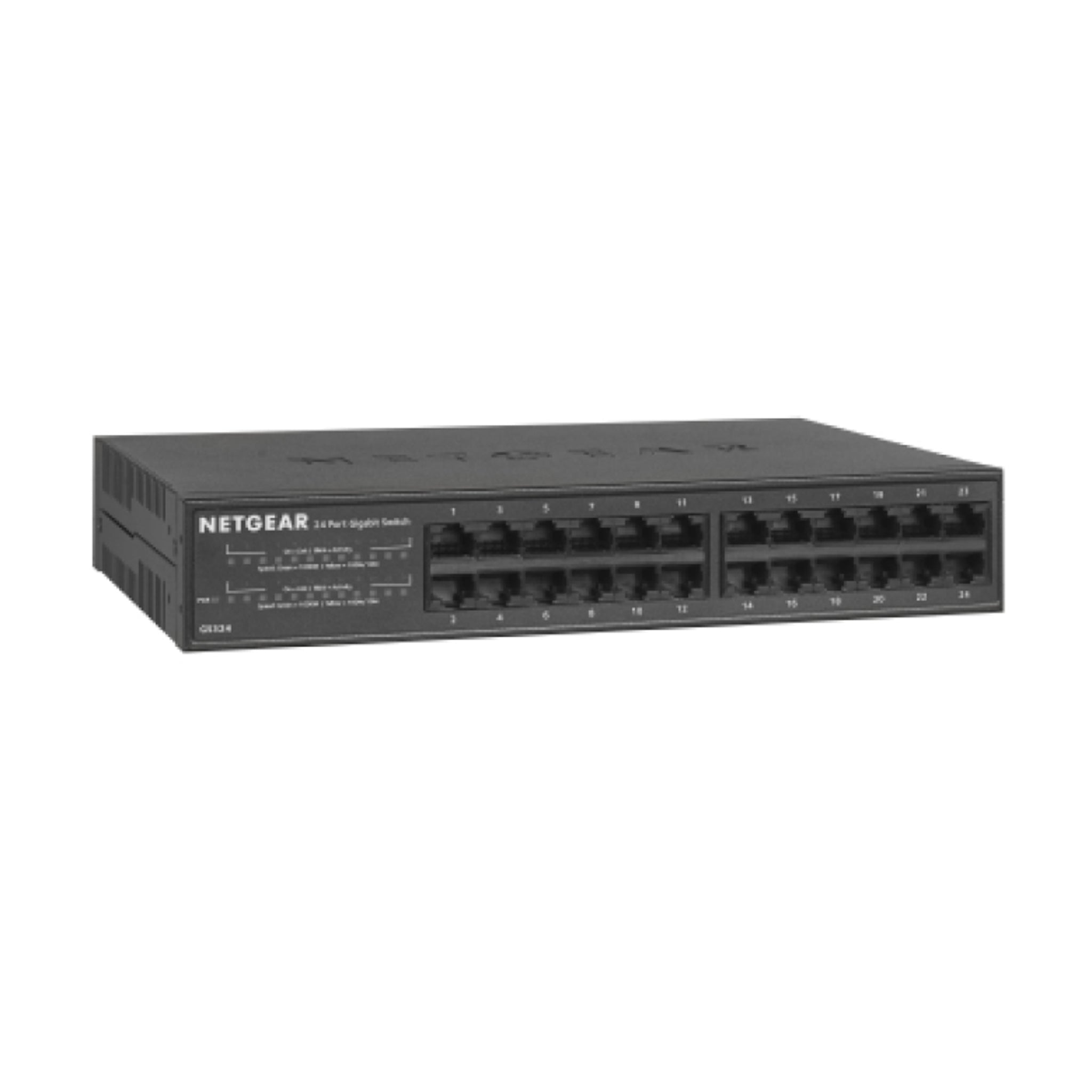

NETGEAR GS324 Unmanaged Gigabit Ethernet (10/100/1000) 1U Black (GS324200NAS)
Product overview
Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.\n\n PLUG & PLAY \nSimple setup with no software or configuration needed.\n\n FLEXIBLE MOUNTING \nMount on rack, desktop, or wall.\n\n SMALL SIZE, METAL CASE, AND SILENT OPERATION \nDurable quality, space saver, and quietness for peace of mind.\n\n STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS \nCan be placed on desk or on mounted rack and will operate quietly with assured durability.
Features
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Desktop, wall or rackmountable
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS324-200NAS |
| D&H SKU | GS324200NAS |
| UPC / GTIN | 606449151459 |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Latency (1 Gbps) | 4.7 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.512 MB |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Product color | Black |
| Wall mountable | Yes |
| Form factor | 1U |
| Rack mounting | Yes |
| Mean time between failures (MTBF) | 1016877 h |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az |
| 10G support | No |
| Auto-sensing | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 41.2 BTU/h |
| Certification | CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD |
| Cables included | AC |
| Manual | Yes |
| LED indicators | Activity, Link, Power, Speed |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5 |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption (typical) | 4.33 W |
| Power consumption (max) | 12.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.7 A |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Width | 9.92" (252 mm) |
| Depth | 7.09" (180 mm) |
| Height | 1.73" (44 mm) |
| Weight | 2.67 lbs (1.21 kg) |
