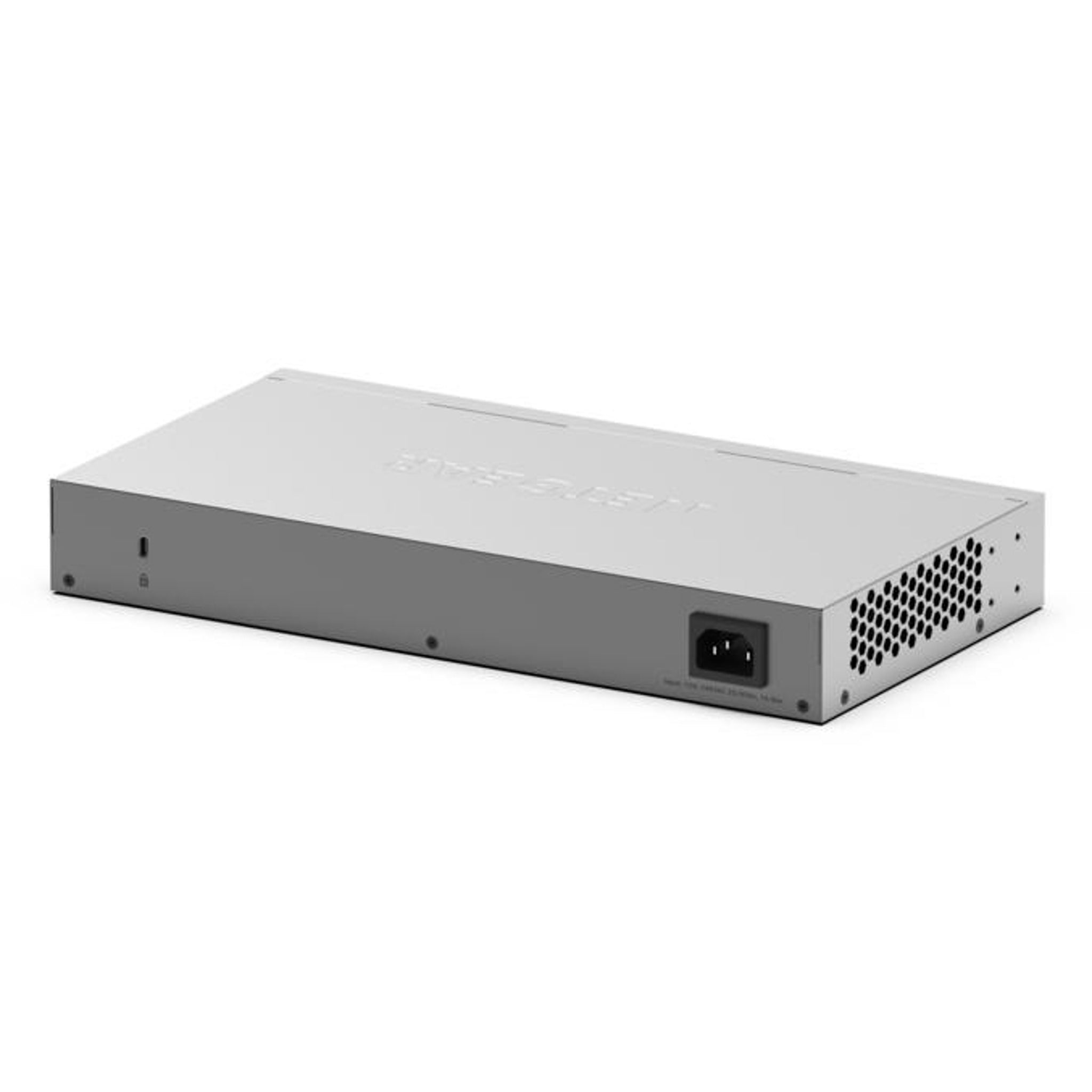

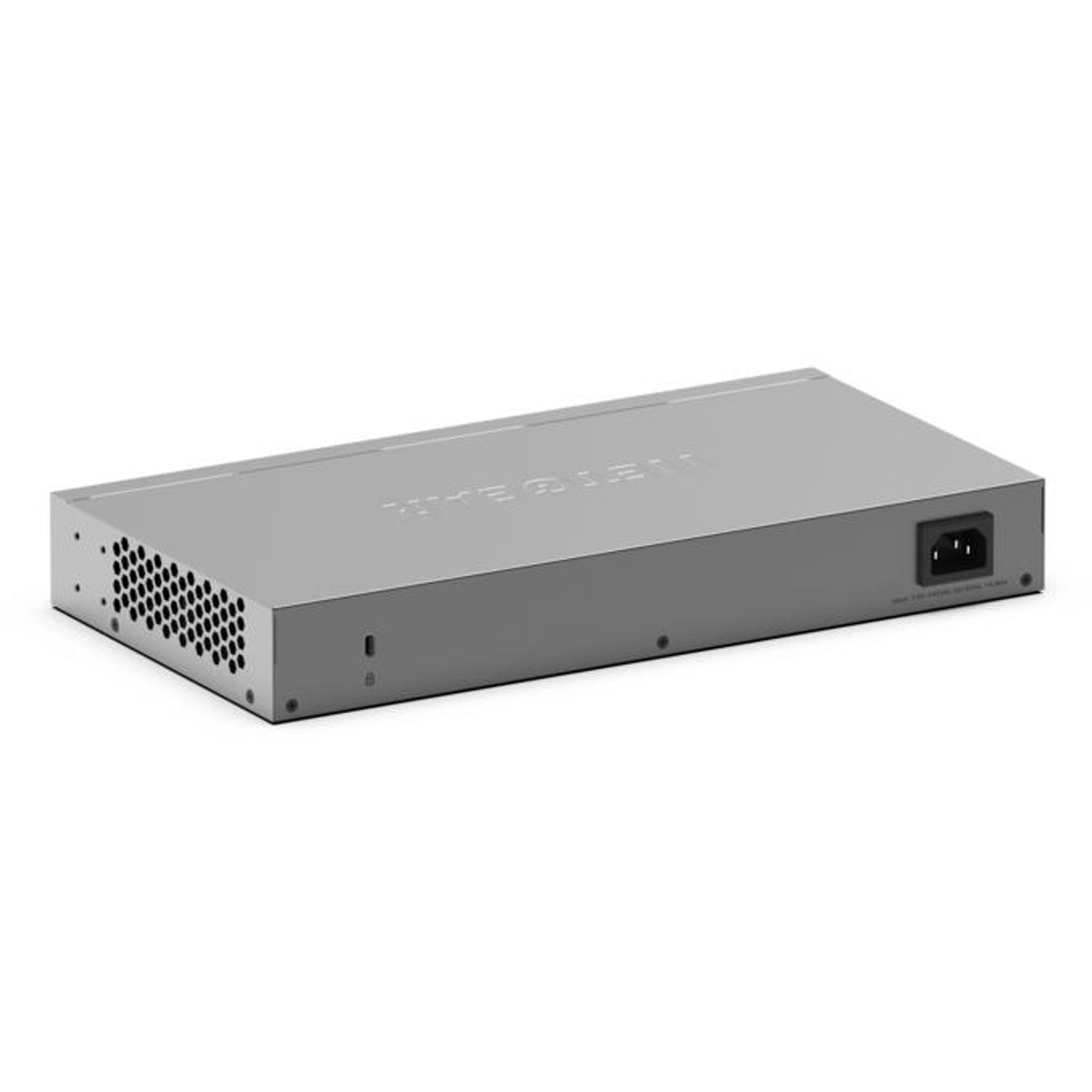

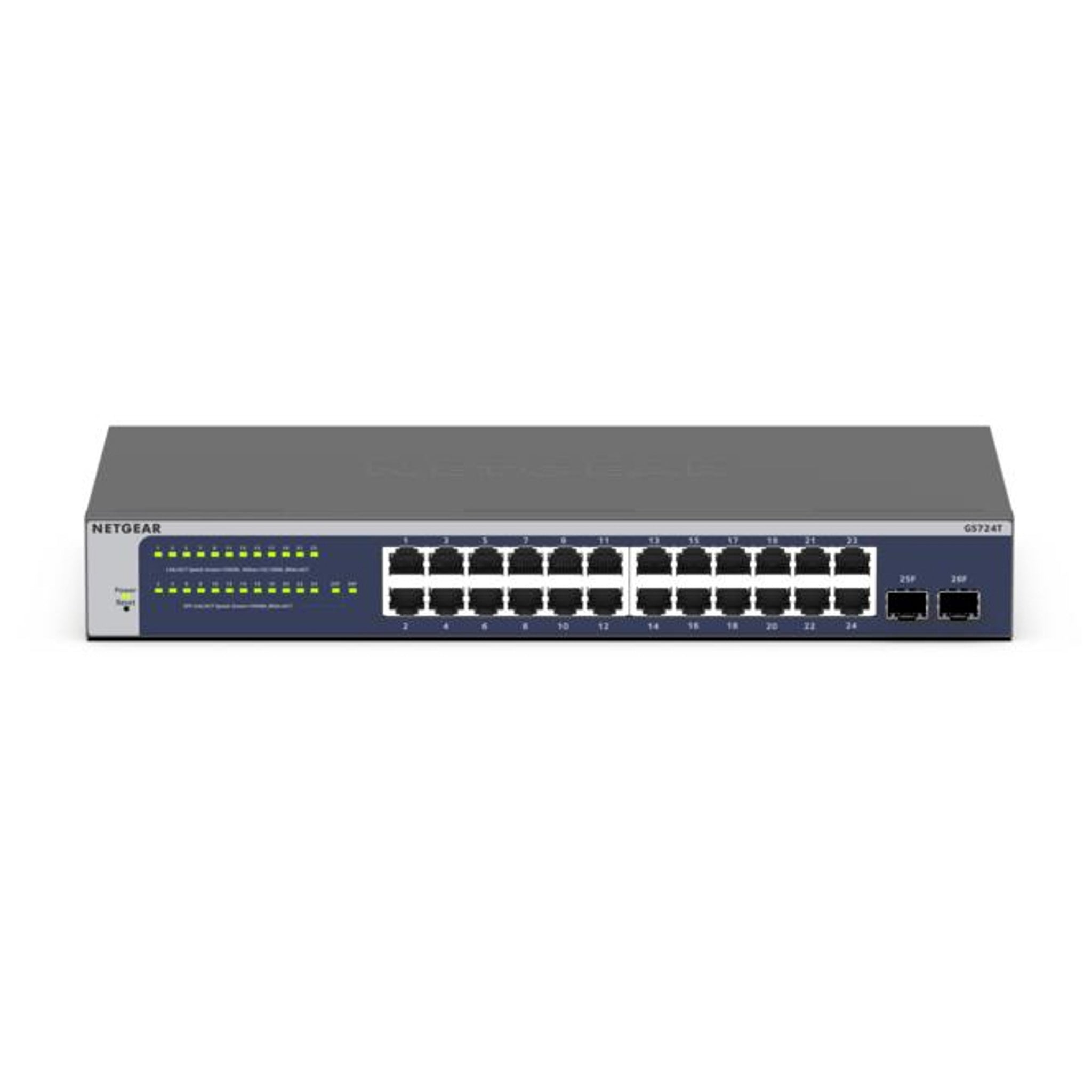

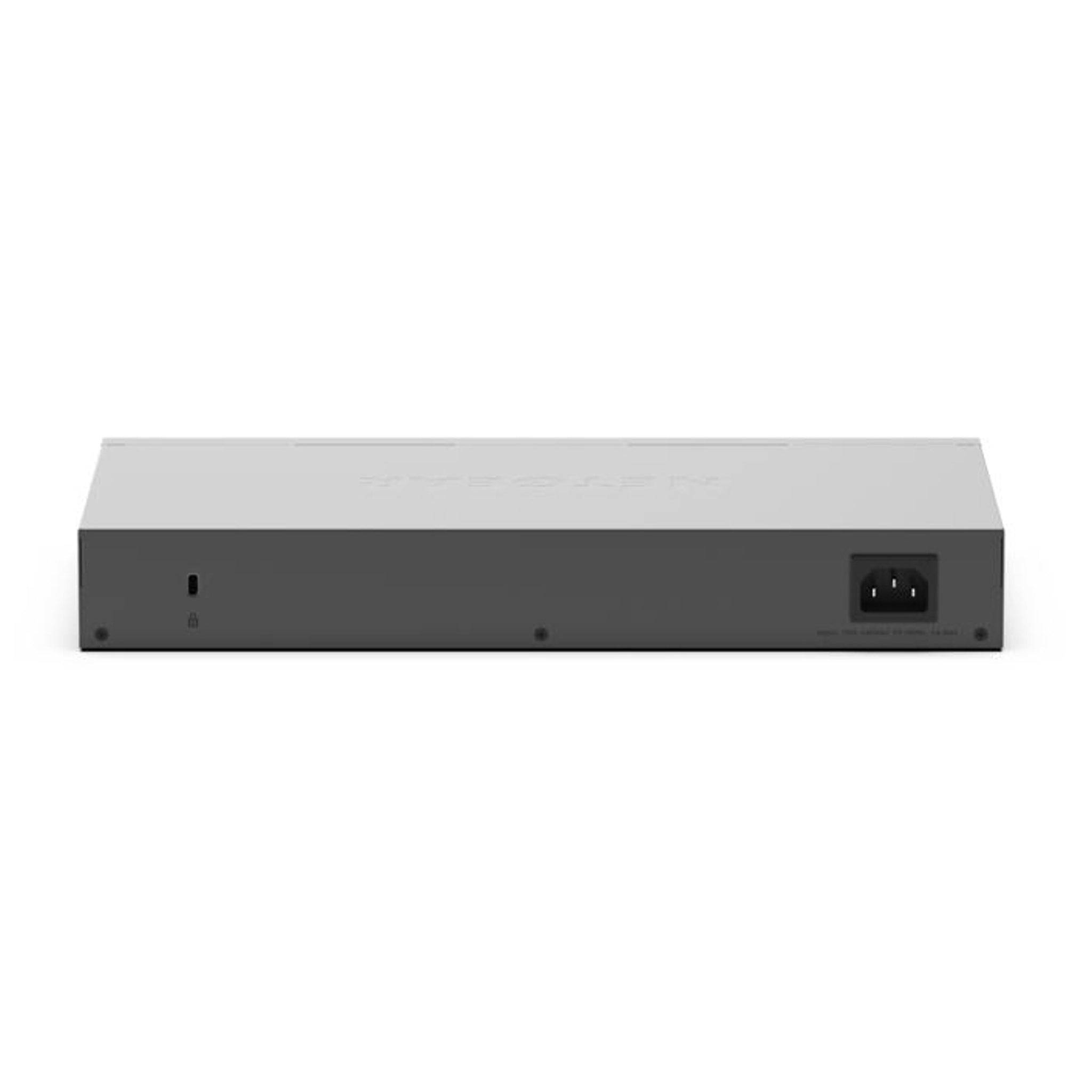

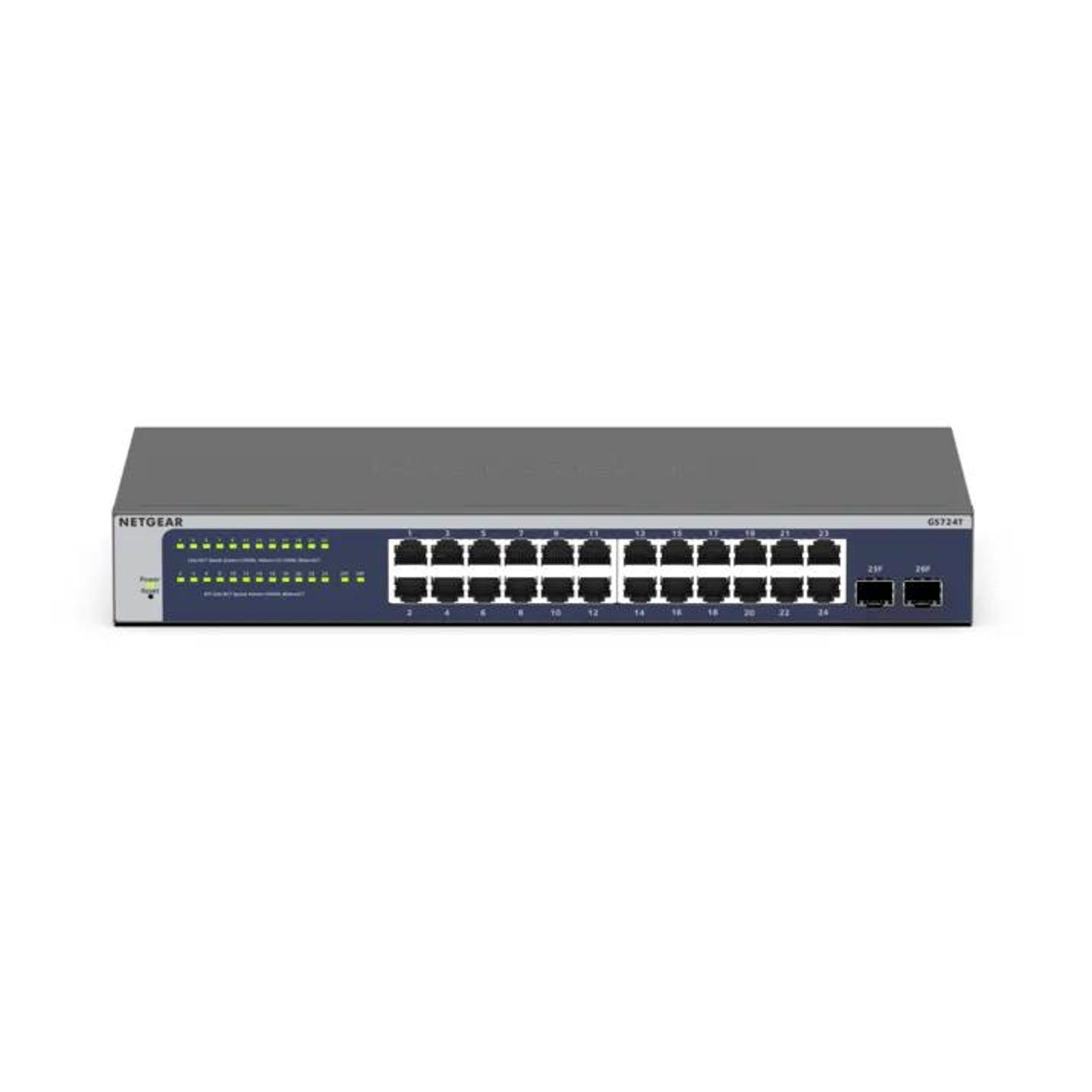

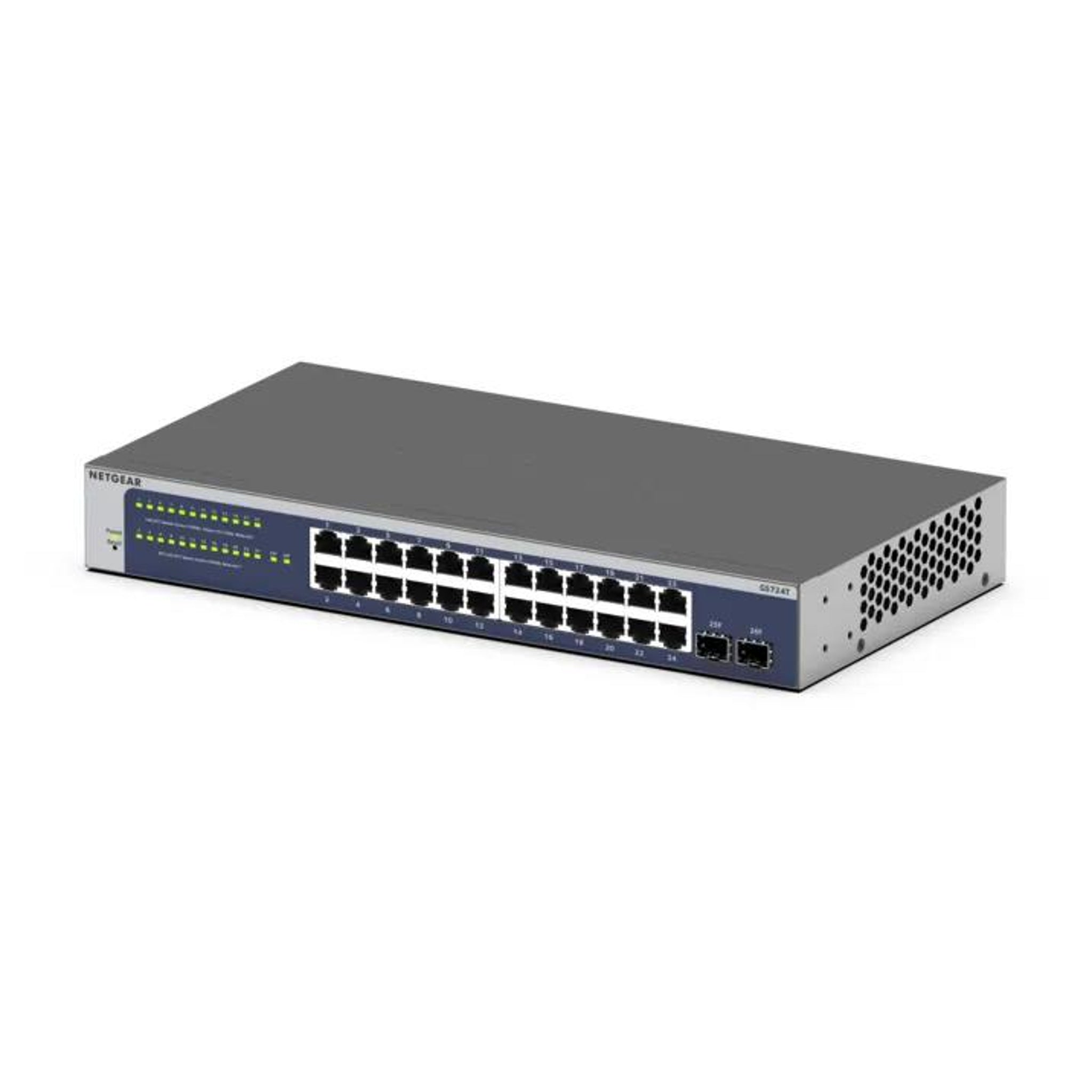

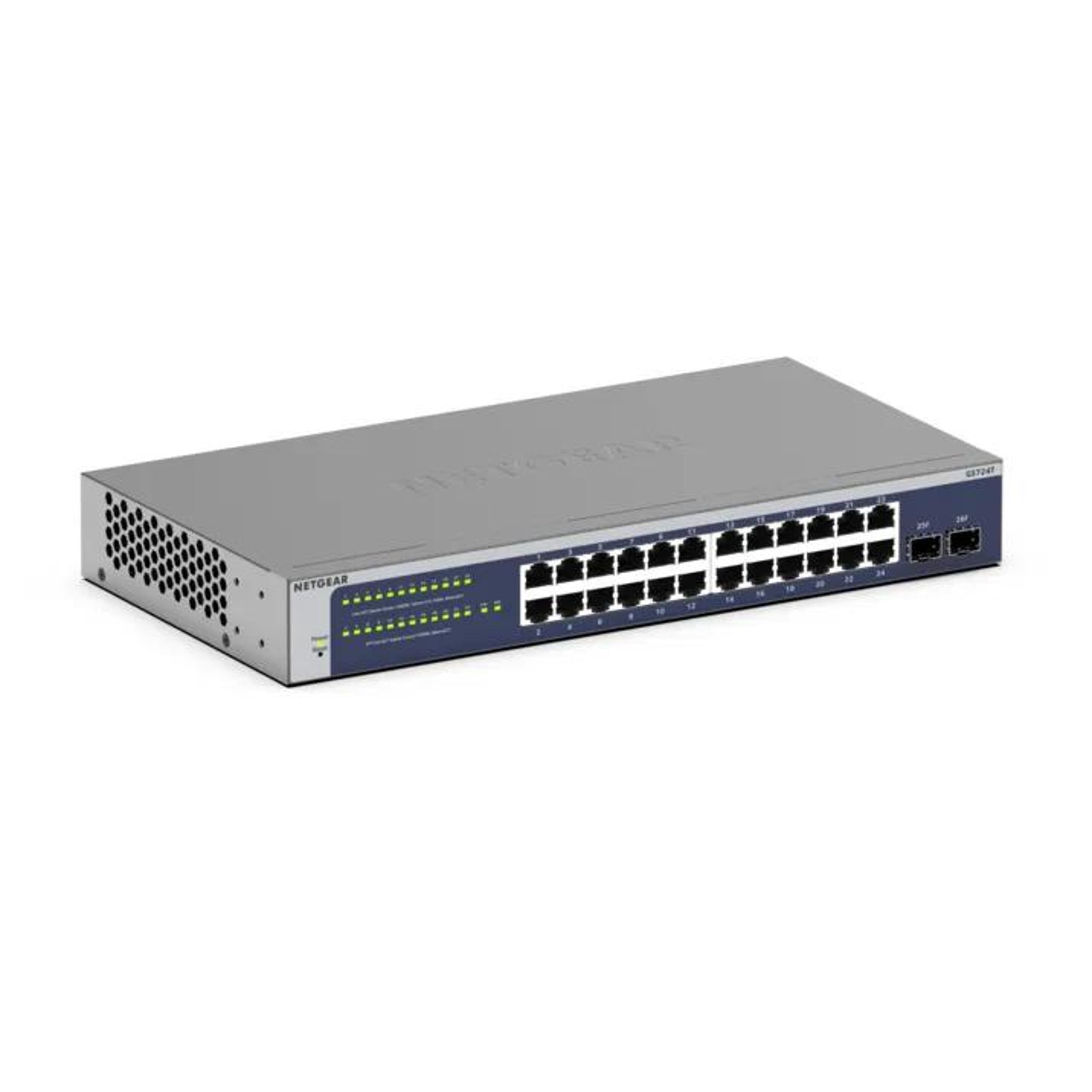

NETGEAR GS724T-600NAS network switch Managed L2+/L3 Gigabit Ethernet (10/100/1000) 1U Blue, Gray (GS724T600NAS)
Product overview
NETGEAR GS724T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management
Features
- 24 Gigabit Ethernet ports and 2 dedicated SFP uplinks
- Smart management
- Layer 2 and Layer 3 Lite features
- Optional Insight cloud management
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS724T-600NAS |
| D&H SKU | GS724T600NAS |
| UPC / GTIN | 606449169096 |
| MAC address table | 16000 entries |
| Switching capacity | 52 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 2 MB |
| Number of queues | 8 |
| Number of static routes | 32 |
| Product color | Blue, Gray |
| Form factor | 1U |
| Rack mounting | Yes |
| Number of fans | 0 fan(s) |
| Mean time between failures (MTBF) | 1999946 h |
| Security algorithms | HTTPS, SSL/TLS |
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 512 |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z |
| Web-based management | Yes |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| LED indicators | Activity, Link |
| Noise level | 0 dB |
| Firmware upgradeable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power consumption (typical) | 13.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | No |
| Management protocols | SNMP v1/v2 |
| DHCP features | DHCP client, DHCP snooping |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Width | 12.9" (328 mm) |
| Depth | 6.65" (169 mm) |
| Height | 1.69" (43 mm) |
| Weight | 3.57 lbs (1.62 kg) |
