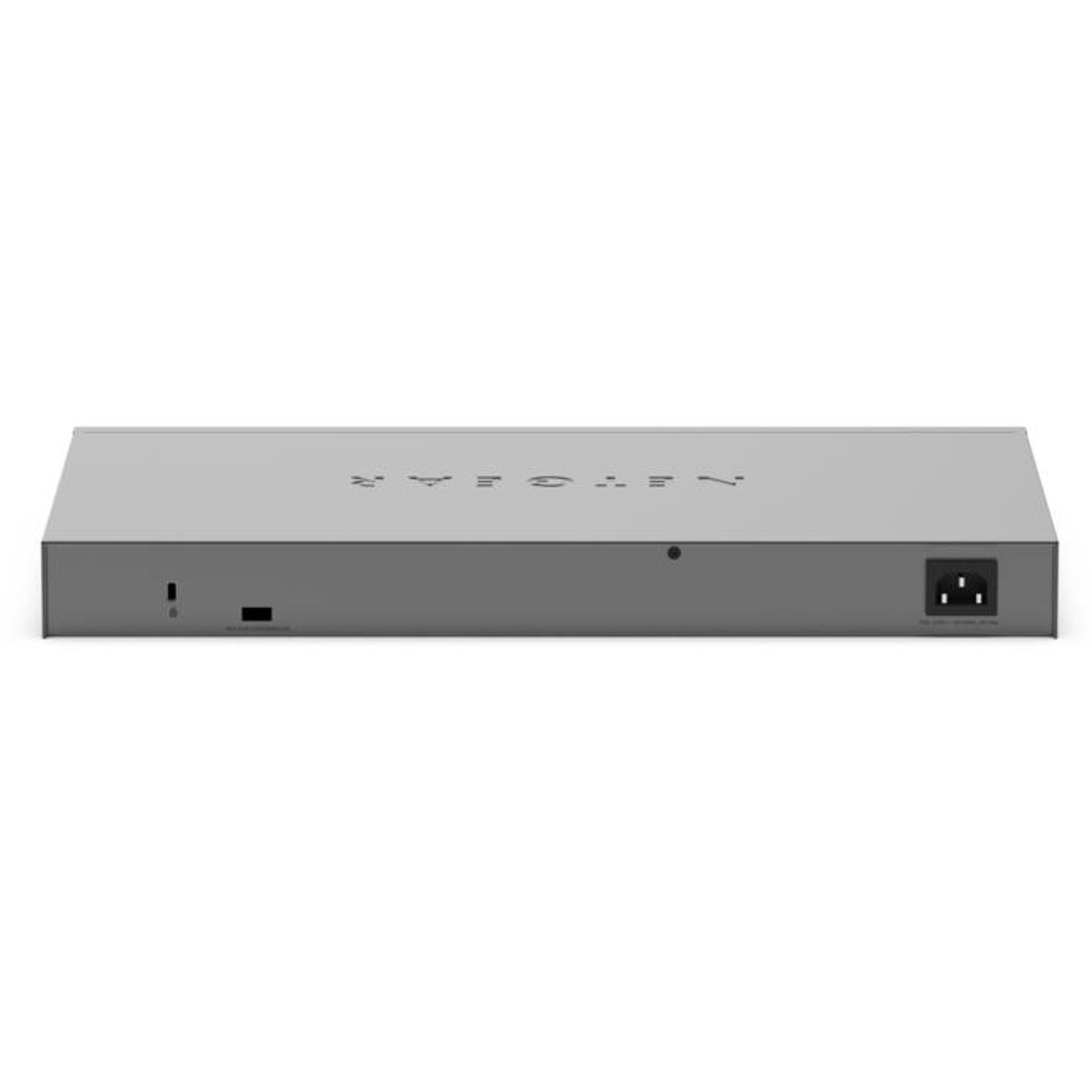

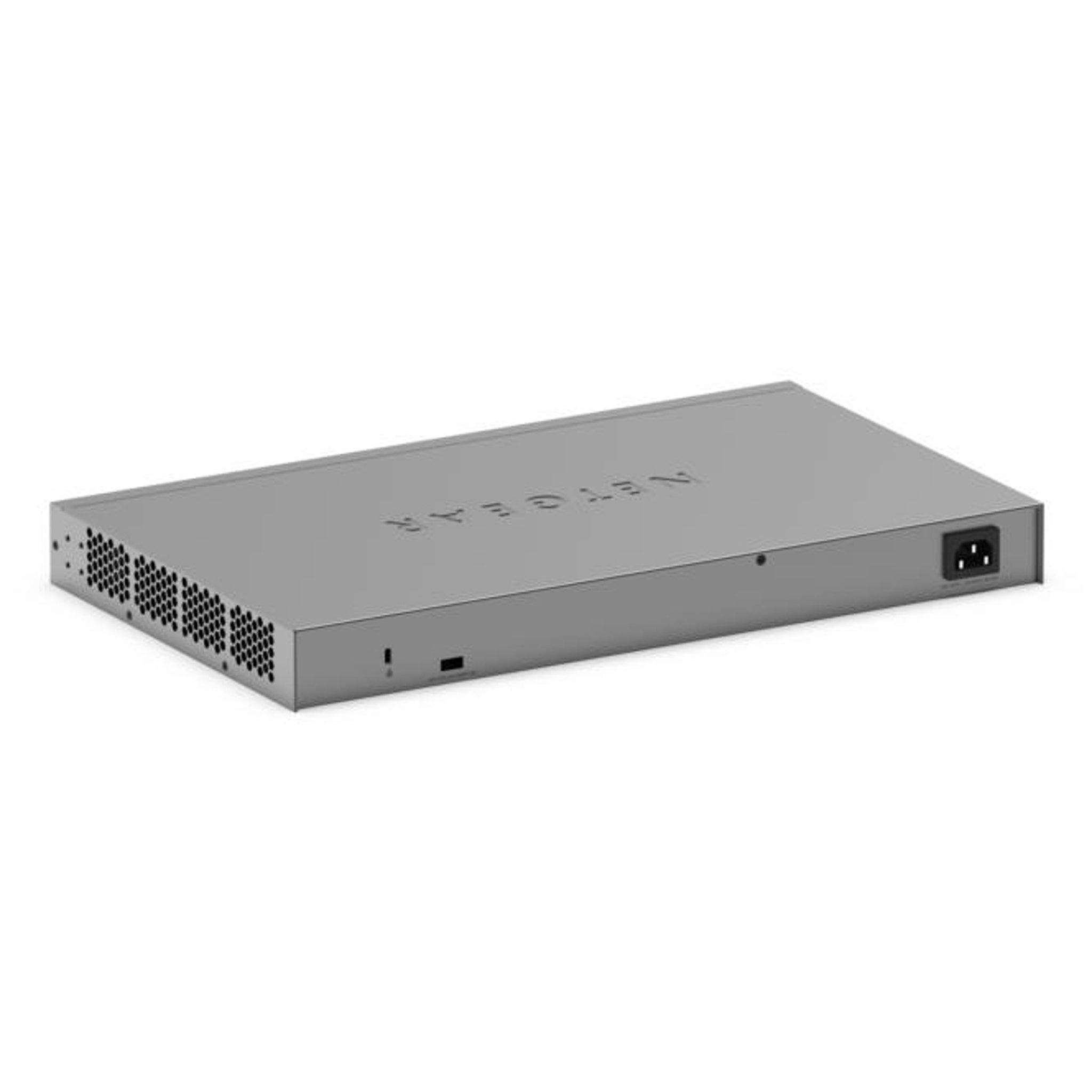

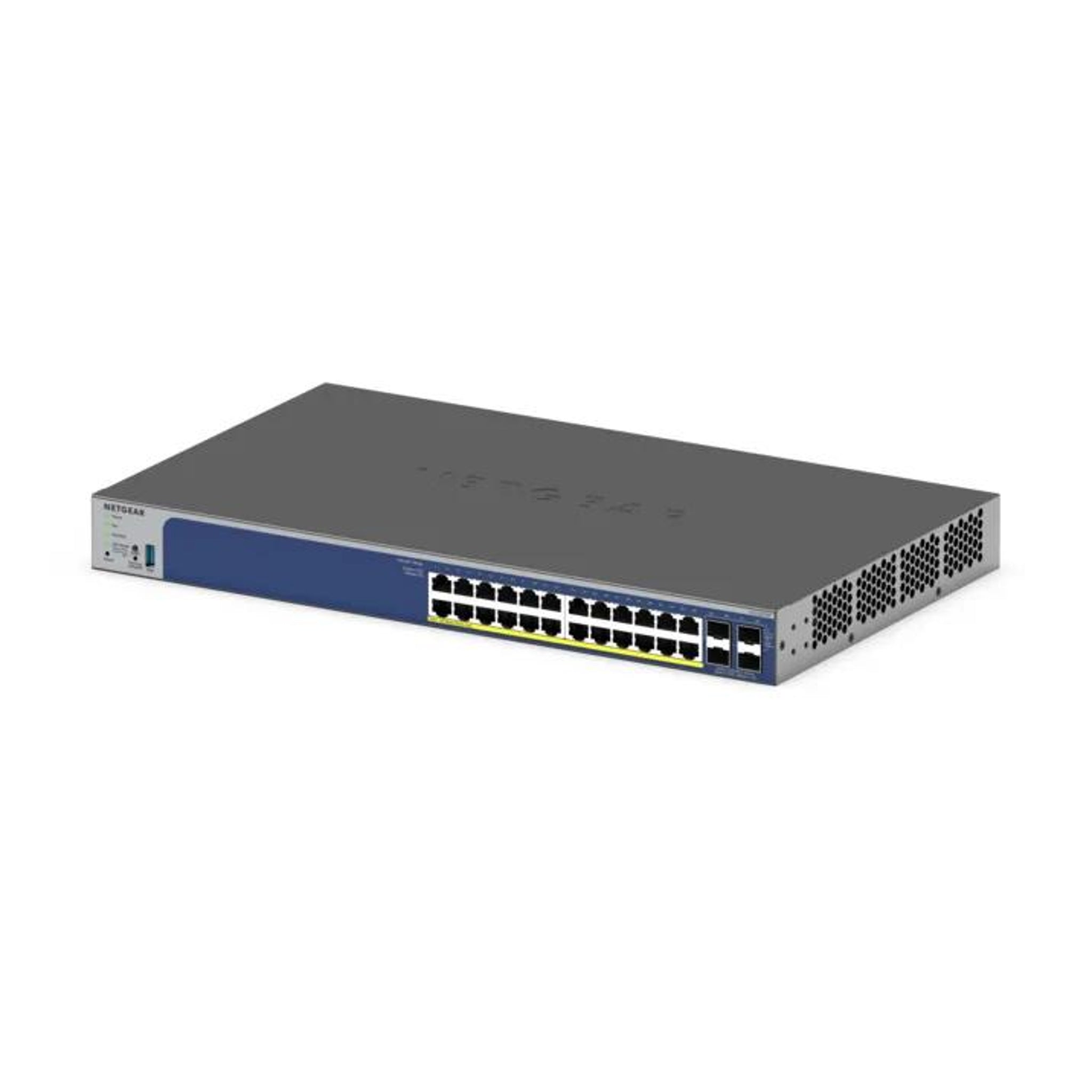

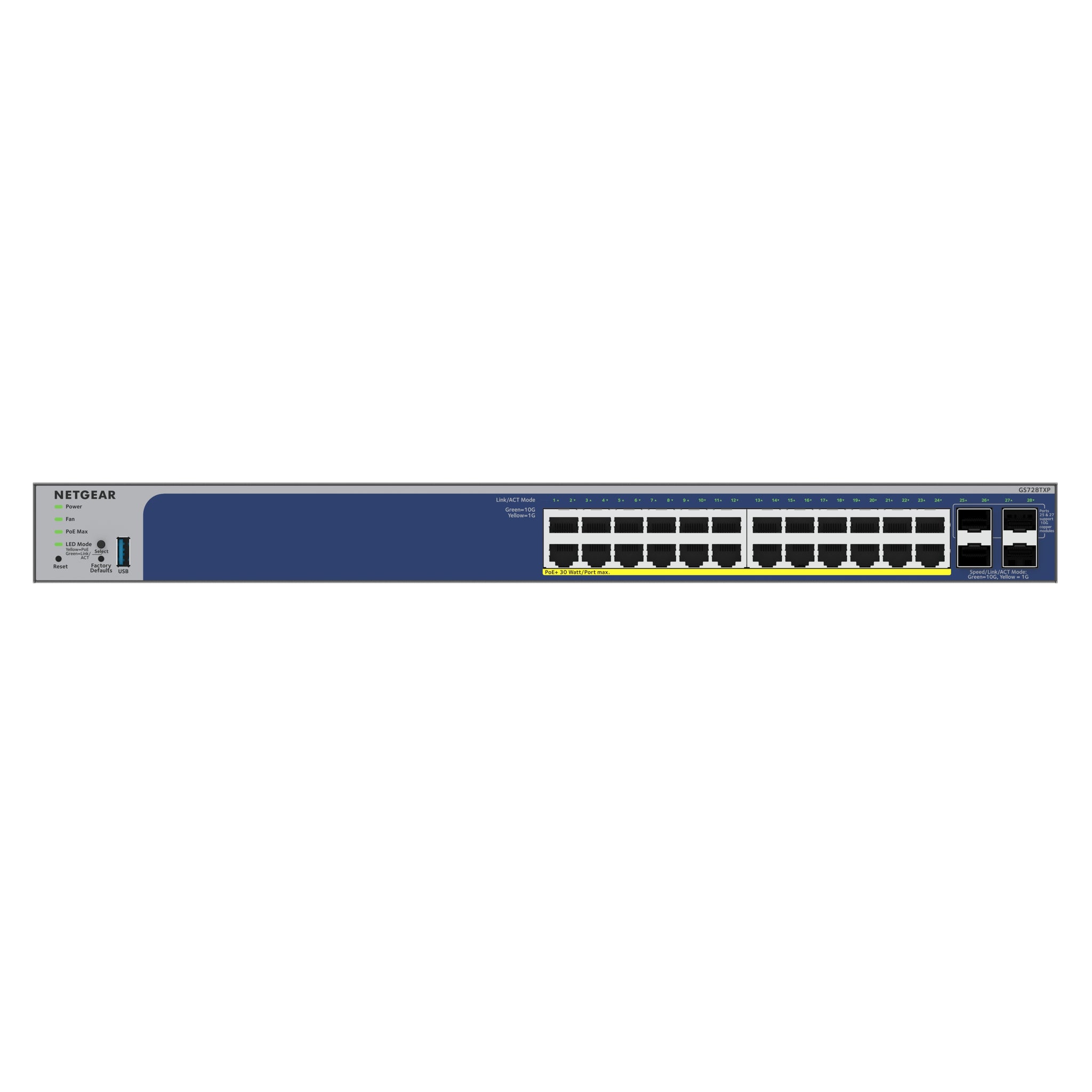

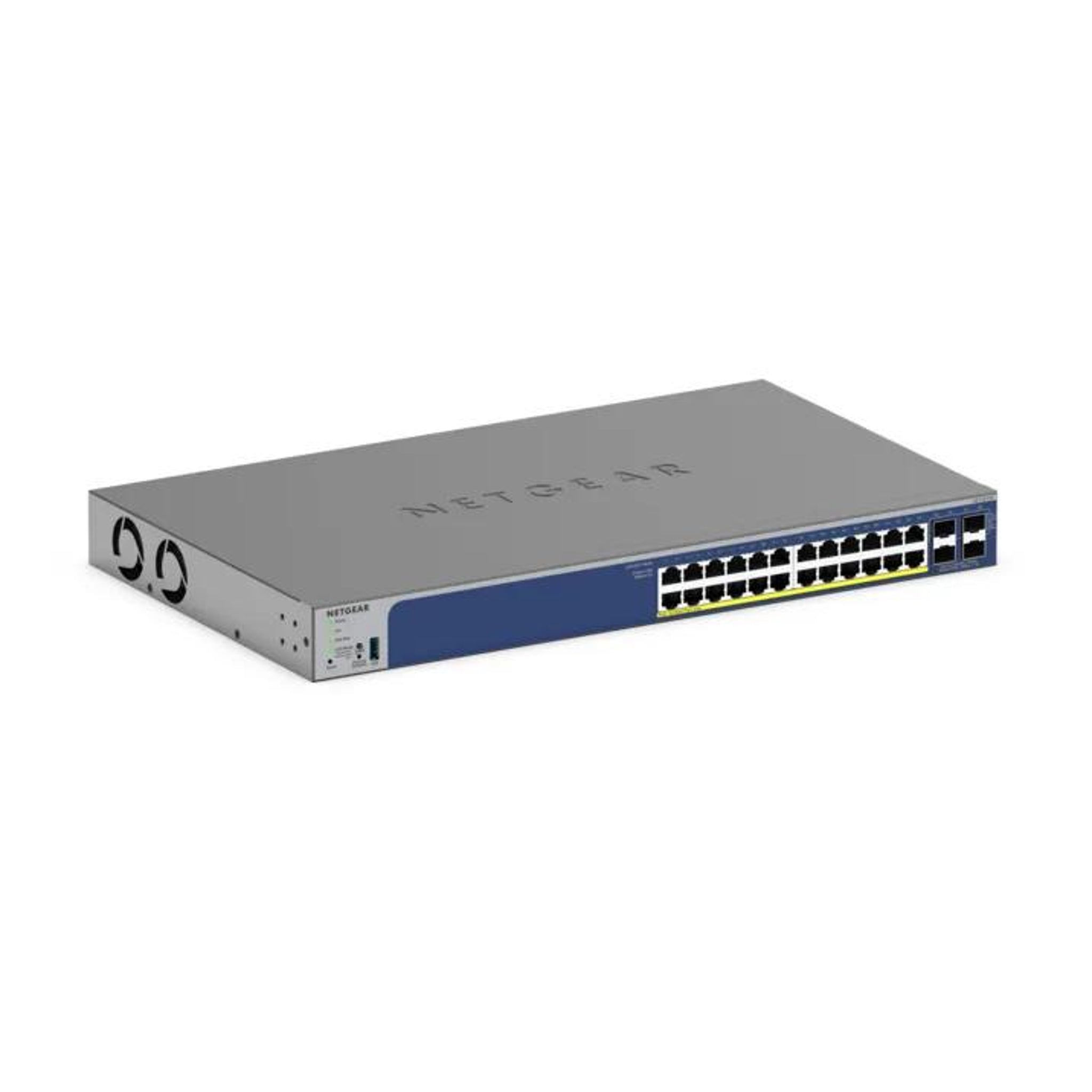

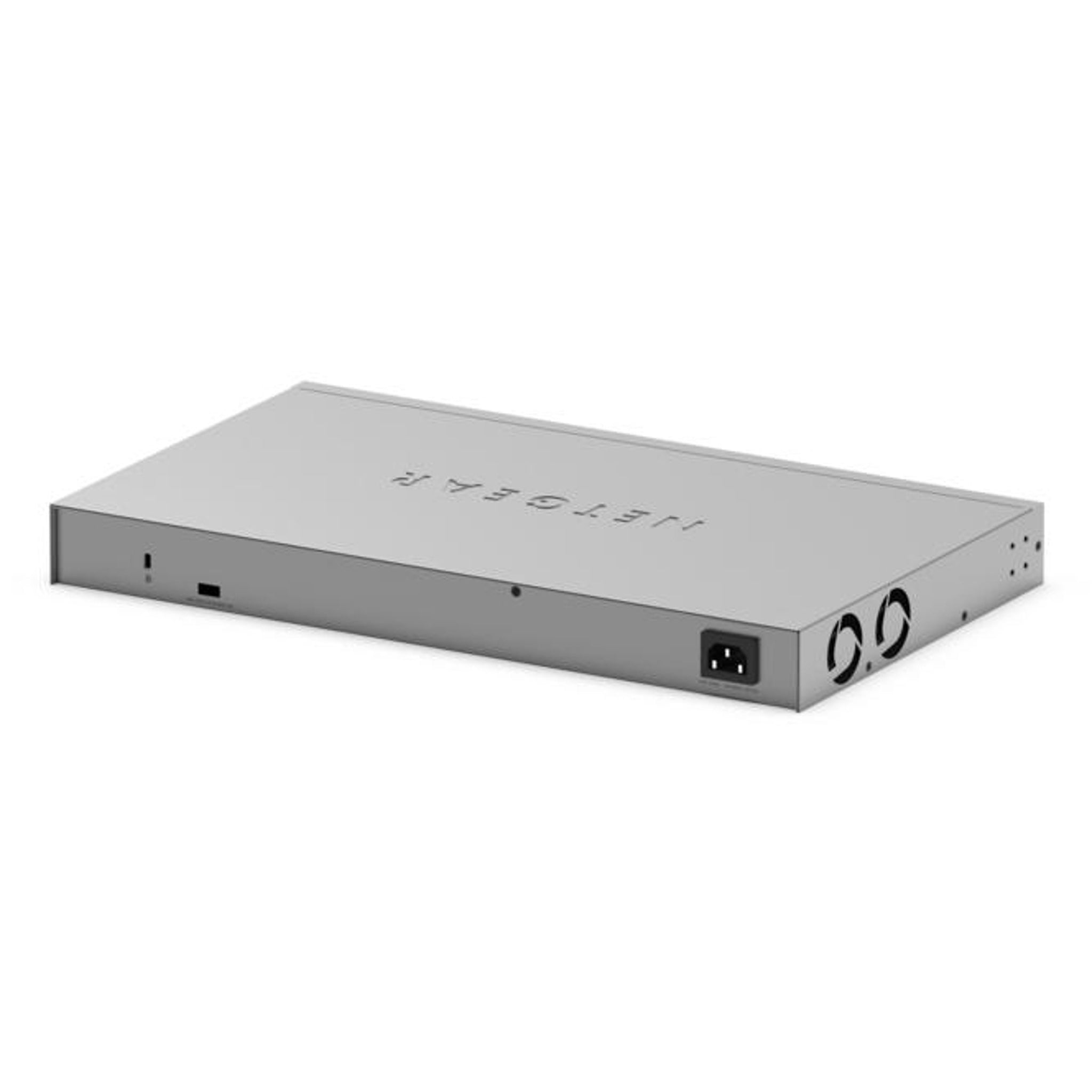

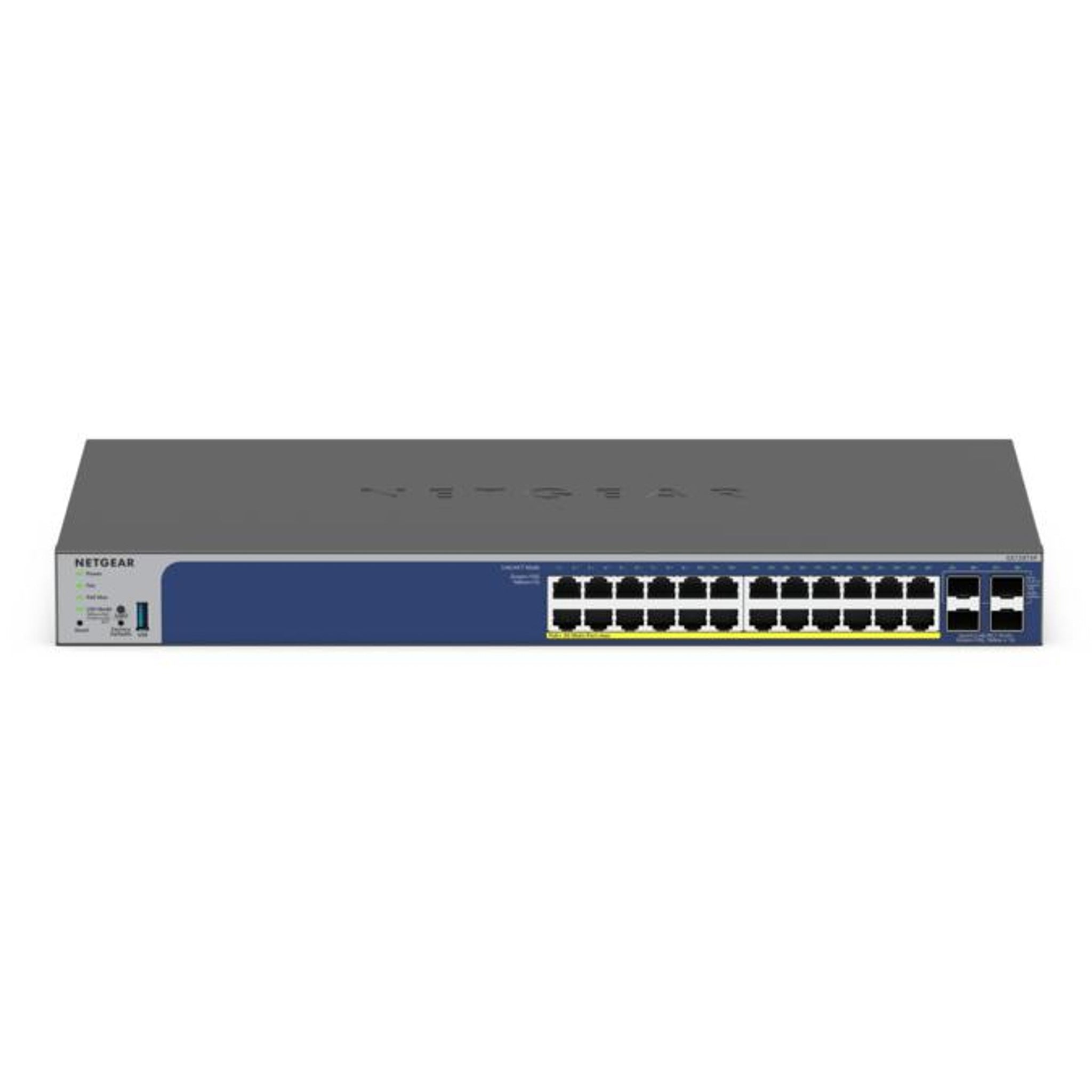

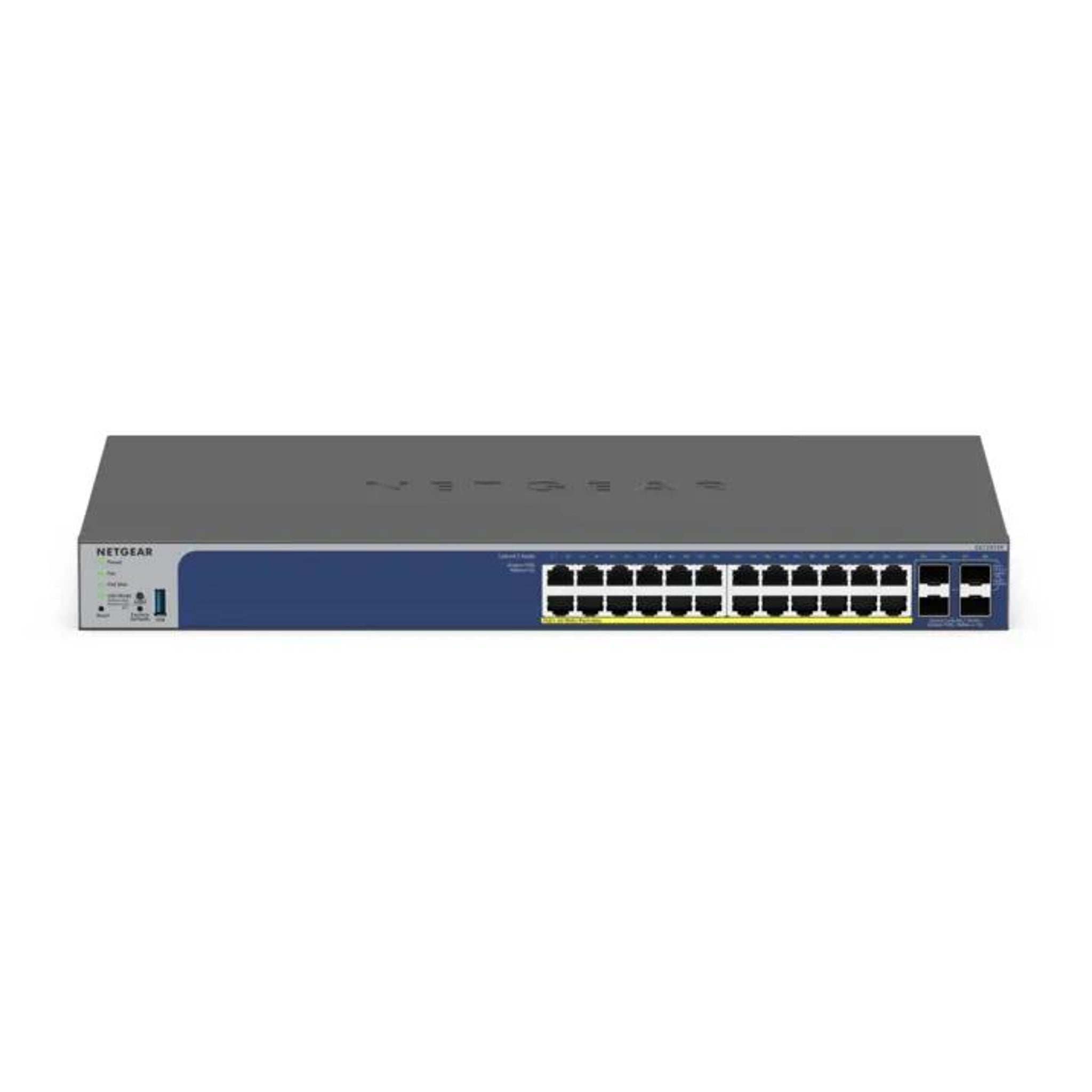

NETGEAR GS728TXP L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black (GS728TXP300NAS)
Product overview
Total Network Solution helps you get the most out of your network \nEasily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.\n\n NETGEAR INSIGHTREMOTE MANAGEMENT \nManage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. Includes 1-year subscription.
Features
- 24 Gigabit Ethernet ports and 4 10G SFP+ uplinks
- Smart management
- 24 PoE+ ports with a 190W budget
- Local management and optional Insight cloud management
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS728TXP-300NAS |
| D&H SKU | GS728TXP300NAS |
| UPC / GTIN | 606449171051 |
| MAC address table | 16000 entries |
| Packet buffer memory | 16 MB |
| Static route | Yes |
| Number of static routes | 32 |
| Product color | Black |
| Rack mounting | Yes |
| Stackable | Yes |
| Mean time between failures (MTBF) | 1252990 h |
| Built-in processor | Yes |
| Switch layer | L2/L3 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 256 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Cables included | AC |
| Manual | Yes |
| Noise level | 26.8 dB |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Power consumption (typical) | 748.18 W |
| Power source | PoE |
| Power over Ethernet (PoE) | Yes |
| Processor frequency | 800 MHz |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) ingress | 100 |
| Flash memory | 64 MB |
| Width | 17.3" (440 mm) |
| Depth | 10.1" (257 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 8.38 lbs (3.8 kg) |
