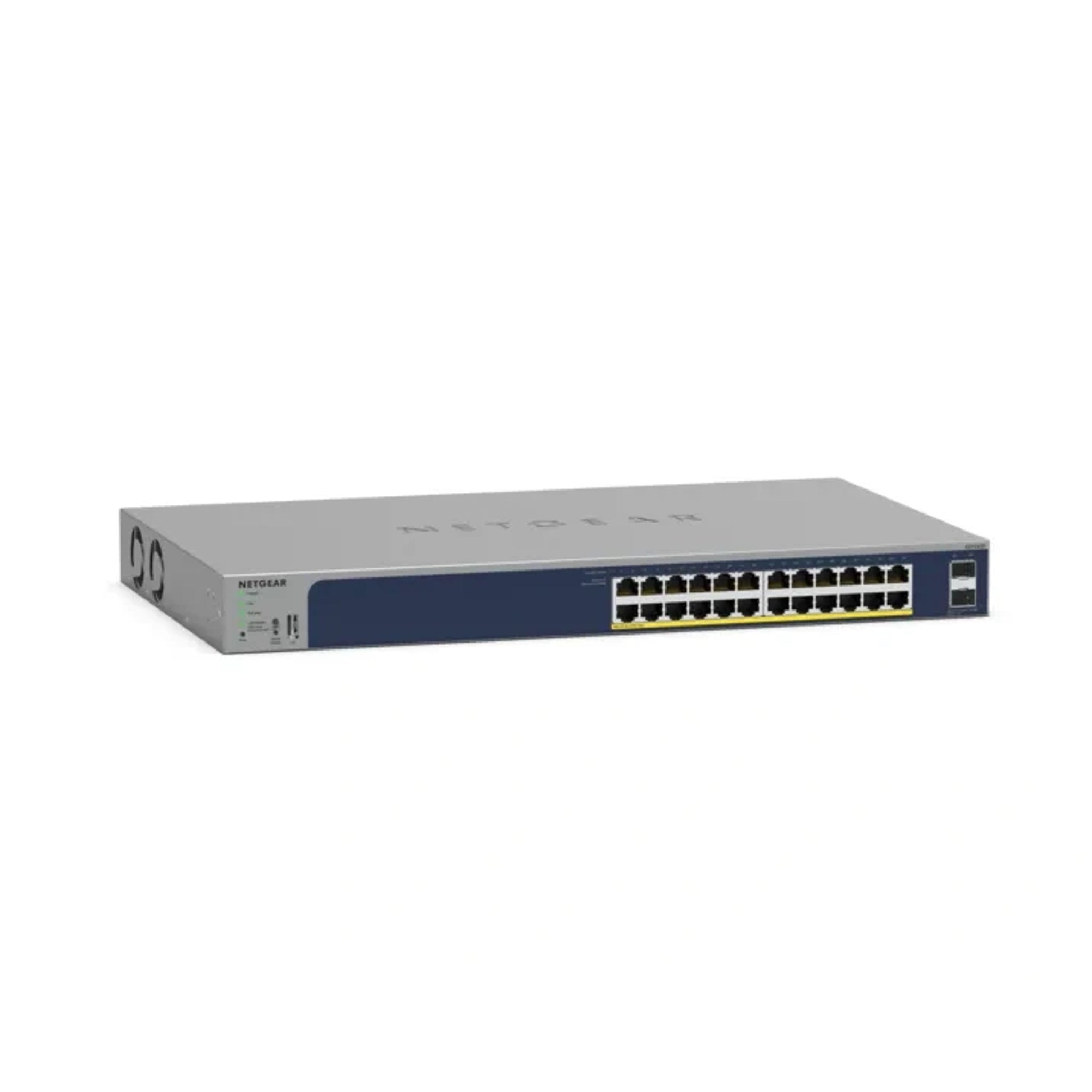

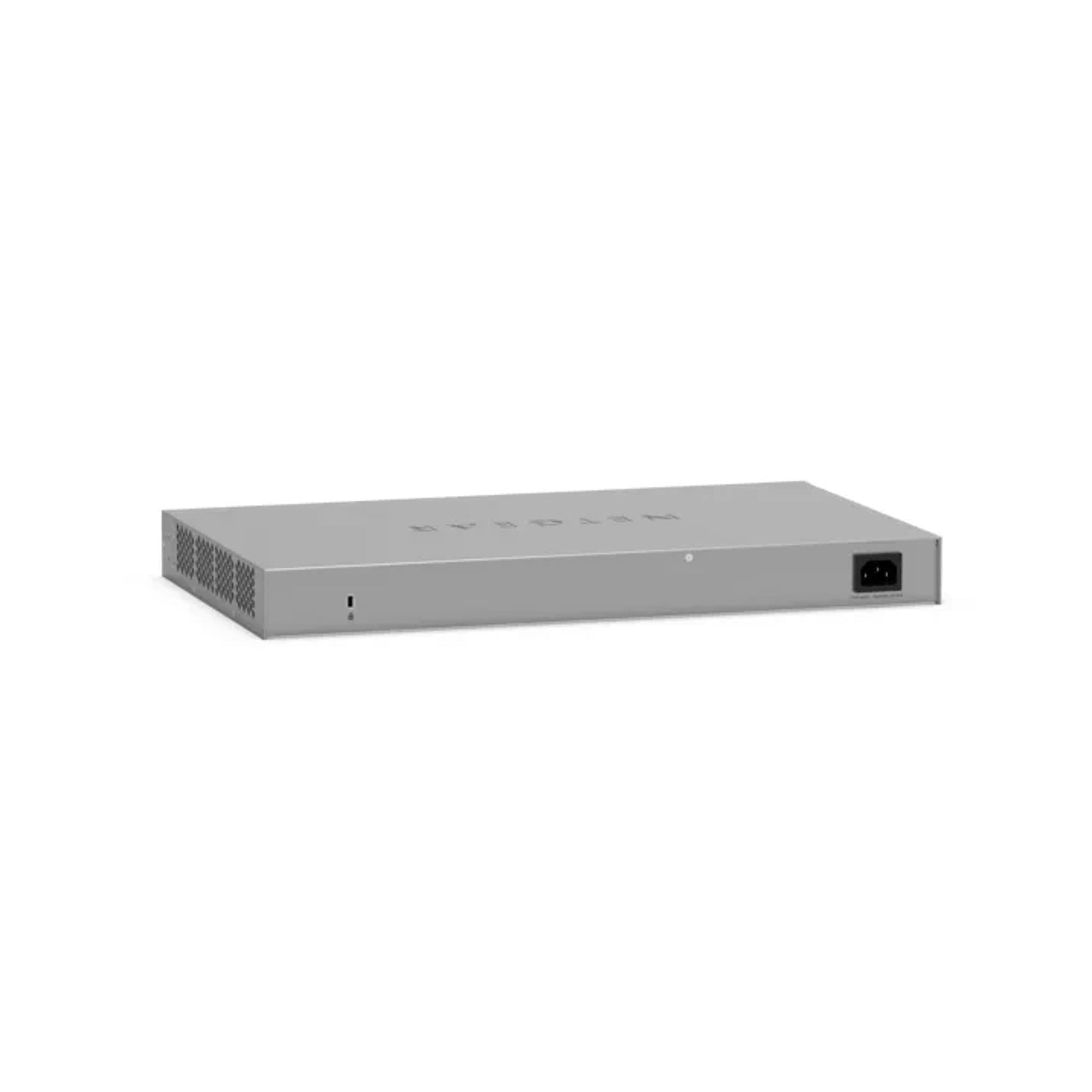

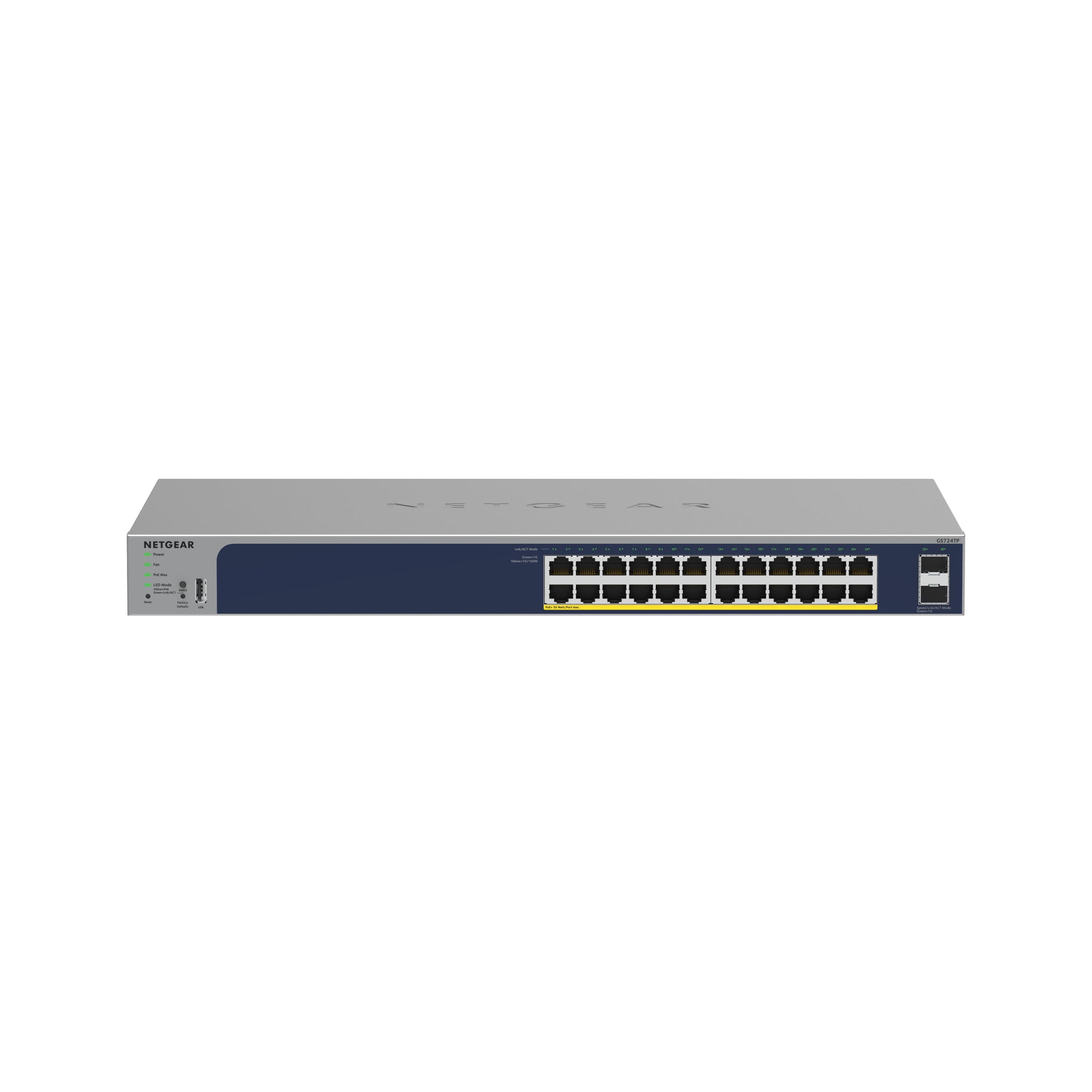

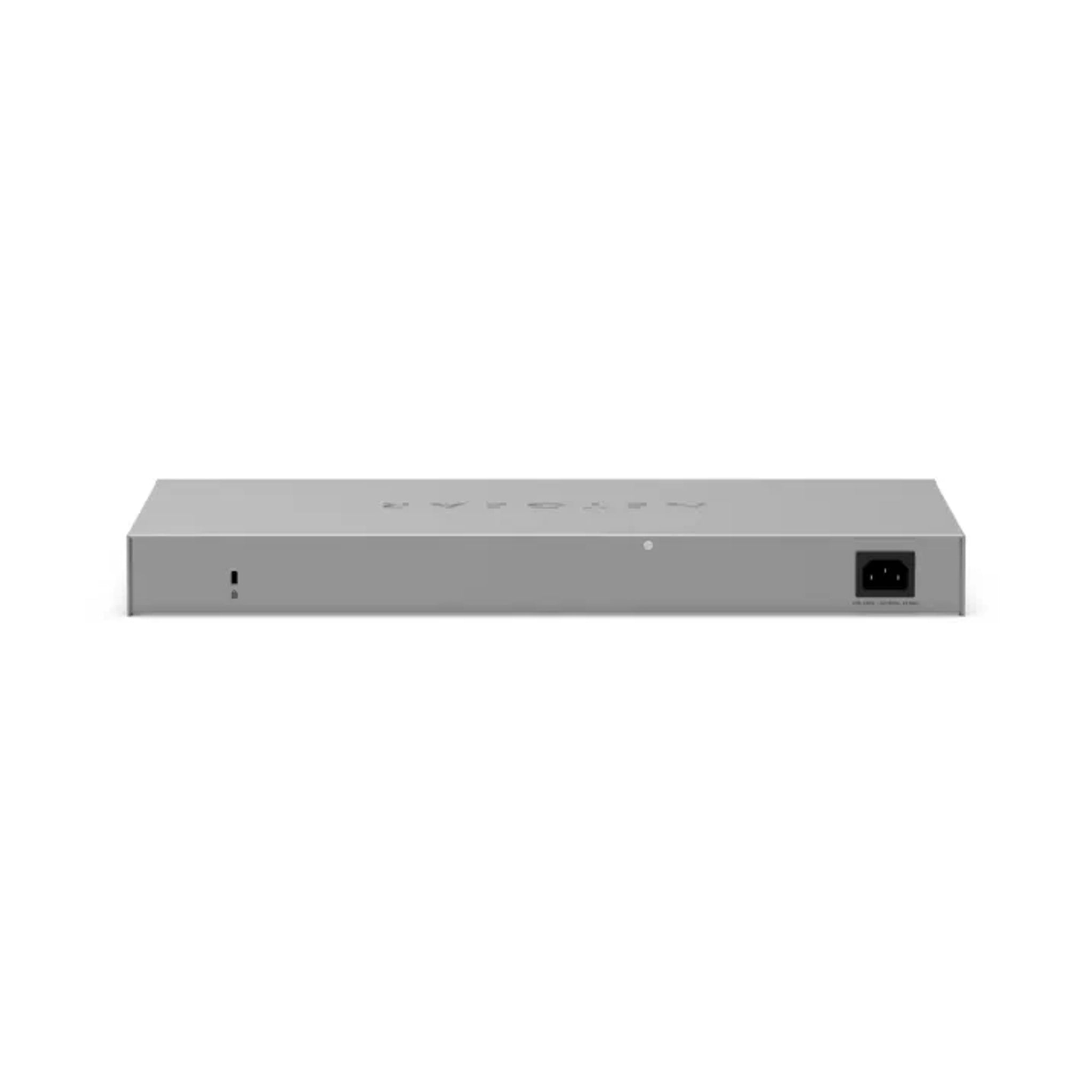

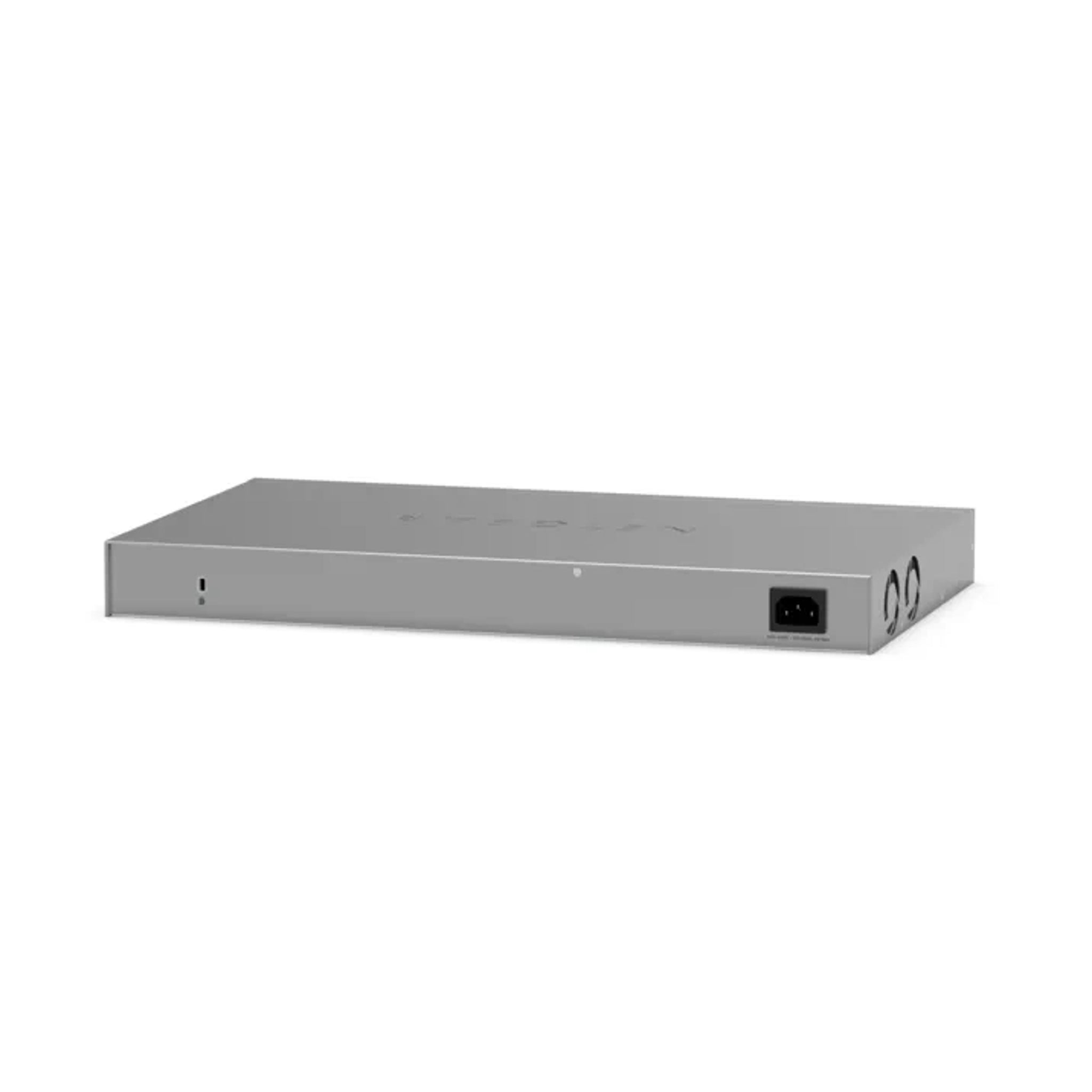

NETGEAR GS724TPv3 Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray, Blue (GS724TP300NAS)
Product overview
Total Network Solution helps you get the most out of your network \nEasily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Features
- Insight mobile app or Insight Cloud Portal
- Web browser-based management GUI
- Smart Lite CLI Software for multi-switch management
- IP Access List
- IPv6 Management
- Configurable Management VLAN
- SNMP v1/v2c and v3
- Standard MIBs (RFC1213, RFC1643, and RFC1493)
- RMON group 1, 2, 3, 9
- Firmware download (to switch) and upload (to server) through TFTP/HTTP
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS724TP-300NAS |
| D&H SKU | GS724TP300NAS |
| UPC / GTIN | 606449162677 |
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.6 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| Product color | Gray, Blue |
| Form factor | 1U |
| Rack mounting | Yes |
| Stackable | Yes |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Multicast support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p |
| Web-based management | Yes |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 120000" (0 - 3048 m) |
| Certification | CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC |
| Cables included | AC |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
| Fiber ethernet cabling technology | 1000BASE-X |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Power consumption (max) | 231.07 W |
| Power connector | DC-in jack |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 190 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Management protocols | SNMP v1/v2/v3 |
| DHCP features | DHCP client, DHCP snooping |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Width | 17.3" (440 mm) |
| Depth | 10.1" (257 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 6.94 lbs (3.15 kg) |
