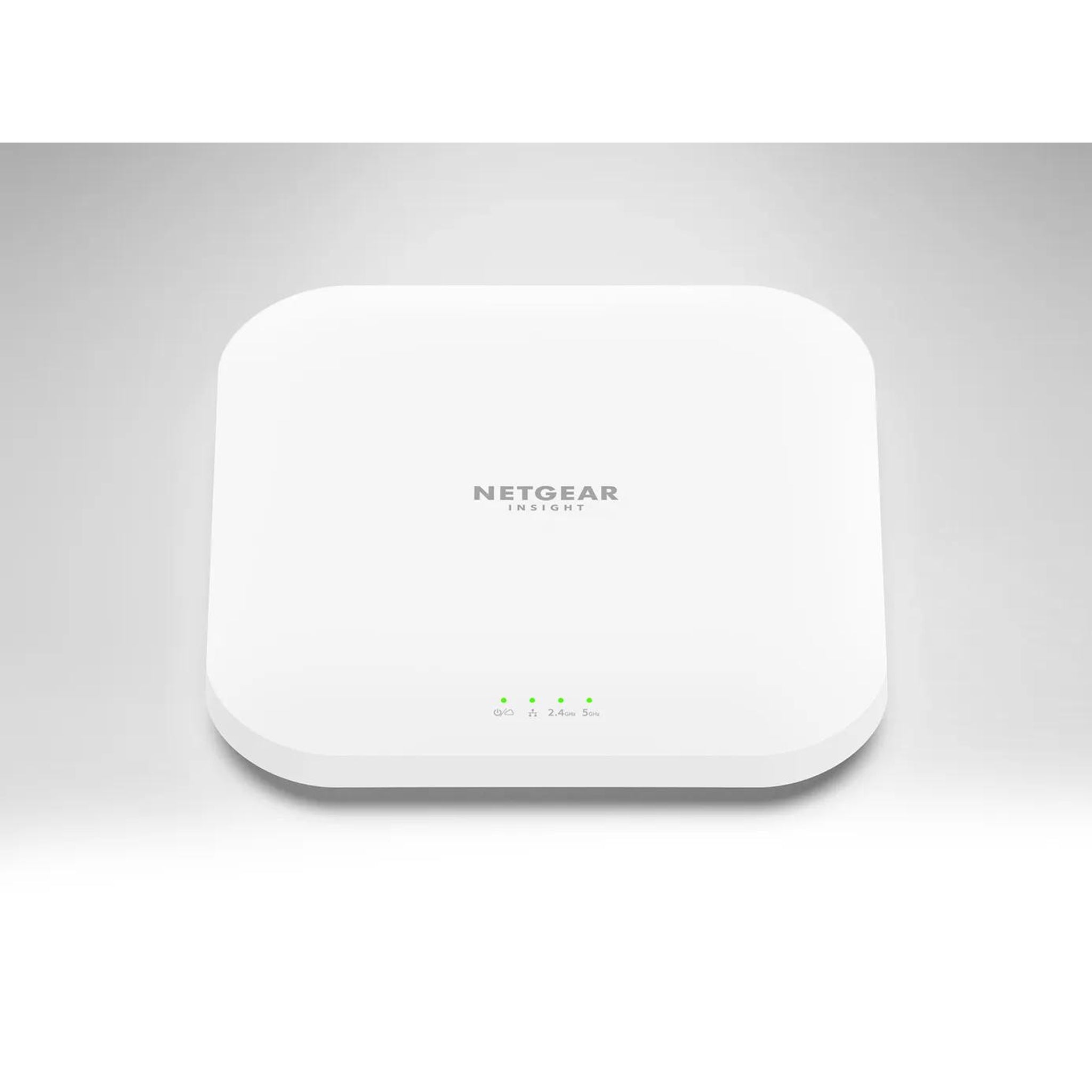

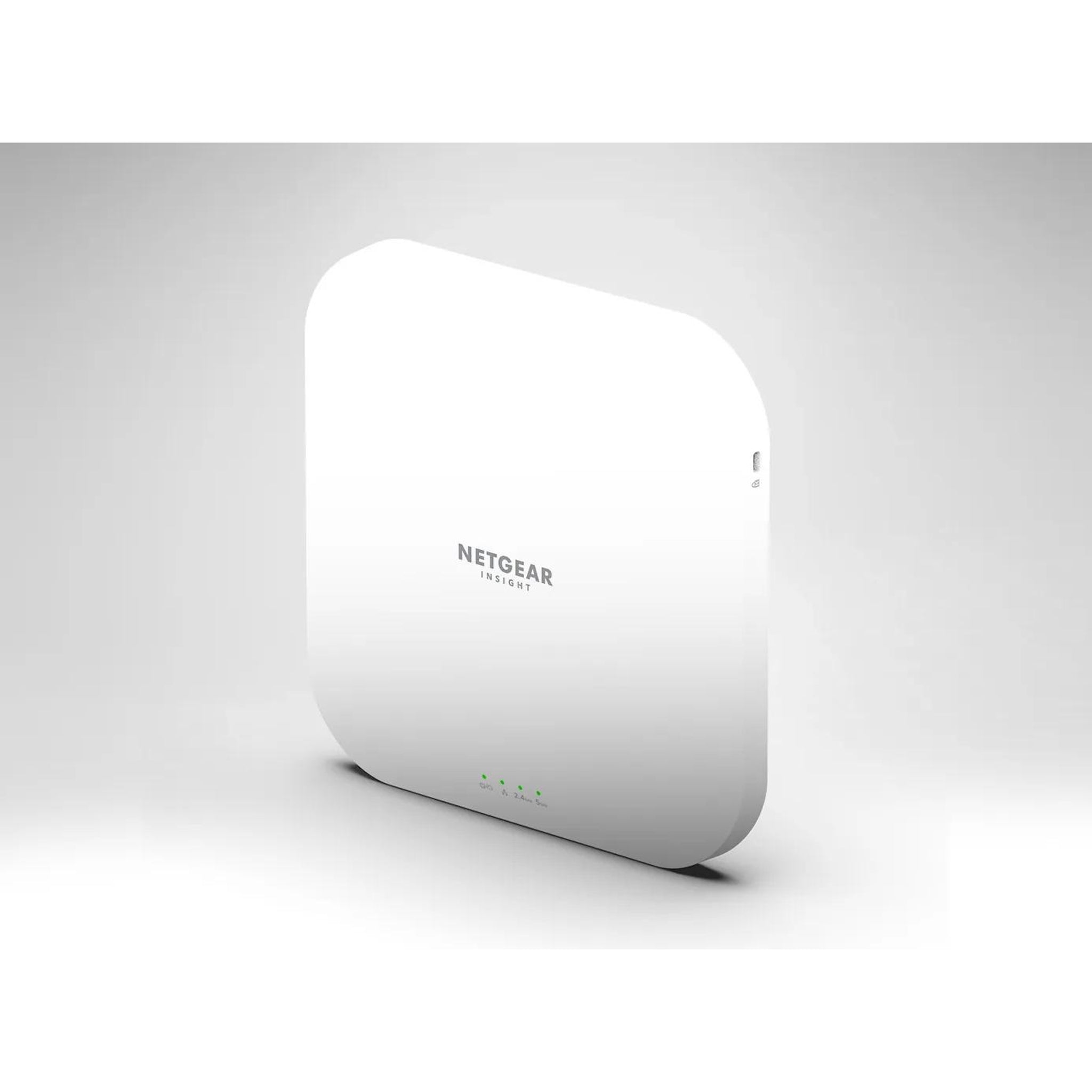

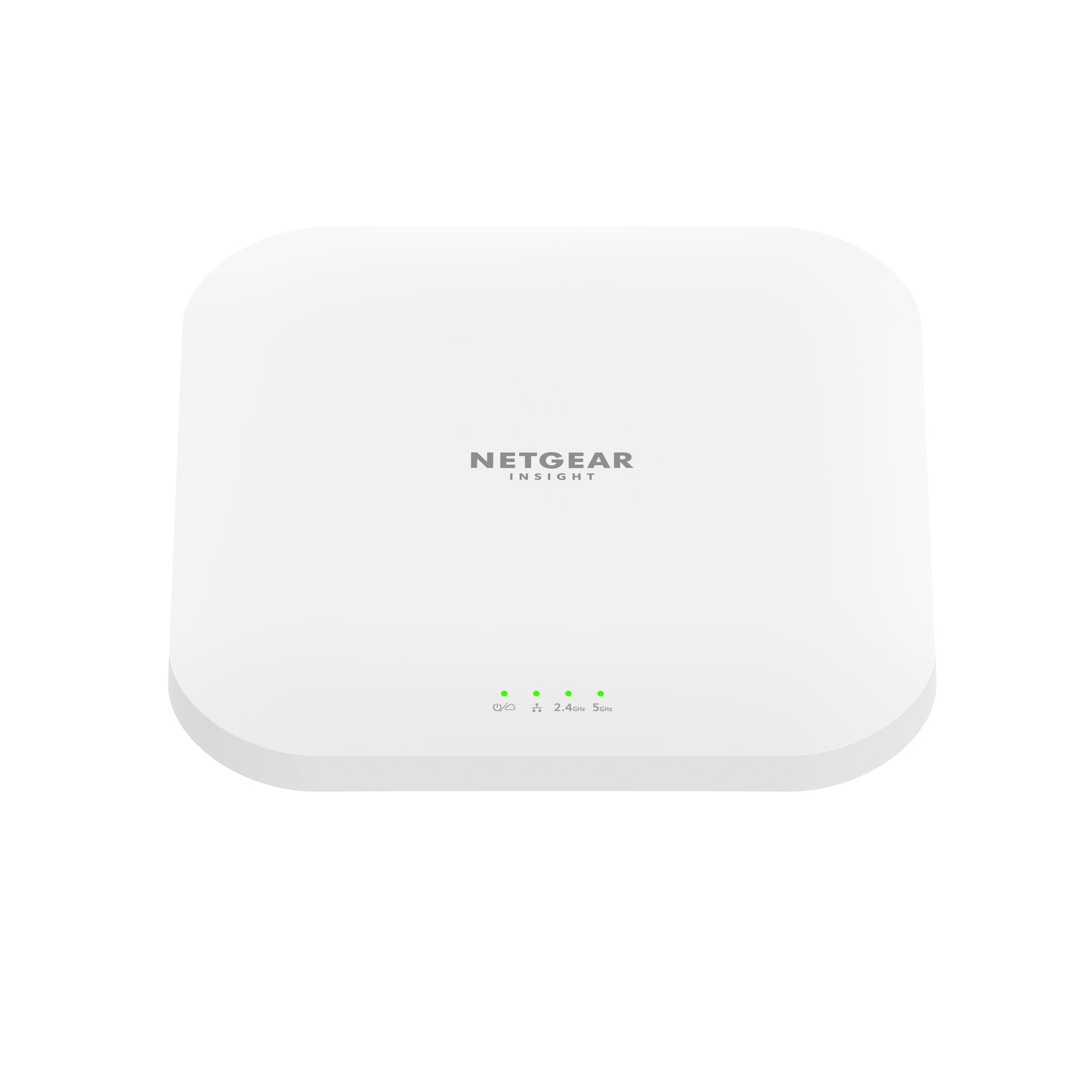

NETGEAR Insight Cloud Managed WiFi 6 AX3600 Dual Band Access Point (WAX620) 3600 Mbit/s White Power over Ethernet (PoE) (WAX620100NAS)
Product overview
Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.\n\nHigh-Performance Business WiFi\nFaster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band\n\nIdeal for High Density Environments\nUltimate WiFi performance for schools, hotels, restaurants, and conference centers.\n\nGreater Network Capacity\nEnjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.\n\nSeamless Wireless Mesh\nWire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.\n\nMulti-Gigabit Speed\nIncludes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring\n\nEasy Setup\nSet up, configure, and manage with NETGEAR Insight\n\nFlexible Mounting\nEasy to securely install on the wall of a suspended ceiling with the hardware included\n\nBusiness-Level Security\nWPA3 for the highest level of WiFi connection security\n\n8 Wireless Networks (SSIDs)\nSeparate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more\n\nSeparate VLANs\nKeep admin, employee, visitor, HR, Finance department networks safely separated from each other
Features
- Dual-band AX3600 WiFi 6
- 2.5G Ethernet uplink
- PoE+ power support
- Local web management and Insight cloud management
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | WAX620-100NAS |
| D&H SKU | WAX620100NAS |
| UPC / GTIN | 606449154504 |
| Antenna gain level (max) | 4.3 dBi |
| Product color | White |
| Placement | Ceiling, Wall |
| Output voltage | 12 V |
| Output current | 2.5 A |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Security algorithms | EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3 |
| Harmonized System (HS) code | 85176990 |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Antenna type | Internal |
| Maximum data transfer rate | 3600 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at |
| Modulation | OFDM |
| Web-based management | Yes |
| VLAN support | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| LED indicators | LAN, Power, WLAN |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| DC-in jack | Yes |
| Power over Ethernet (PoE) | Yes |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Width | 8.1" (205.7 mm) |
| Depth | 8.1" (205.7 mm) |
| Height | 1.35" (34.3 mm) |
| Weight | 27.6 oz (783 g) |
