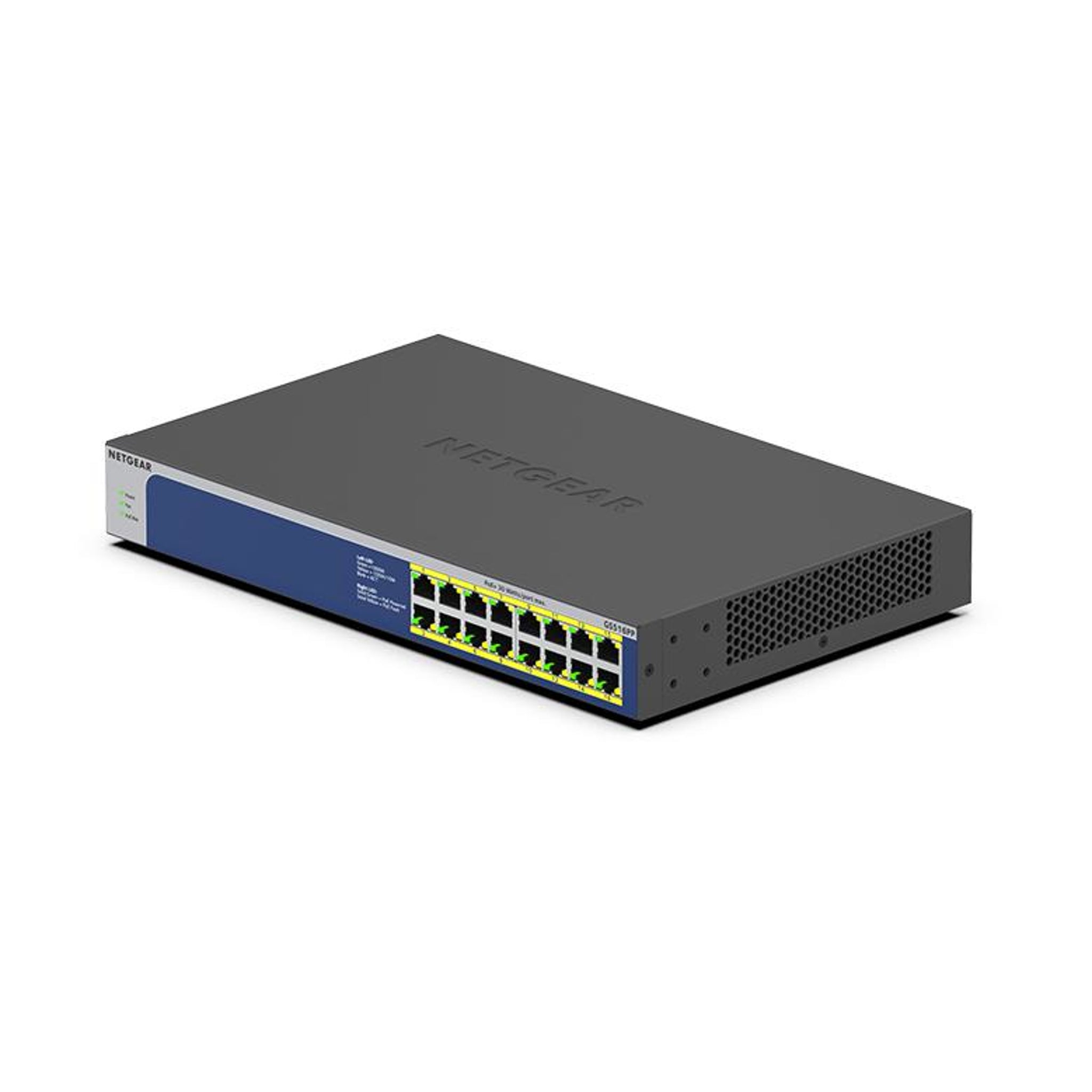

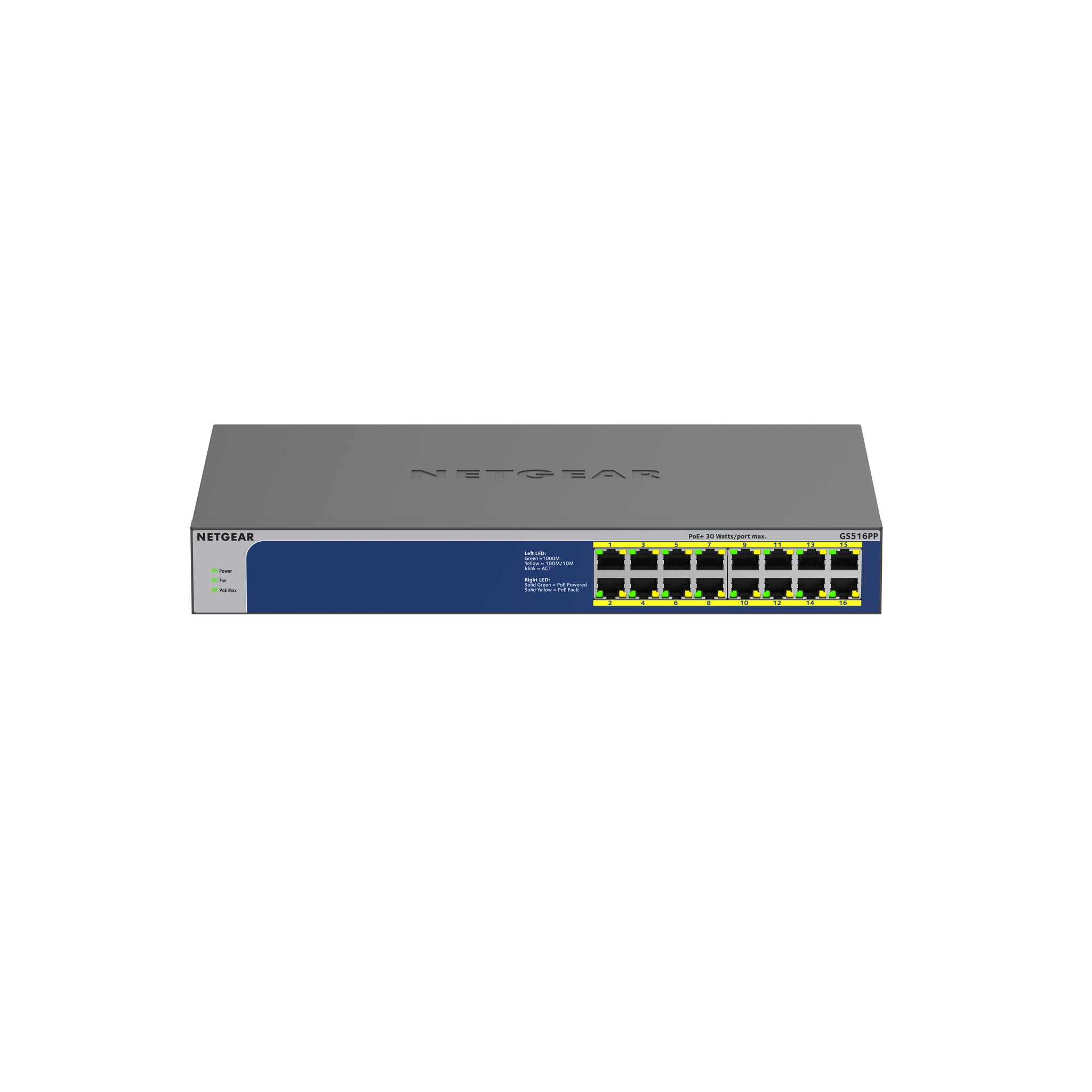

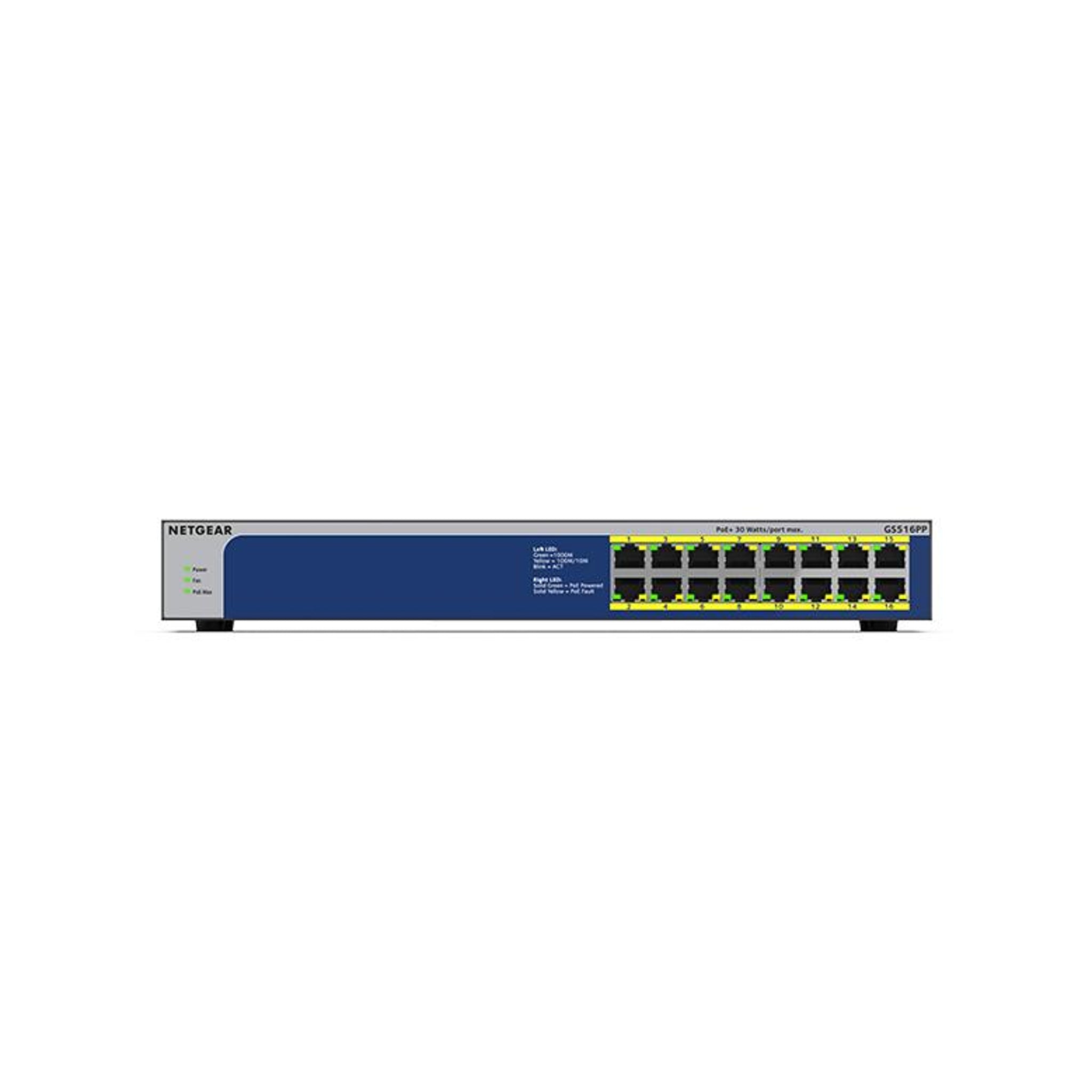

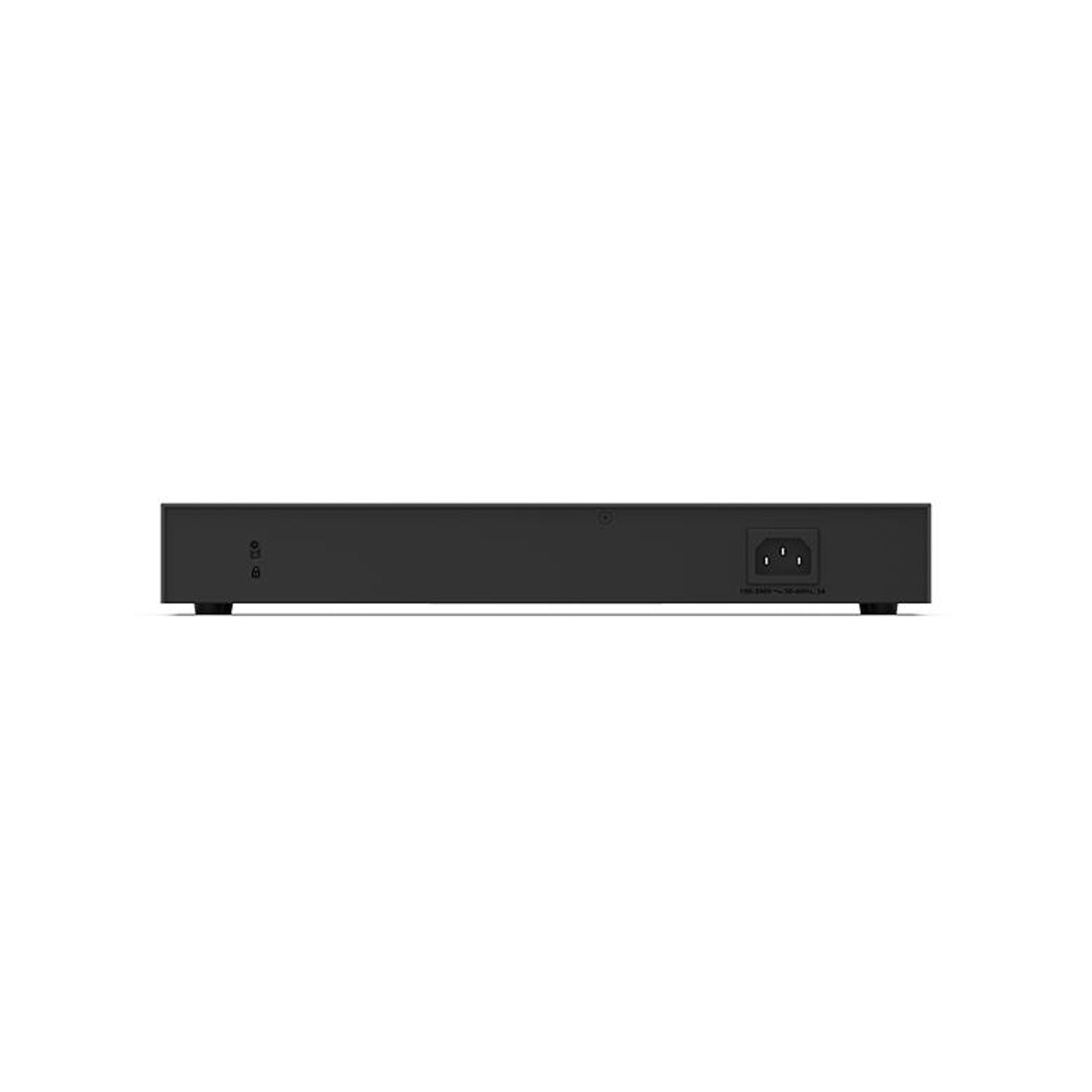

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue, Gray (GS516PP100NAS)
Product overview
Simple plug-and-play, with more than enough to power the entire network 16 high-power PoE+ ports with a large budget to keep your devices always-ready.\n\n PLUG-AND-PLAY: \nSimple set up with no software to install or configuration needed and zero maintenance\n\n FULL PERFORMANCE: \nNon-blocking switching architecture for maximum throughput at wire speed\n\n POWER-OVER-ETHERNET: \n16 PoE+ ports with 260W total power budget to power wireless AP, IP Cameras, IP Phones and much more.\n\n POWER AUTO-BALANCE AND ALLOCATION \nNETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs.\n\n SILENT OPERATION: \nThe fanless design means zero added noise wherever its located, making it ideal for your home or business environment\n\n ENERGY EFFICIENT: \nDesigned to optimize power usage lowering its cost to operate.\n\n RUGGED METAL CASING \nDurable desktop case for longevity\n\n VERSATILE MOUNTING OPTIONS: \nSupports desktop or rackmount placement, and includes all mounting hardware in the box\n\n STANDARDS-BASED DESIGN \nEnsure interoperability with any standards-based PDs
Features
- 16 Gigabit Ethernet ports
- Plug-and-play setup without configuration
- 16 PoE+ ports with a 260W total power budget
- Desktop installation
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS516PP-100NAS |
| D&H SKU | GS516PP100NAS |
| UPC / GTIN | 606449149241 |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 12 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Product color | Blue, Gray |
| Form factor | 1U |
| Housing material | Metal |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Mean time between failures (MTBF) | 2415333.9 h |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| Full duplex | Yes |
| Half duplex | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption (max) | 316.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 260 W |
| Width | 13" (330 mm) |
| Depth | 8.15" (207 mm) |
| Height | 1.69" (43 mm) |
| Weight | 5.07 lbs (2.3 kg) |
