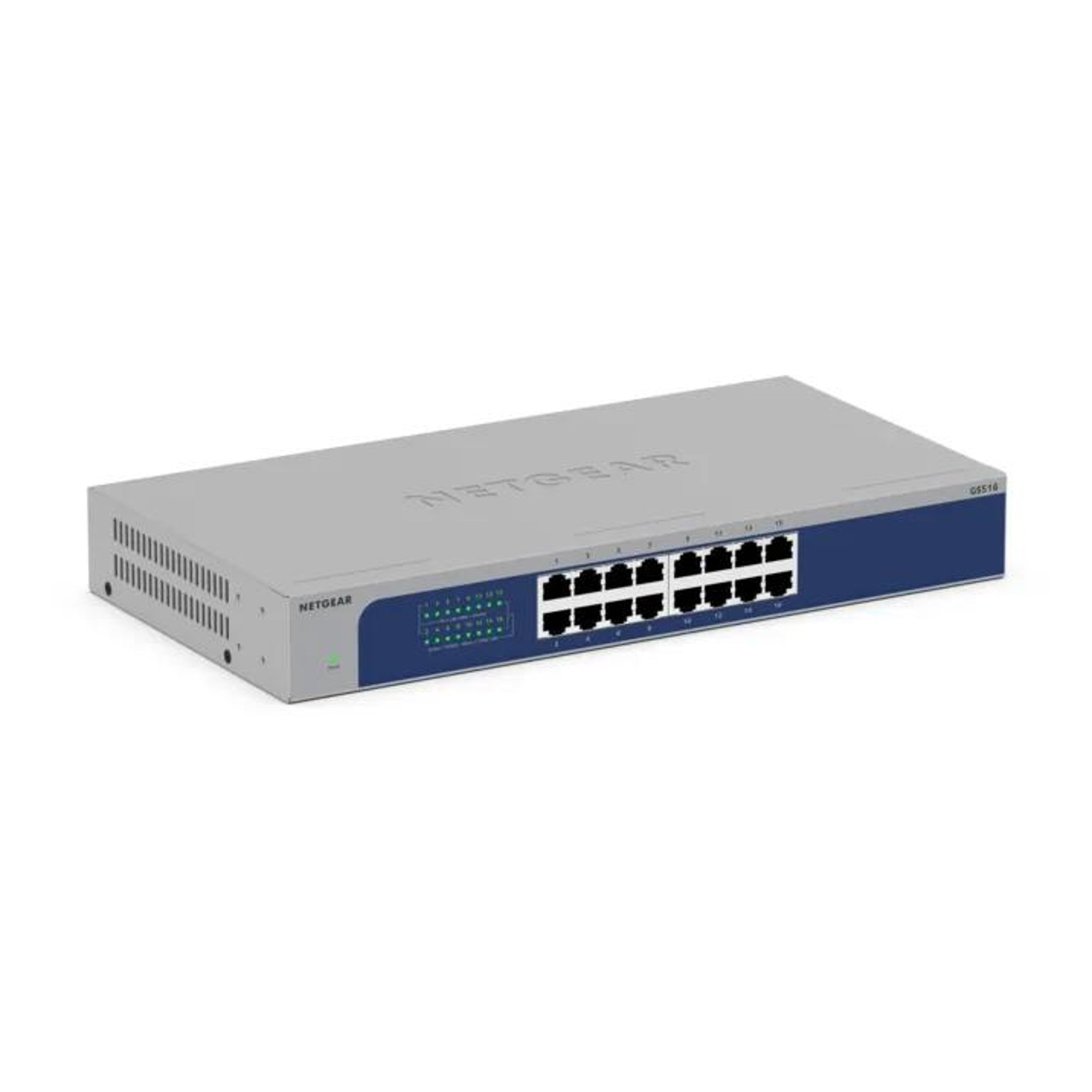

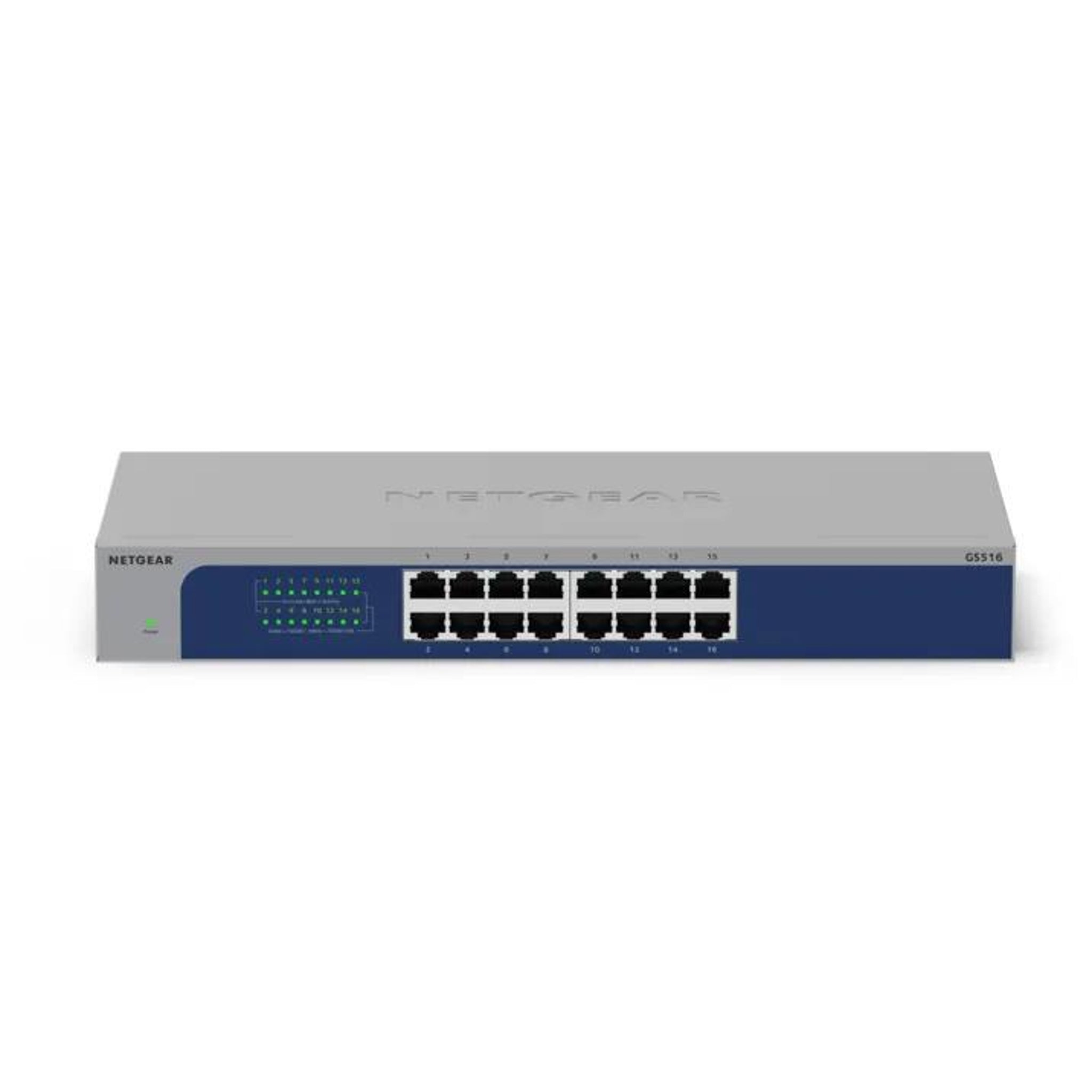

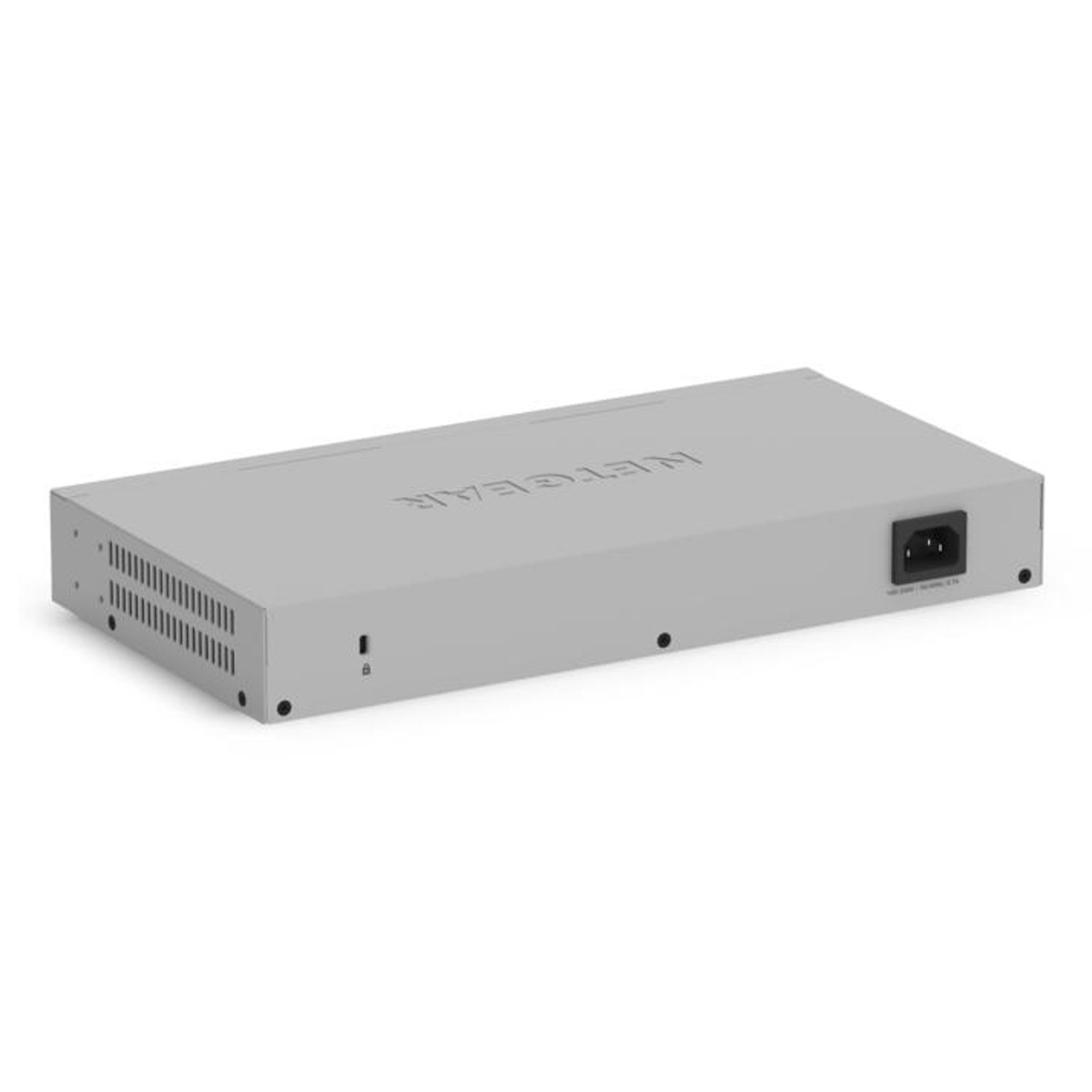

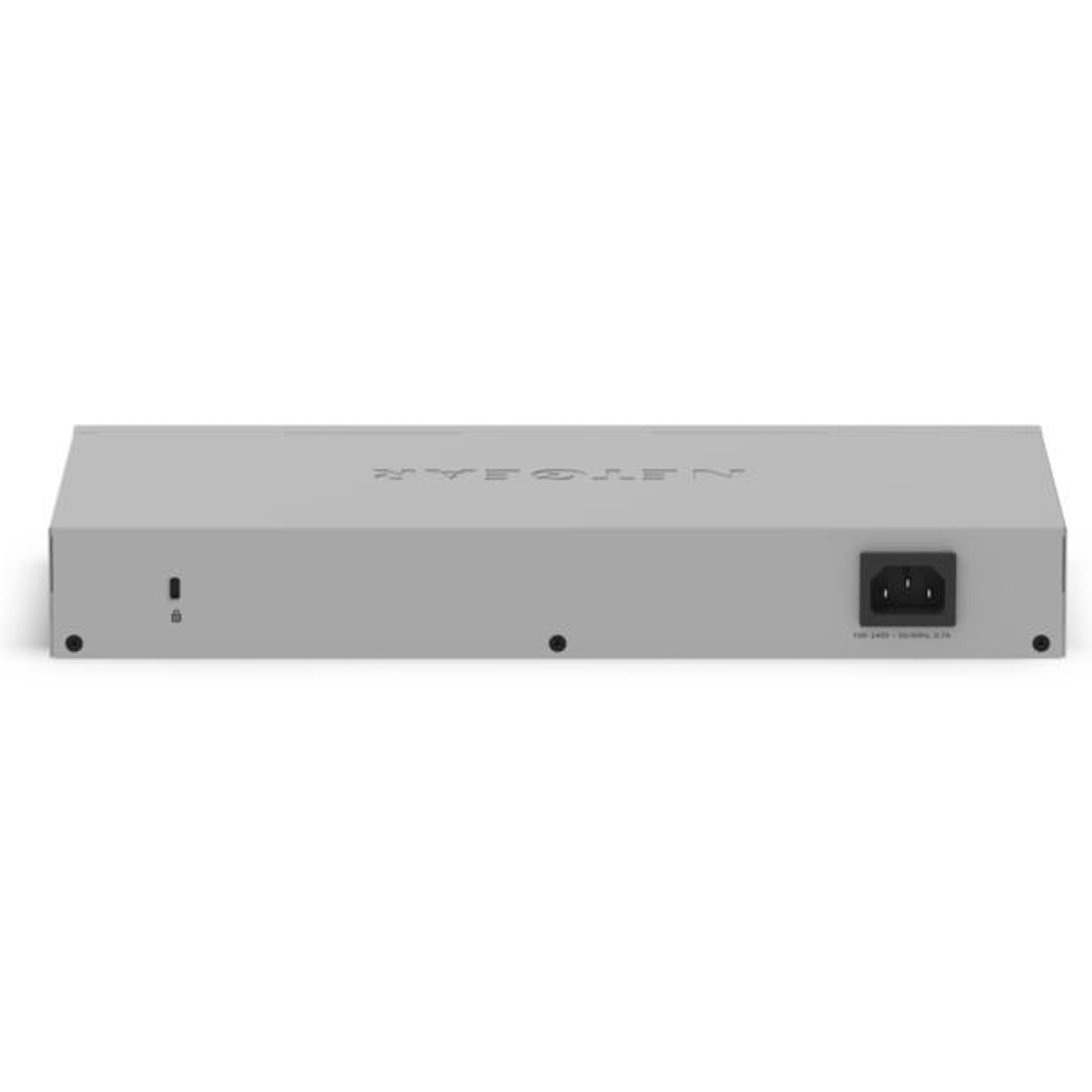

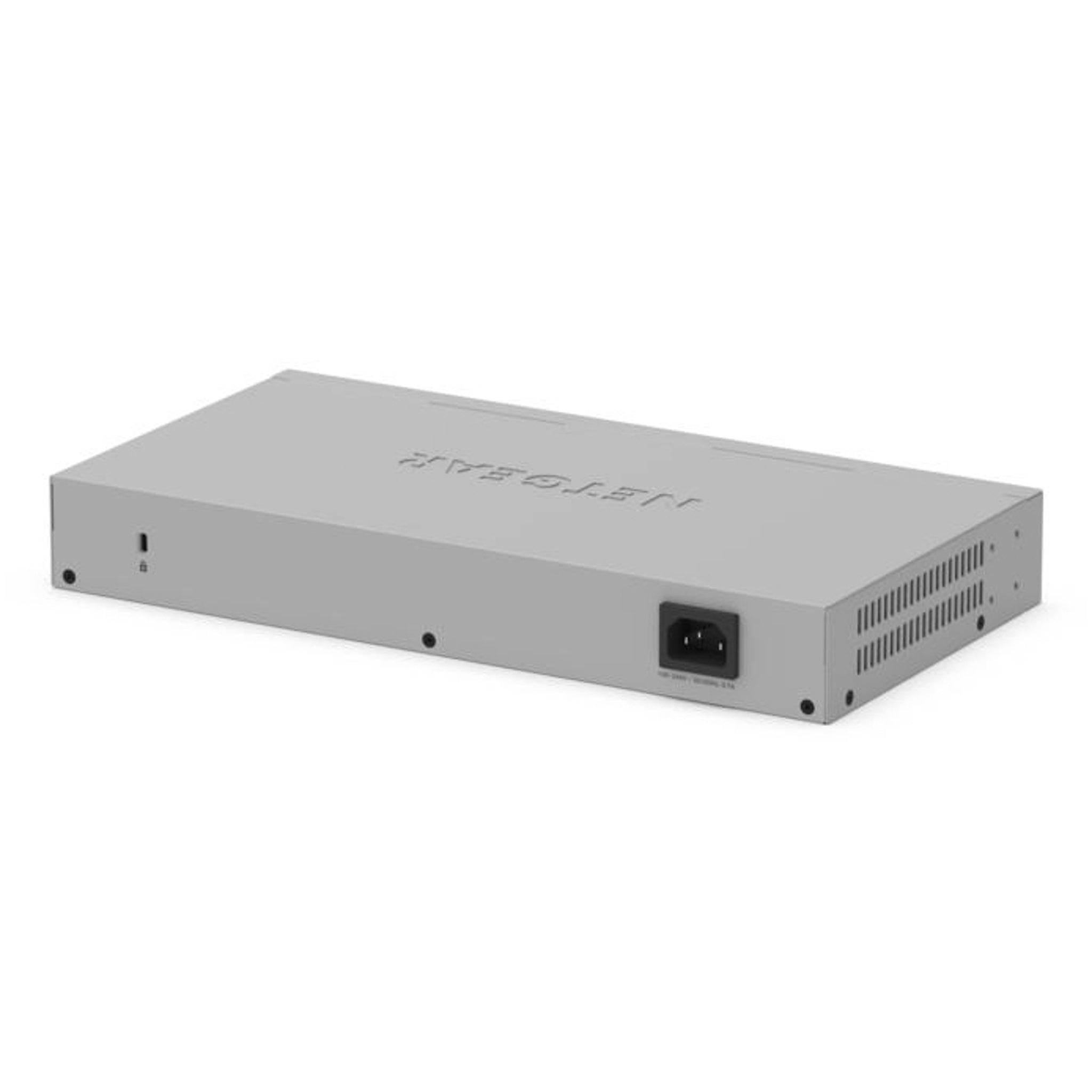

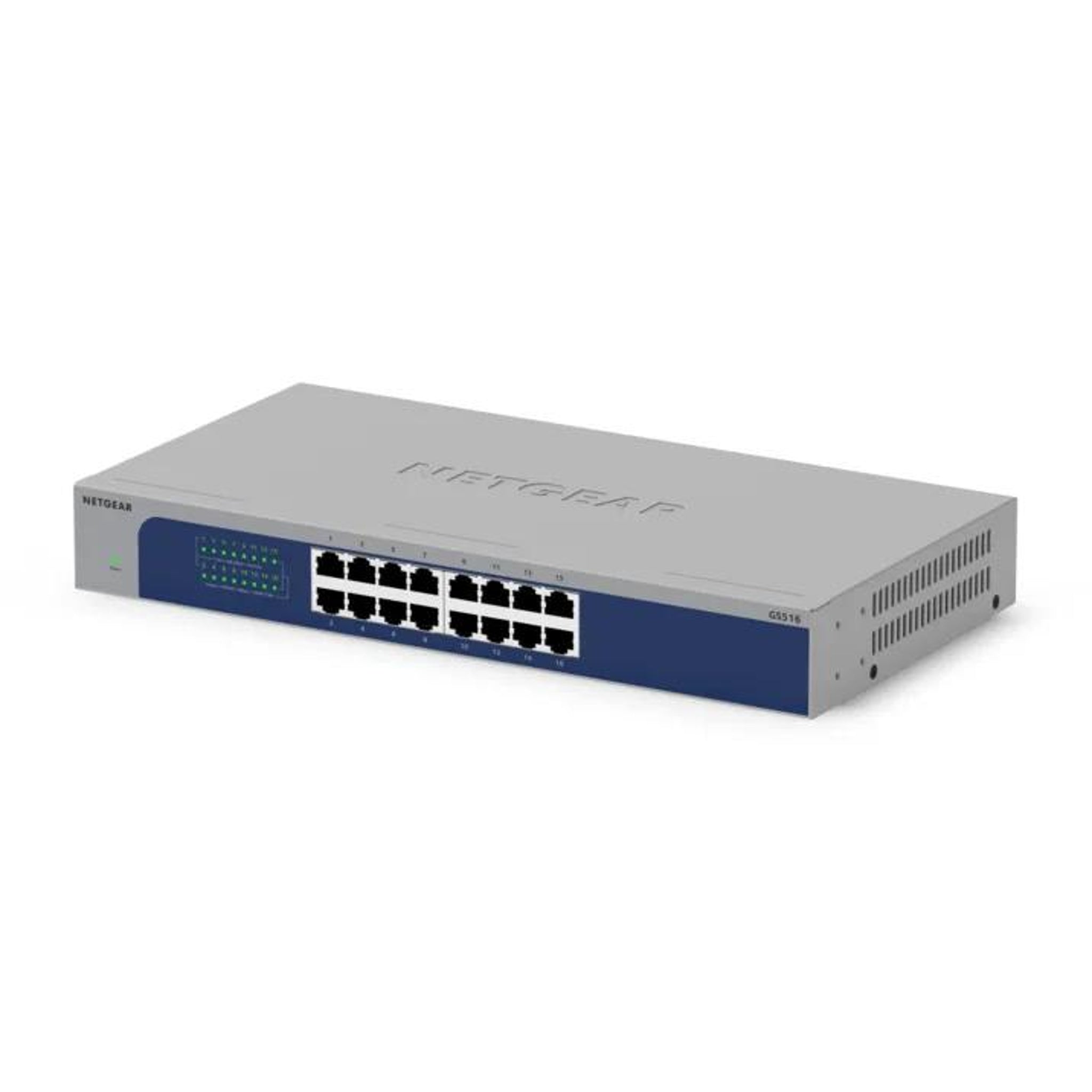

NETGEAR GS516v3 Unmanaged Gigabit Ethernet (10/100/1000) Gray (GS516300NAS)
Product overview
RELIABLE PERFORMANCE \nSuperior network performance at non-blocking rate delivers true gigabit speed with no compromise\n\n ENERGY EFFICIENT \nEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected\n\n PLUG-AND-PLAY \nNo software to install. No configuration needed. Zero maintenance required\n\n SILENT OPERATION \nThe fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments\n\n VERSATILE MOUNTING OPTIONS \nInstall your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box\n\n METAL CASE \nDurable and rugged case for long-lasting performance
Features
- 16 Gigabit Ethernet ports
- Plug-and-play setup without configuration
- Energy Efficient Ethernet
- Desktop installation
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | GS516-300NAS |
| D&H SKU | GS516300NAS |
| UPC / GTIN | 606449164558 |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), ISED, KC, RCM, UKCA, VCCI |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 15 µs |
| Jumbo frames support | Yes |
| Latency (10-100 Mbps) | 30 µs |
| Latency (10 Gbps) | 35 µs |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Product color | Gray |
| Housing material | Metal |
| Rack mounting | Yes |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u |
| 10G support | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| LED indicators | Activity, Link, Power, Speed |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption (max) | 10 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Width | 12.9" (328 mm) |
| Depth | 6.65" (169 mm) |
| Height | 1.69" (43 mm) |
| Weight | 3.28 lbs (1.49 kg) |
